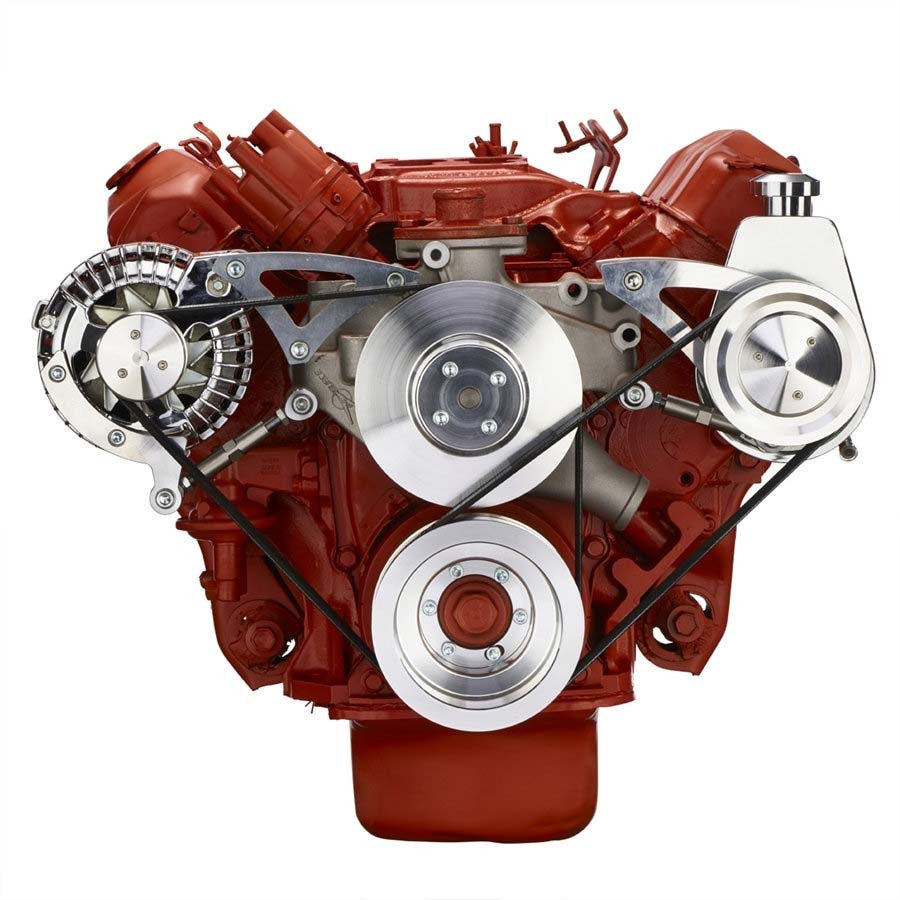

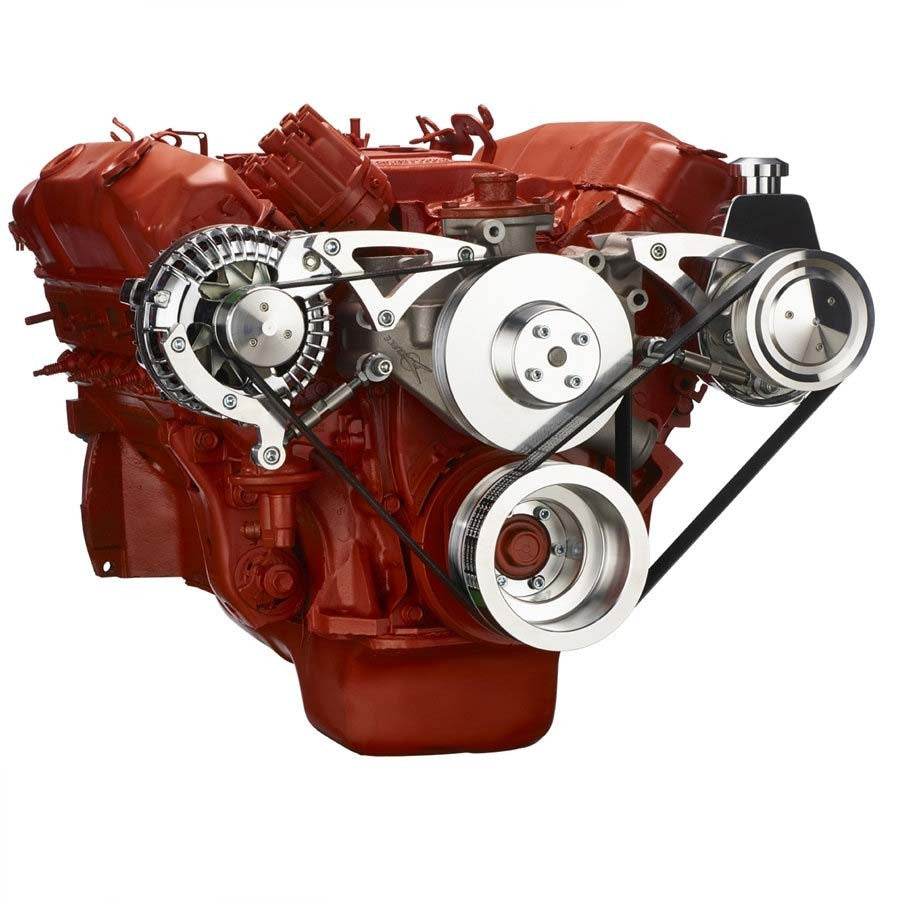

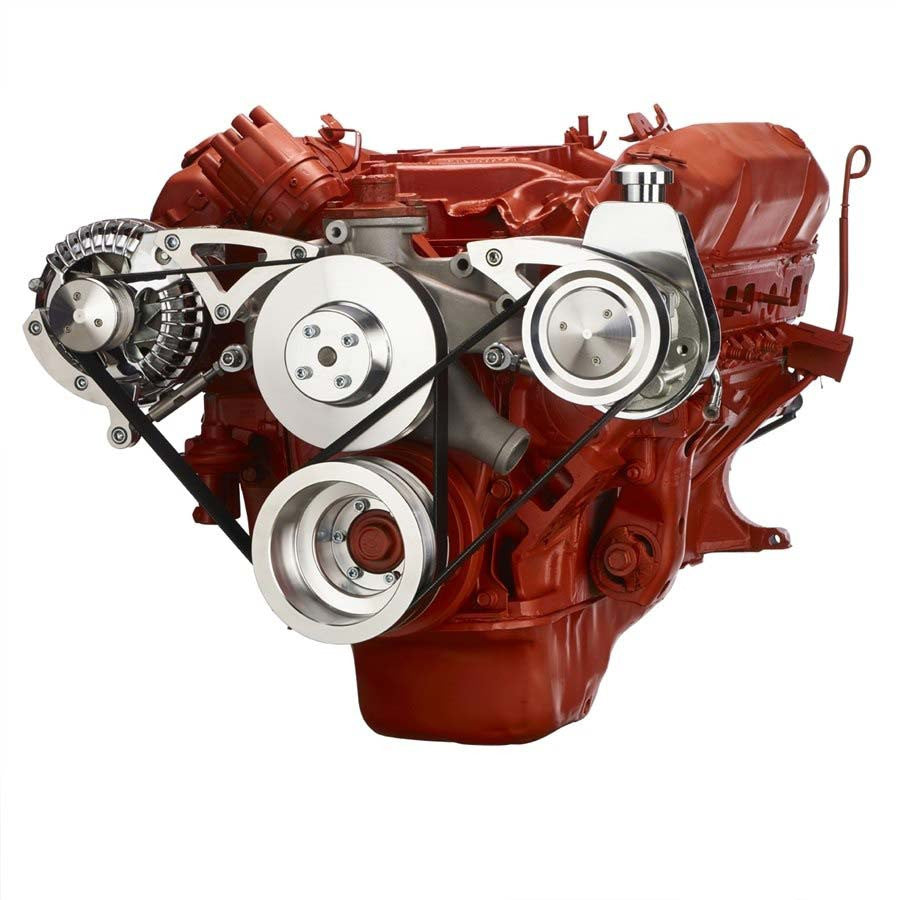

The CVF Racing BEAST alternator and power steering kit moves a Chrysler big block 383, 400, 426 and 440 to an 8 rib serpentine belt drive, finished here in polished. CVF uses 8 rib pulleys in place of the more common 6 rib layout, stating that the wider belt grips better, stretches less and resists slipping.
The kit provides the pulleys and mounting parts listed below. The power steering pump must be a Saginaw unit with a keyway shaft; CVF states it will not fit a Federal Mogul pump or a press fit Saginaw pump.
Specifications:
- Finish: Polished
- Belt type: 8 rib serpentine
- Accessories supported: Alternator and power steering
- Alternator position: Passenger side, mid mount
- Power steering pump: Saginaw with keyway shaft
- Water pump type: Mechanical
- Engines: Chrysler big block 383, 400, 426 and 440
- Part number: 440-SERPENTINE-PS
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (2 belt)
- Power steering pulley (1 belt)
- Alternator pulley (1 belt)
- Alternator bracket for a GM alternator or for a Chrysler style alternator
- Power steering bracket
- Alternator fan (GM alternators only; Chrysler alternators use an internal fan)
Not Included: The water pump, alternator and power steering pump are not included. Water pumps, housings, alternators, pumps, nose caps and thermostat housings offered as add-ons on the CVF page are sold separately.
Application Notes:
- Requires a Saginaw power steering pump with a keyway shaft. CVF states it will not fit a Federal Mogul pump or a press fit Saginaw pump.

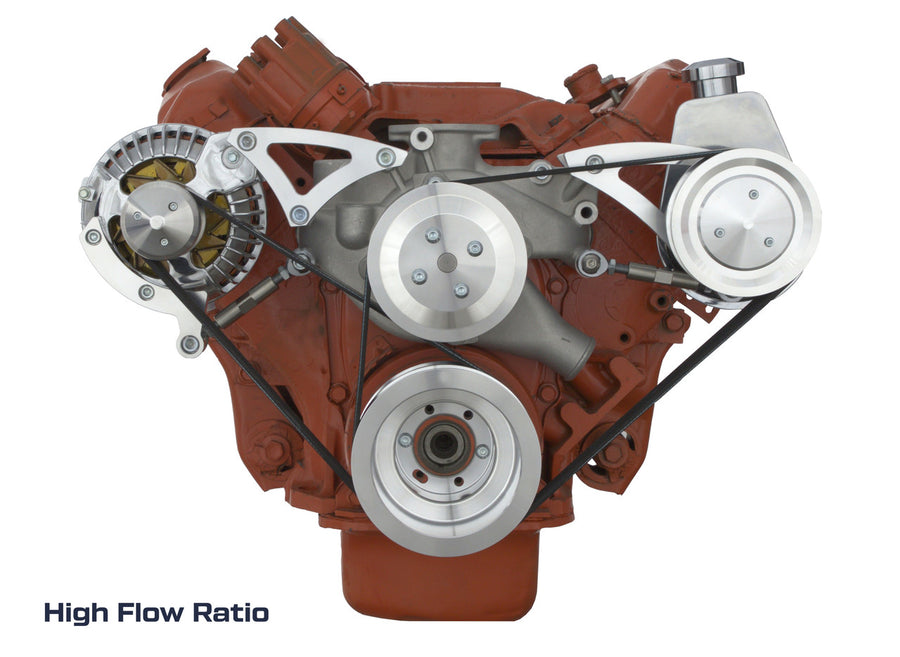

- Additional choices for this kit (power steering pulley, alternator, engine, pulley ratio and belts) are selected separately when ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does the CVF Racing 440-SERPENTINE-PS kit fit?
It is made for Chrysler big block 383, 400, 426 and 440 engines.
What power steering pump does it require?
It requires a Saginaw pump with a keyway shaft. It will not fit a Federal Mogul pump or a press fit Saginaw pump.
Is the alternator or pump included?
No. The water pump, alternator and power steering pump are supplied by the builder.
Does this kit support A/C?
No. This version runs the alternator and power steering only.
