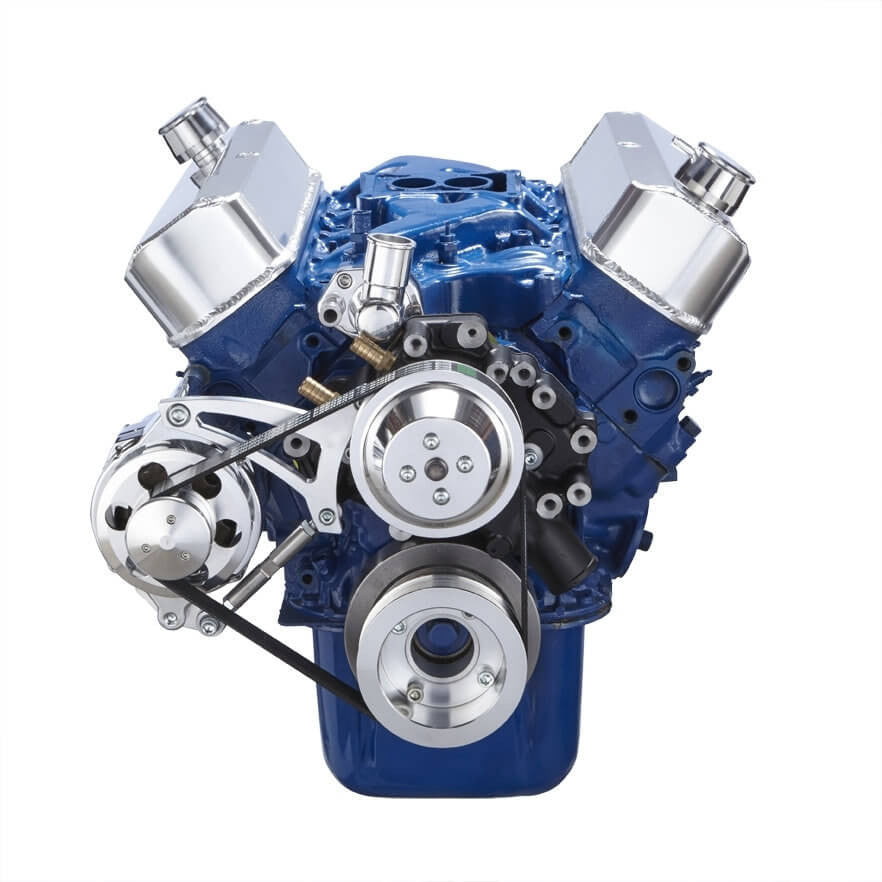

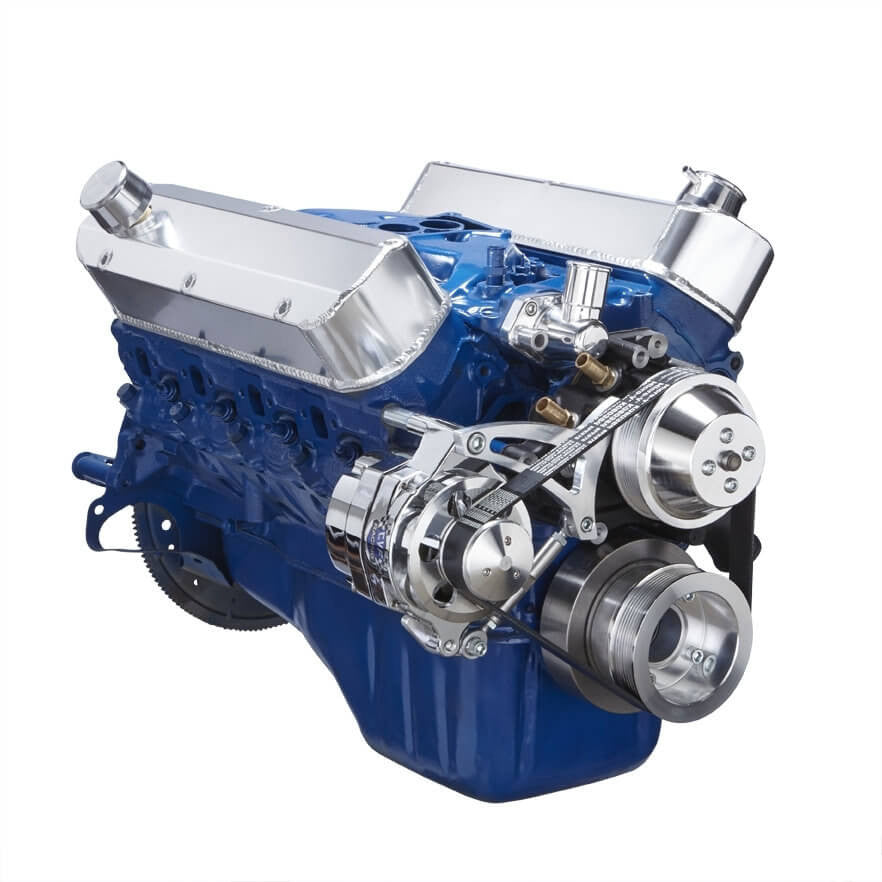

This CVF Racing BEAST kit converts an alternator only Ford 289, 302 or 351W small block to an 8-rib serpentine belt. It uses single belt water pump, crank and alternator pulleys with a billet aluminum alternator bracket mounted mid height on the passenger side.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. It works with a standard rotation mechanical water pump.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: Alternator only
- Alternator position: Mid mount, passenger side
- Water pump: Mechanical, standard rotation
- Bracket: Billet aluminum
- Finish: Polished
- Engine: Ford 289, 302 and 351W small block
- Part number: 302-SERPENTINE-ALT
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (1 belt)
- Alternator pulley (1 belt)
- Billet aluminum alternator bracket
- ALTFAN universal alternator fan
Not Included: The water pump and damper are not included, and the alternator is sold separately.
Application Notes:
- Belts are a separate ordering choice.
- CVF offers a water pump and alternator separately.
- Additional choices for this kit (engine, water pump, damper and belts) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does the CVF Racing 302-SERPENTINE-ALT include?
It includes 1 belt water pump, crank and alternator pulleys, a billet aluminum alternator bracket and an ALTFAN universal alternator fan.
Is this kit for power steering or A/C?
No. It is an alternator only serpentine conversion.
Is the alternator included?
No. The alternator is sold separately, and the water pump and damper are not included.
Which water pump does it work with?
It works with a standard rotation mechanical water pump, with driver's side or passenger side lower hose chosen when ordering.
