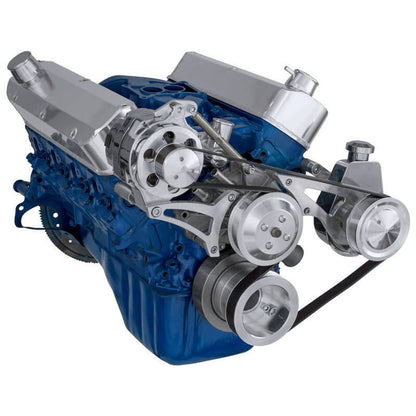

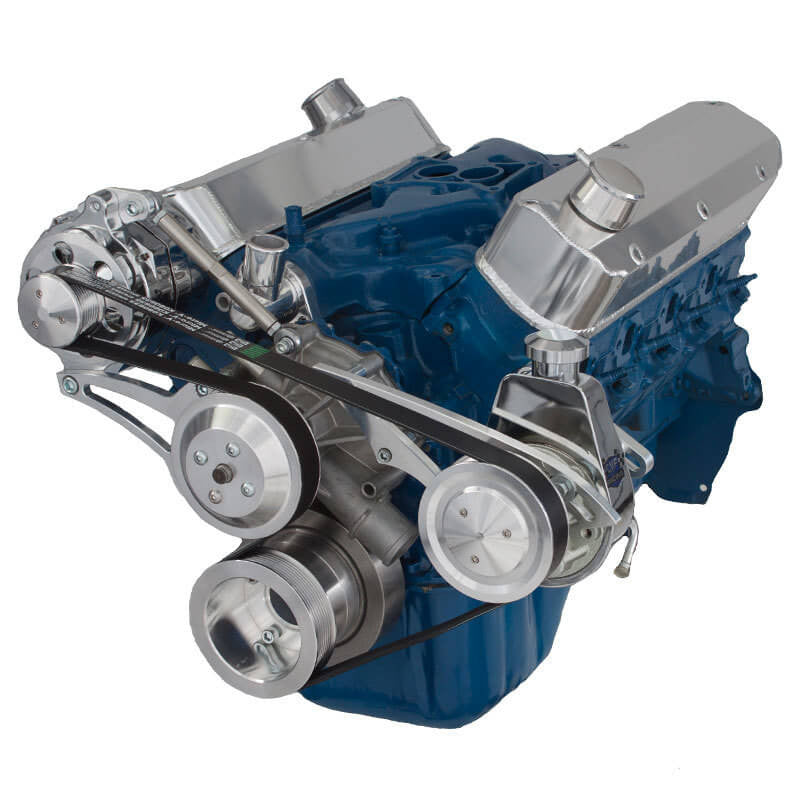

This CVF Racing BEAST kit converts the alternator and a Saginaw power steering pump on a Ford 5.0L or 5.8L with the 1986 to 1993 reverse rotation water pump to an 8-rib serpentine belt. The pulleys and brackets are CNC machined from billet aluminum.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. The alternator mounts high on the passenger side.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: Alternator and power steering
- Material: Billet aluminum, CNC machined
- Alternator position: High, passenger side
- Power steering pump: Saginaw P series (not included)
- Water pump: 1986 to 1993 reverse rotation (not included)
- Finish: Polished
- Engine: Ford 5.0L and 5.8L
- Part number: 5.0L-SERPENTINE-PS
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (1 belt)
- Alternator pulley (1 belt)
- Power steering pulley (1 belt)
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- ALTFAN universal alternator fan
Not Included: The power steering pump, water pump, alternator and damper are not included.
Application Notes:
- Requires the 1986 to 1993 reverse rotation water pump and timing chain cover; it will not work with the 1994 to 1995 water pump.
- Requires a 90 degree thermostat housing.
- CVF's description calls for a Saginaw P series pump with keyway shaft; the order form also offers a 3/4" press fit power steering pulley.
- Aftermarket balancers may need an additional crank spacer.
- Belts are a separate ordering choice.
- Additional choices for this kit (power steering pulley, engine, damper and belts) are selected separately when ordering.
Additional Application Note: CVF lists this kit for Ford 5.0L and 5.8L engines with the 1986 to 1993 reverse rotation water pump and timing chain cover, and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is included with the CVF Racing 5.0L-SERPENTINE-PS?
It includes water pump, crank, alternator and power steering pulleys, billet aluminum alternator and power steering brackets, and an ALTFAN universal alternator fan.
Which power steering pump does it use?
It uses a Saginaw P series pump, which is sold separately.
Does it work with a 1994 to 1995 water pump?
No. It requires the 1986 to 1993 reverse rotation water pump and timing chain cover.
Is a thermostat housing needed?
Yes. CVF lists a 90 degree thermostat housing as a requirement.
