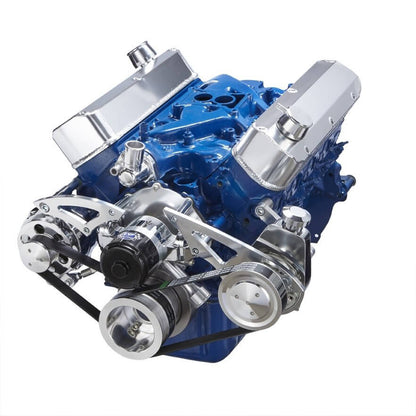

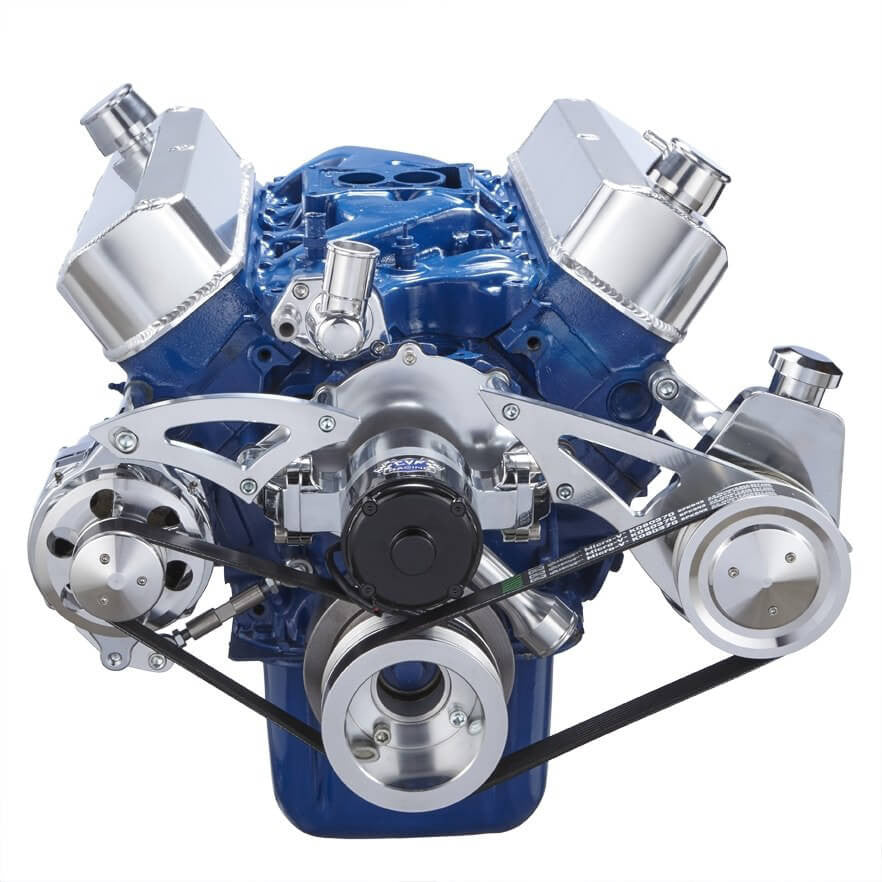

This CVF Racing BEAST kit runs the alternator and a Saginaw P series power steering pump on an 8-rib serpentine belt for a Ford 289, 302 or 351W small block with an electric water pump.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. The alternator mounts mid height on the passenger side.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: Alternator and power steering
- Water pump type: Electric (not included)
- Power steering pump: Saginaw P series, keyway or press fit shaft (not included)
- Alternator position: Mid mount, passenger side
- Brackets: Billet aluminum
- Finish: Polished
- Engine: Ford 289, 302 and 351W small block
- Part number: 302-SERPENTINE-PS-EWP
Kit Includes:
- Crank pulley (1 belt)
- Power steering pulley (1 belt)
- Alternator pulley (1 belt)
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- ALTFAN universal alternator fan
Not Included: The power steering pump, electric water pump, alternator and damper are not included.
Application Notes:
- Belts are a separate ordering choice.
- CVF offers an electric water pump, Saginaw pump and alternator separately.
- Additional choices for this kit (engine, damper, power steering pump and belts) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is the CVF Racing 302-SERPENTINE-PS-EWP for?
It converts the alternator and power steering to an 8-rib serpentine belt on a Ford 289, 302 or 351W running an electric water pump.
Which power steering pump does it use?
It uses a Saginaw P series pump, with keyway or press fit shaft chosen when ordering.
What comes in the kit?
The kit includes crank, power steering and alternator pulleys, billet alternator and power steering brackets, and an ALTFAN fan.
Is a water pump included?
No. The electric water pump, power steering pump, alternator and damper are sold separately.
