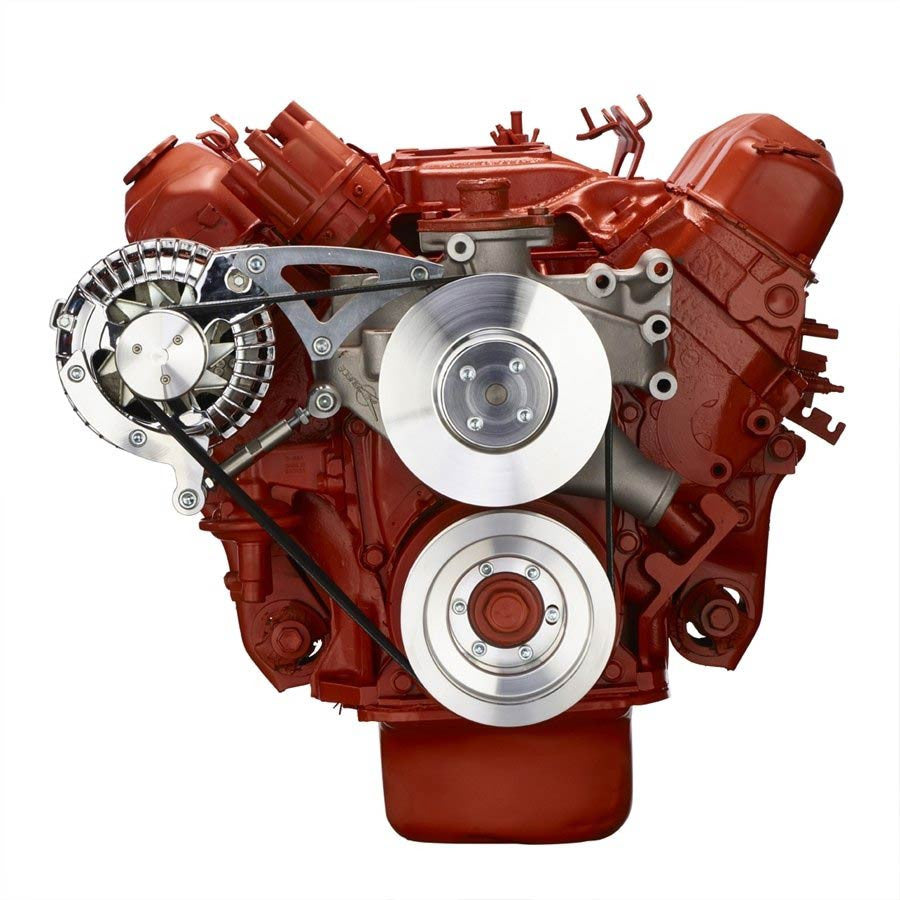

This polished CVF Racing BEAST kit switches a Chrysler big block 383, 400, 426 and 440 to an 8 rib serpentine drive for the alternator alone. CVF uses 8 rib pulleys in place of the more common 6 rib layout, stating that the wider belt grips better, stretches less and resists slipping.
It works with an original or aftermarket clockwise rotation water pump, so the existing pump can stay. The kit is offered in variants for a Chrysler round or square back alternator or a GM 1-wire alternator, for 426/440 or 383/400 engines, and with or without premium 8 rib serpentine belts.
Specifications:
- Finish: Polished
- Belt type: 8 rib serpentine
- Accessories supported: Alternator only
- Alternator position: Passenger side, mid mount
- Alternator style: Chrysler round or square back, or GM 1-wire (variant)
- Engine: 426/440 or 383/400 (variant)
- Belts: Included or not included (variant)
- Water pump: Original or aftermarket, clockwise rotation, mechanical
- Engines: Chrysler big block 383, 400, 426 and 440
- Part number: 440-SERPENTINE-ALT
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (1 belt)
- Alternator pulley (1 belt)
- Alternator bracket for a GM alternator or for a Chrysler style alternator
- Alternator fan (GM alternators only; Chrysler alternators use an internal fan)
Not Included: The water pump and alternator are not included. Water pumps, housings, alternators, nose caps and thermostat housings offered as add-ons on the CVF page are sold separately.
Application Notes:
- Uses an original or aftermarket clockwise rotation water pump.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does the CVF Racing 440-SERPENTINE-ALT kit fit?
It fits Chrysler big block 383, 400, 426 and 440 engines, with separate variants for 426/440 and 383/400.
Does this kit need a special water pump?
No special pump is needed. It uses an original or aftermarket water pump with clockwise rotation.
Which alternators work with it?
Variants are offered for a Chrysler round or square back alternator or a GM 1-wire alternator. The alternator is not included.
Are belts included?
Belts depend on the variant chosen; CVF offers the kit with premium 8 rib serpentine belts or without belts.
