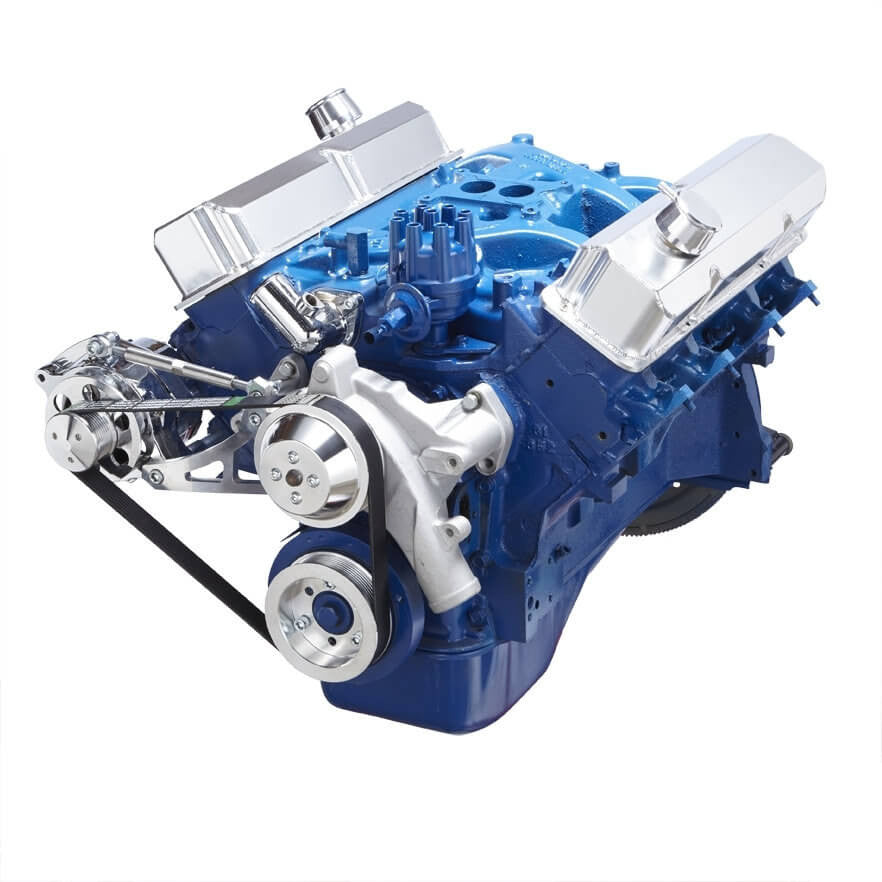

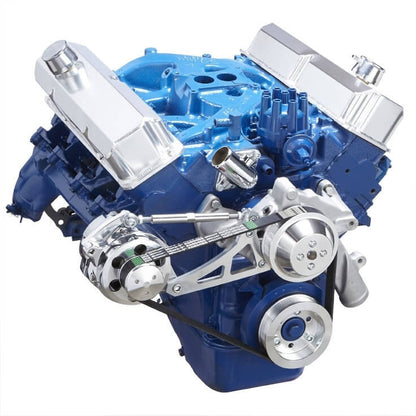

CVF Racing's BEAST alternator-only kit puts a Ford FE engine (390, 427 or 428) on an 8-rib serpentine belt, which CVF uses in place of 6-rib pulleys for more grip and less stretch and slip. Components are finished in polished.
The kit keeps the original or an aftermarket clockwise rotation water pump and mounts the alternator mid-height on the passenger side. It is offered in underdrive or high flow pulley ratio, with or without belts.
Specifications:
- Finish: Polished
- Belt type: 8-rib serpentine
- Accessories driven: Alternator only
- Alternator position: Mid, passenger side
- Water pump rotation: Standard (clockwise)
- Pulley ratio: Underdrive or high flow (variant)
- Belts: With or without premium 8-rib belts (variant)
- Engine: Ford FE 390, 427 and 428
- Part number: 390-SERPENTINE-ALT
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (1 belt)
- Alternator pulley (1 belt)
- Billet aluminum alternator bracket
- ALTFAN universal alternator fan
Not Included: The water pump and alternator are not included.
Application Notes:
- Uses the original or an aftermarket clockwise rotation water pump.
- The high flow ratio is only offered with a 2-groove crankshaft pulley, so one groove stays unused on this alternator-only setup.
- Maximum alternator depth, measured from the front of the mounting ear to the back of the alternator, is 4.65 in. OEM alternators fit, but some aftermarket alternators are too deep and will hit the cylinder head.
- CVF suggests a compact 3G style alternator such as Powermaster 177491 (chrome), 277491 (polished) or 77491 (natural).
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does this kit include?
It includes 1-belt water pump, crank and alternator pulleys, a billet aluminum alternator bracket and a universal alternator fan.
What happens with the high flow ratio?
CVF offers the high flow ratio only with a 2-groove crank pulley, so one groove is left empty in this alternator-only kit.
Are the water pump and alternator included?
No. The kit uses the original or an aftermarket clockwise rotation water pump, and the alternator is purchased separately.
Is there an alternator size limit?
Yes. The alternator can be no deeper than 4.65 in. from the front of the mounting ear to the back of the case, and CVF suggests a compact 3G style unit such as Powermaster 177491, 277491 or 77491.
Are belts included?
Belts are an ordering choice: the kit is offered either without belts or with premium 8-rib serpentine belts.
