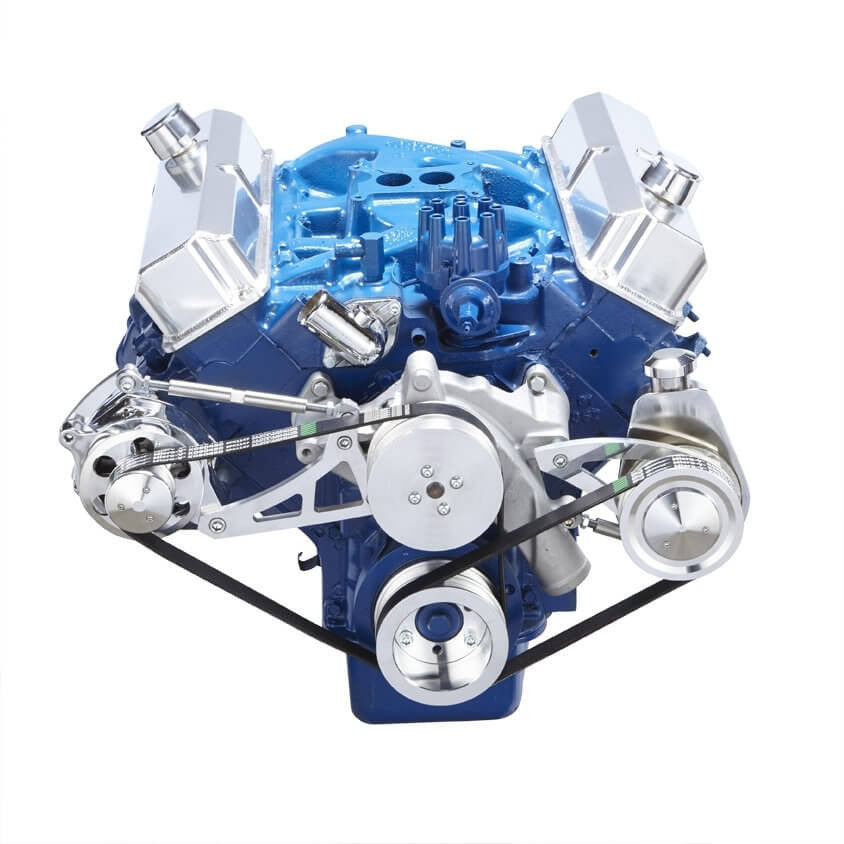

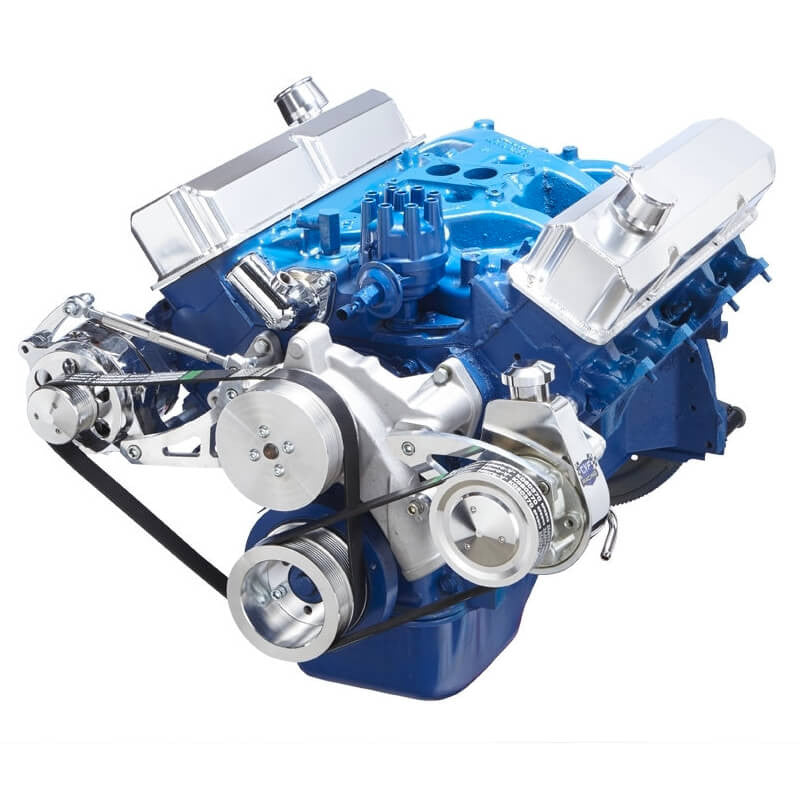

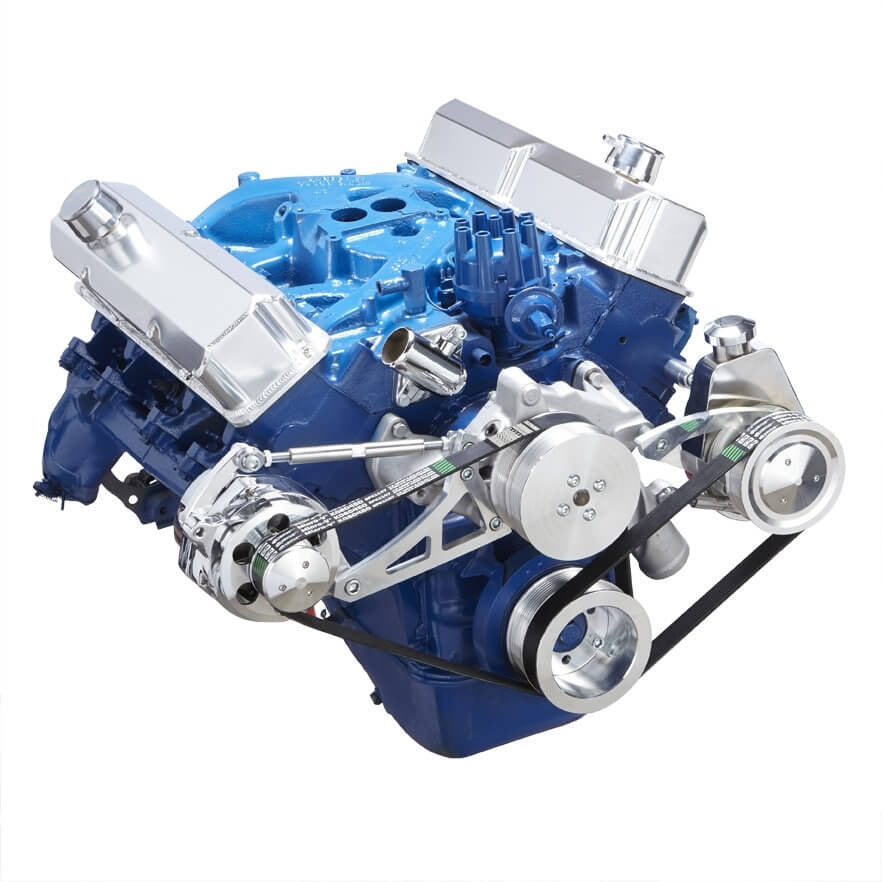

This CVF Racing BEAST conversion runs the alternator and power steering pump on a Ford FE engine (390, 427 or 428) with an 8-rib serpentine belt. CVF specifies 8 ribs rather than the usual 6 to improve grip and reduce belt stretch and slip. Parts are polished.
It fits the original or an aftermarket clockwise rotation water pump and places the alternator mid-height on the passenger side. The kit is offered in underdrive or high flow pulley ratio, with or without belts, and for a choice of power steering pump.
Specifications:
- Finish: Polished
- Belt type: 8-rib serpentine
- Accessories driven: Alternator and power steering
- Alternator position: Mid, passenger side
- Water pump rotation: Standard (clockwise)
- Pulley ratio: Underdrive or high flow (variant)
- Power steering pump setup: Ford pump with steel reservoir, Saginaw P series with keyway shaft, or Saginaw P series with press fit shaft (variant; pump not included)
- Belts: With or without premium 8-rib belts (variant)
- Engine: Ford FE 390, 427 and 428
- Part number: 390-SERPENTINE-PS
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Power steering pulley (1 belt; CVF lists a keyway pulley for Saginaw P series pumps)
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- ALTFAN universal alternator fan
Not Included: The water pump, alternator and power steering pump are not included.
Application Notes:
- Uses the original or an aftermarket clockwise rotation water pump.
- Maximum alternator depth, measured from the front of the mounting ear to the back of the alternator, is 4.65 in. OEM alternators fit, but some aftermarket alternators are too deep and will hit the cylinder head.
- CVF suggests a compact 3G style alternator such as Powermaster 177491 (chrome), 277491 (polished) or 77491 (natural).
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does this kit drive?
It drives the alternator and power steering pump on an 8-rib serpentine belt on Ford FE 390, 427 and 428 engines.
Which power steering pumps are supported?
The kit is offered for a Ford pump with steel reservoir, a Saginaw P series pump with keyway shaft, or a Saginaw P series pump with press fit shaft. The pump is not included.
What is included?
It includes water pump, crank, alternator and power steering pulleys, billet aluminum alternator and power steering brackets, and a universal alternator fan.
Is there an alternator size limit?
Yes. The alternator can be no deeper than 4.65 in. from the front of the mounting ear to the back of the case, and CVF suggests a compact 3G style unit such as Powermaster 177491, 277491 or 77491.
Are belts included?
Belts are an ordering choice: the kit is offered either without belts or with premium 8-rib serpentine belts.
