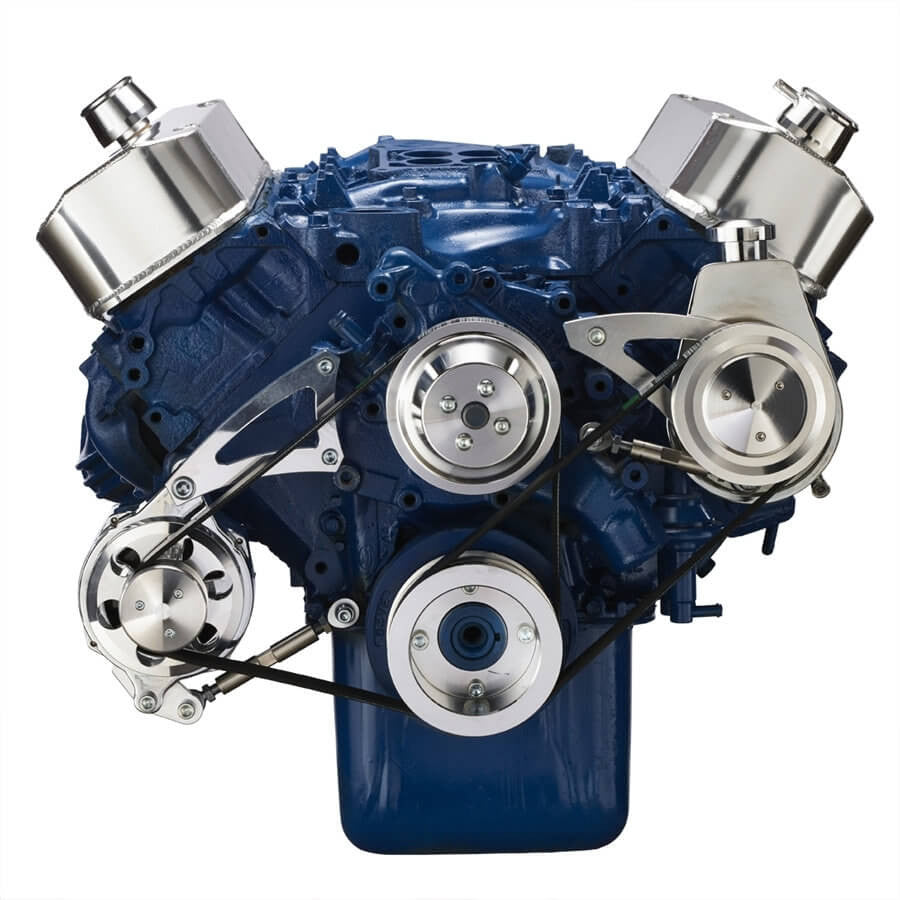

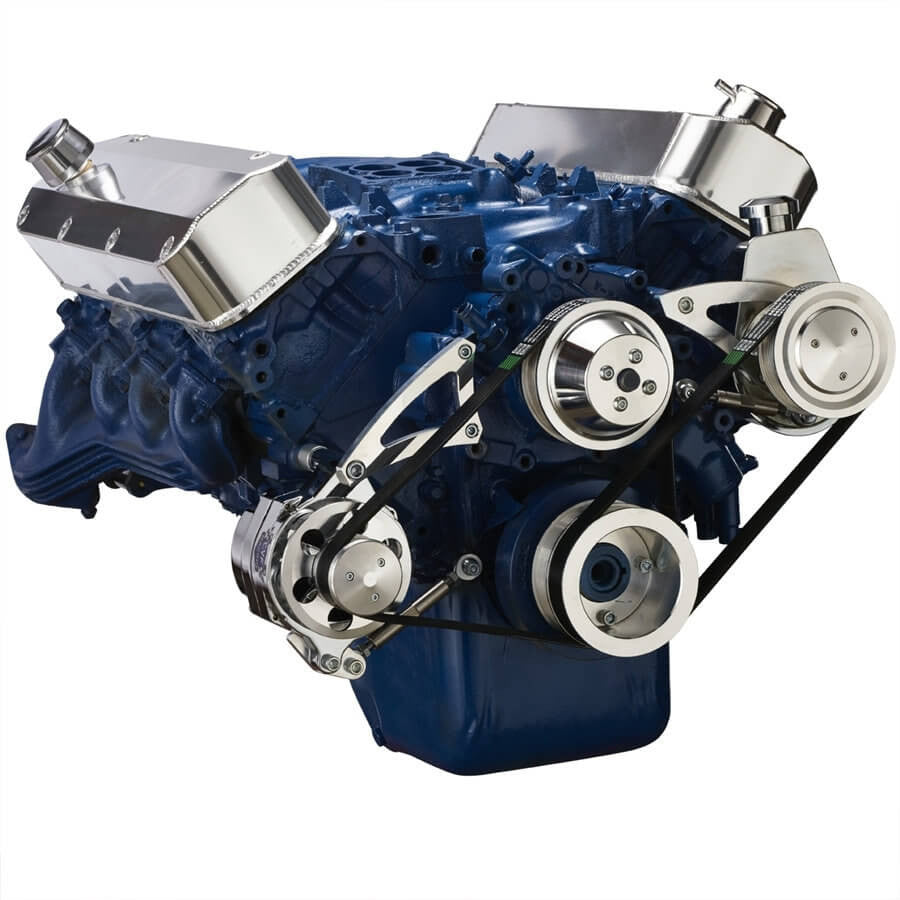

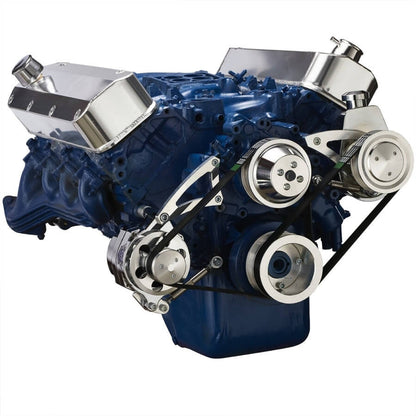

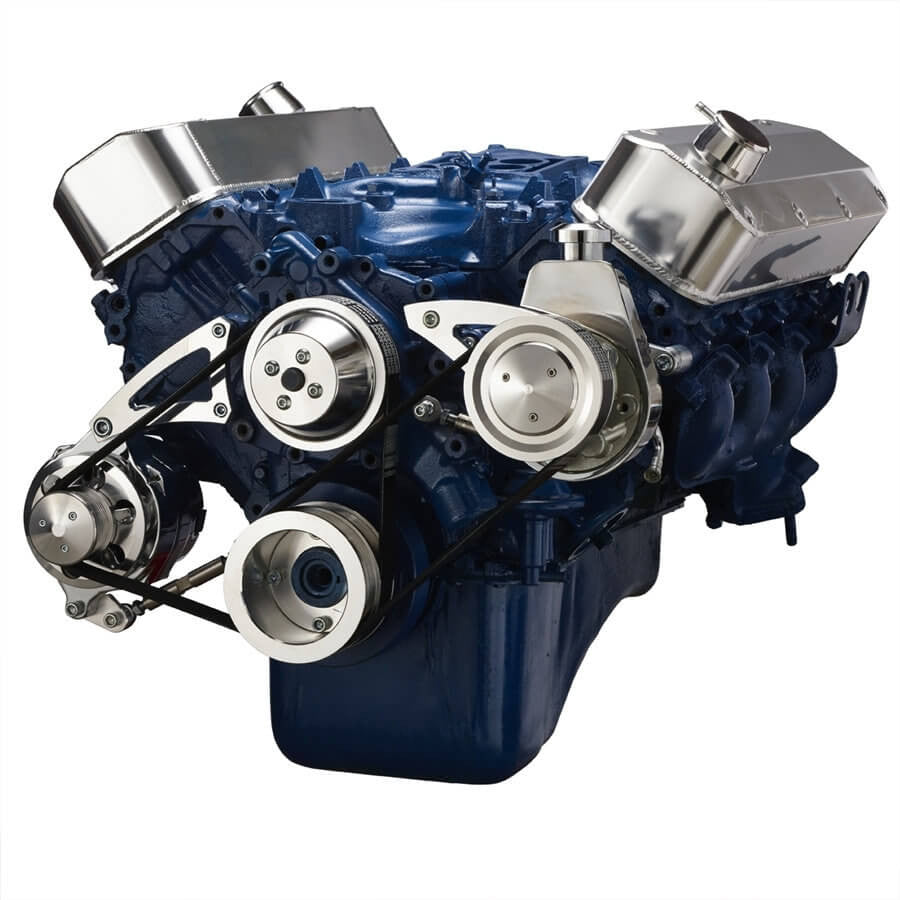

The polished CVF Racing BEAST serpentine conversion kit converts a Ford 429 or 460 big block to an 8-rib serpentine accessory drive running an alternator and Saginaw power steering pump. CVF states its 8-rib pulley design grips better, stretches less and slips less than a typical 6-rib layout. The alternator mounts low on the passenger side.
It is designed to reuse an original or aftermarket clockwise rotation mechanical water pump. The kit is offered with a power steering pulley for a 5/8 in keyway shaft or a 3/4 in press fit shaft and with or without CVF's premium 8-rib serpentine belt(s), selected when ordering.
Specifications:
- Kit type: BEAST serpentine conversion
- Belt type: 8-rib serpentine
- Accessories: Alternator, Saginaw power steering
- Alternator position: Low, passenger side
- Power steering pulley choices: 5/8 in keyway shaft or 3/4 in press fit shaft
- Belt choices: With or without premium 8-rib belt(s)
- Water pump type: Mechanical, clockwise (standard) rotation
- Brackets: Billet aluminum
- Finish: Polished
- Engine: Ford 429 and 460 big block
- Part number: 460-SERPENTINE-PS
Kit Includes:
- Water pump pulley (1 belt)
- Crankshaft pulley (2 belt)
- Alternator pulley (1 belt)
- Power steering pulley (1 belt)
- Billet aluminum power steering bracket
- Billet aluminum alternator bracket
- Universal alternator fan (ALTFAN)
Not Included: The water pump, Saginaw keyway power steering pump and alternator are not included.
Application Notes:
- CVF offers a power steering pump, an alternator, a water pump, a 1969 to 1997 cast timing cover and a billet thermostat housing as separate add-ons, sold separately.
Additional Application Note: CVF lists this kit by engine (Ford 429 and 460 big block) and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does this serpentine kit run?
It converts a Ford 429 or 460 big block to an 8-rib serpentine drive for an alternator and Saginaw power steering pump.
What is not included?
The water pump, Saginaw keyway power steering pump and alternator are not included.
Which water pump does it use?
It uses an original or aftermarket clockwise rotation mechanical water pump, which is not included.
Are belts included?
The kit is offered with or without CVF's premium 8-rib serpentine belt(s); choose the belt option when ordering.
Is it offered in another finish?
Yes. CVF offers this kit in stealth black as part number B-460-SERPENTINE-PS.
