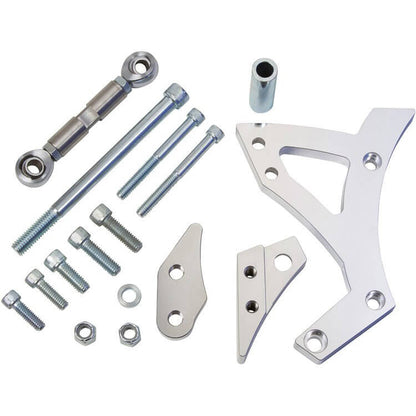

CVF Racing's polished alternator bracket is built for the Ford 351M and 400 engine family (sometimes called the 400M). It mounts the alternator on the passenger side (USA passenger side) in a V-belt drive with a mechanical water pump.
These engines need their own bracket; neither a 351 Windsor nor a 351 Cleveland alternator bracket is a substitute. Factory style or CVF Racing pulleys can be used.
Specifications:
- Engine: Ford 351M and 400
- Alternator position: Mid mount, passenger side
- Belt type: V-belt
- Water pump type: Mechanical
- Pulley compatibility: OEM or CVF Racing pulleys
- Finish: Polished
- Part number: 400-ALTBRKT
Kit Includes:
- Alternator bracket
Not Included: Alternator and pulleys are not included.
Application Notes:
- 351 Windsor and 351 Cleveland alternator brackets do not fit the 351M and 400.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engines does this alternator bracket fit?
It fits the Ford 351M and 400 engines, also known as the 400M family.
Can a 351 Cleveland bracket be used on a 400?
No. CVF states that neither 351W nor 351C alternator brackets will work on the 351M and 400.
Where is the alternator positioned?
The alternator mounts on the passenger side of the engine.
