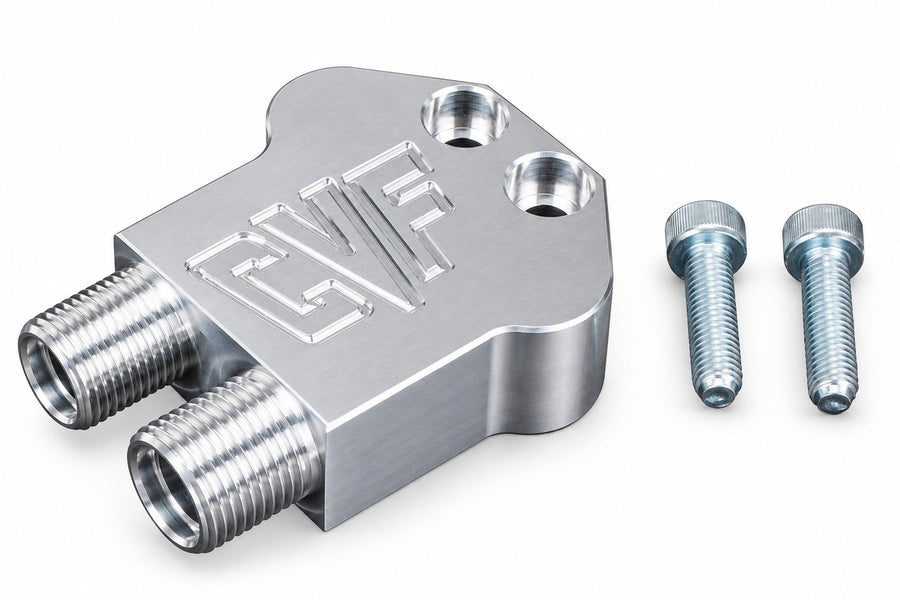

This CVF Racing 90-degree adapter block replaces the line connection on Sanden 7B10 Peanut style AC compressors, turning the AC line routing through a right angle at the compressor. It is CNC machined in the USA from 6061-T6 aluminum, finished in a hand polished shine, and supplied with the hardware needed to mount it.
Specifications:
- Product type: AC compressor fitting manifold, 90-degree
- Fits: All Sanden 7B10 Peanut style compressors
- Material: 6061-T6 aluminum
- Construction: CNC machined in the USA
- Discharge port: #8 O-ring (3/4 in.)
- Suction port: #10 O-ring (7/8 in.)
- Finish: Polished
- Warranty: CVF lifetime guarantee
- Part number: AIR-FITTING-90
Kit Includes:
- 90-degree fitting manifold
- Mounting hardware
Application Notes:
- Requires a #8 O-ring (3/4 in.) at the discharge port and a #10 O-ring (7/8 in.) at the suction port.
- A straight version of this manifold is also offered by CVF for the same compressors.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What compressors does the CVF AIR-FITTING-90 fit?
It fits all Sanden 7B10 Peanut style AC compressors.
What size ports does this fitting manifold use?
It uses a #8 O-ring (3/4 inch) discharge port and a #10 O-ring (7/8 inch) suction port.
What is the manifold made from?
CVF CNC machines it in the USA from 6061-T6 aluminum.
Is mounting hardware included?
Yes. CVF states the fitting comes with the mounting hardware needed for installation.
What finish is this part number?
AIR-FITTING-90 is the Polished version of the 90-degree manifold.
