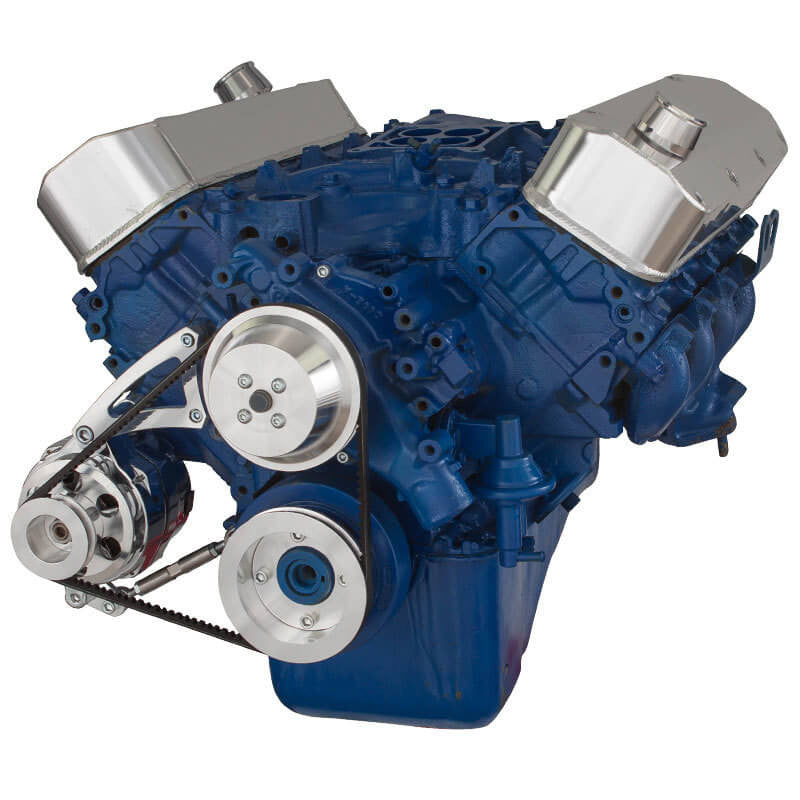

This polished CVF Racing system supplies the pulleys and bracket for an alternator only V-belt drive on a Ford 429 or 460 big block with a mechanical water pump. Its low mount bracket places the alternator down by the oil pan in the factory location on the passenger side.
The system is offered in an underdrive ratio or a high flow (-HF) ratio, selected when ordering.
Specifications:
- System type: V-belt pulley and bracket system
- Accessories: Alternator only
- Alternator position: Low, passenger side (factory location)
- Pulley ratio choices: Underdrive or high flow (-HF)
- Water pump type: Mechanical, standard rotation
- Belt type: V-belt
- Finish: Polished
- Engine: Ford 429 and 460 big block
- Part number: 460-ALT-SYSTEM-L
Kit Includes:
- 1 groove water pump pulley (BBFL1WP, or BBFL1WP-HF for the high flow ratio)
- 1 groove crankshaft pulley (BBFL1CR)
- 1 groove alternator pulley (listed by CVF as BBFL2ALT)
- Low mount alternator bracket (460-ALTBRKT-L)
- Universal alternator fan (ALTFAN)
Not Included: The alternator and water pump are not included.
Application Notes:
- CVF offers a water pump, an alternator, a billet thermostat housing and a 1969 to 1997 cast timing cover as separate add-ons, sold separately.
Additional Application Note: CVF lists this system by engine (Ford 429 and 460 big block) and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Where does the alternator mount with this system?
It mounts low on the passenger side near the oil pan, in the factory location, using the 460-ALTBRKT-L bracket.
What ratio choices are offered?
CVF offers the system in an underdrive ratio or a high flow (-HF) ratio, selected when ordering.
What does the kit include?
It includes a 1 groove water pump pulley, the BBFL1CR crank pulley, a 1 groove alternator pulley, the low mount alternator bracket and a universal alternator fan.
Is there a high mount version?
Yes. CVF offers a high mount alternator version as part number 460-ALT-SYSTEM.
