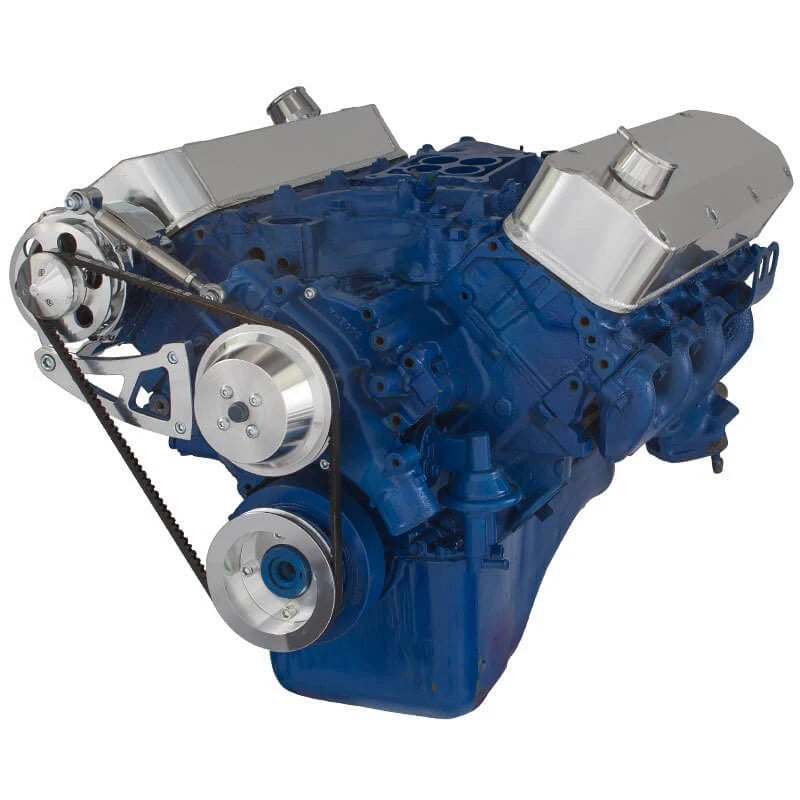

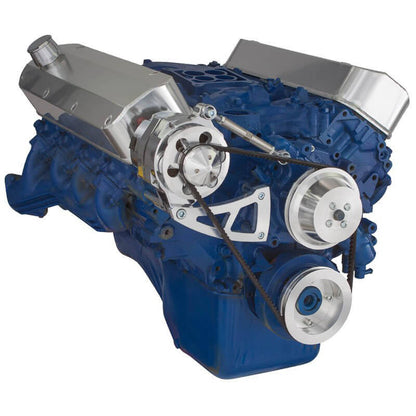

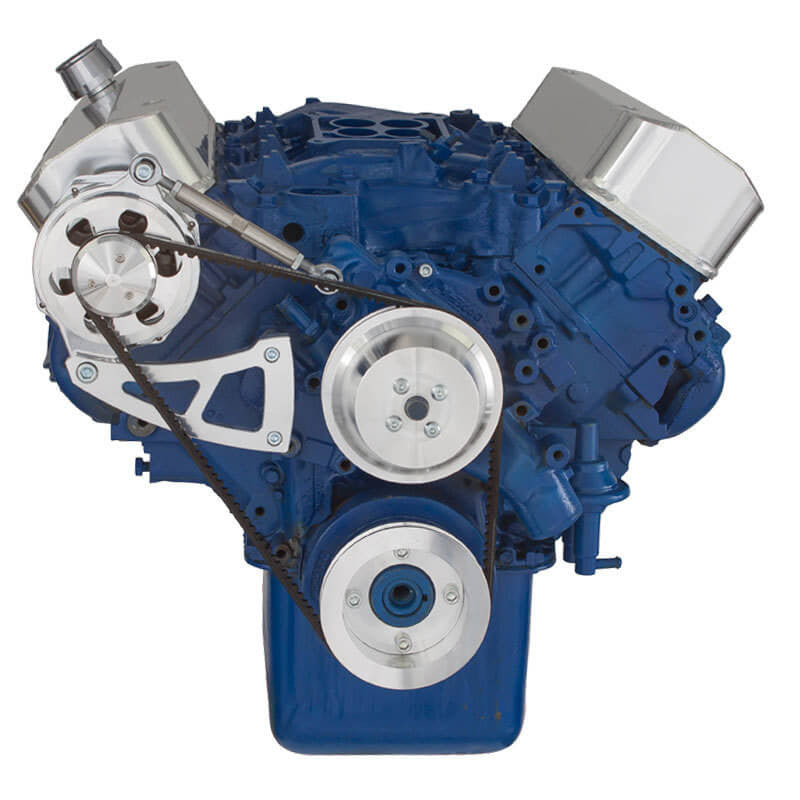

This polished CVF Racing system provides the pulleys and bracket for an alternator only V-belt drive on a Ford 429 or 460 big block. It uses CVF's high mount alternator bracket, which places the alternator up beside the cylinder head on the passenger side.
The system is offered in an underdrive ratio or a high flow (-HF) ratio, chosen when ordering.
Specifications:
- System type: V-belt pulley and bracket system
- Accessories: Alternator only
- Alternator position: High, passenger side
- Pulley ratio choices: Underdrive or high flow (-HF)
- Water pump type: Mechanical, standard rotation
- Belt type: V-belt
- Finish: Polished
- Engine: Ford 429 and 460 big block
- Part number: 460-ALT-SYSTEM
Kit Includes:
- 1 groove water pump pulley (BBFL1WP, or BBFL1WP-HF for the high flow ratio)
- 1 groove crankshaft pulley (BBFL1CR)
- 1 groove alternator pulley (SBF1ALT)
- High mount alternator bracket (460-ALTBRKT)
- Universal alternator fan (ALTFAN)
Not Included: The alternator and water pump are not included.
Application Notes:
- CVF offers a water pump, an alternator, a billet thermostat housing and a 1969 to 1997 cast timing cover as separate add-ons, sold separately.
Additional Application Note: CVF lists this system by engine (Ford 429 and 460 big block) and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Where does this system mount the alternator?
It uses CVF's high mount bracket, which places the alternator up near the cylinder head on the passenger side.
What pulleys are included?
It includes a 1 groove water pump pulley, the BBFL1CR 1 groove crank pulley and the SBF1ALT alternator pulley, plus the 460-ALTBRKT bracket and an alternator fan.
What ratio options are available?
CVF offers this system in an underdrive ratio or a high flow (-HF) ratio, chosen when ordering.
Is there a low mount version?
Yes. CVF offers a low mount alternator version of this system as part number 460-ALT-SYSTEM-L.
