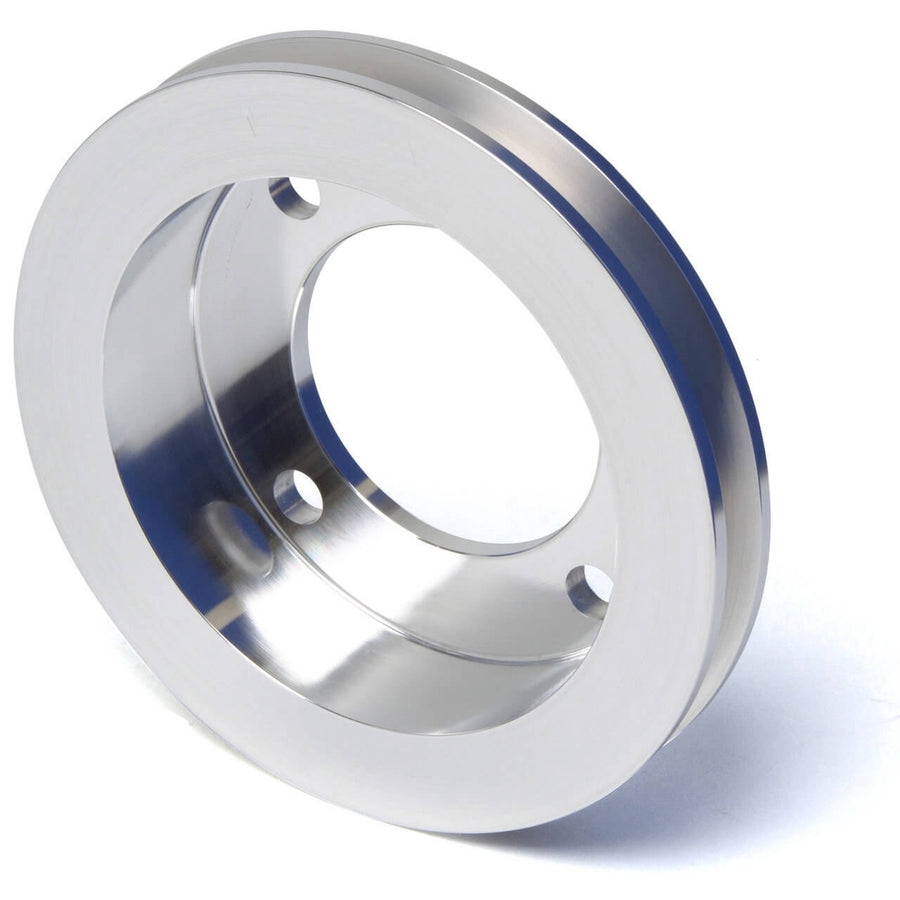

This CVF Racing crankshaft pulley is machined from billet aluminum with one V-belt groove and a Polished finish. It is built for Ford 289, 302 and 351W small block engines running the Ford Racing short water pump M-8501-E351S, and CVF based its design on the discontinued Ford street rod pulleys M-8509-R and M-8509-Q.
CVF designed it to work with factory alternator and power steering brackets as well as CVF brackets.
Specifications:
- Finish: Polished
- Material: Billet aluminum
- Belt type: V-belt
- Diameter: 5.4"
- Overall length: 1.3"
- Grooves: 1
- Bolt pattern: 4-bolt
- Bolt circle: 3.25"
- Pilot diameter: 2.4"
- Water pump: Ford Racing M-8501-E351S short pump
- Part number: SBFS1CR-FR
FAQ
What water pump is the SBFS1CR-FR designed for?
CVF designed the SBFS1CR-FR for Ford 289, 302 and 351W small block engines using the Ford Racing short water pump M-8501-E351S, based on the discontinued Ford M-8509-R and M-8509-Q street rod pulleys.
What size is the SBFS1CR-FR?
CVF lists a 5.4" diameter, 1.3" overall length and one V-belt groove.
What bolt pattern does the SBFS1CR-FR use?
It uses a 4-bolt pattern on a 3.25" bolt circle with a 2.4" pilot diameter.
