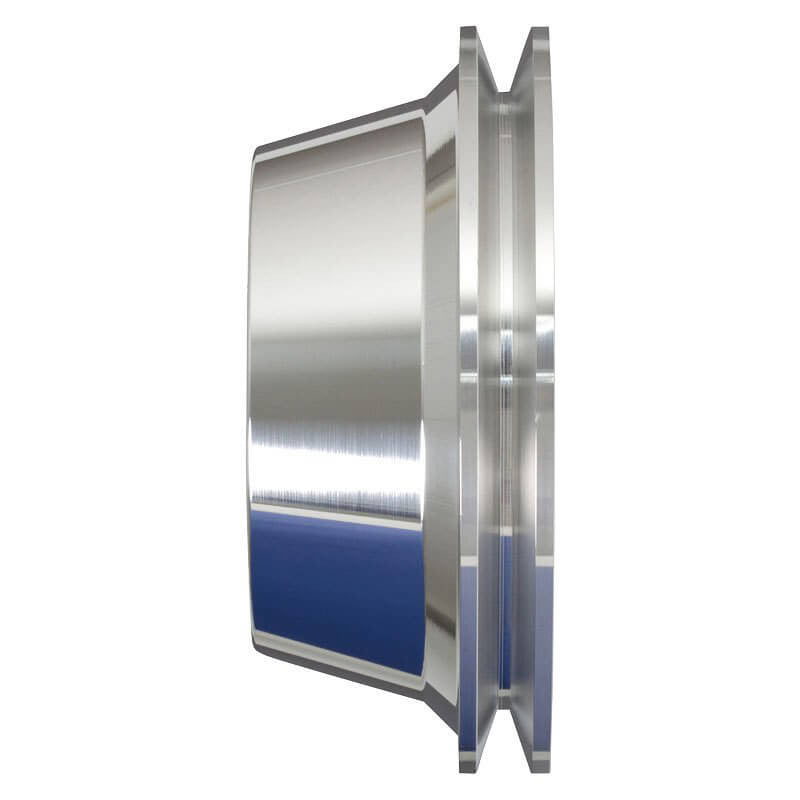

This polished CVF Racing water pump pulley is machined from billet aluminum for the Ford 260 V8 with a V-belt drive. It is a single groove pulley for the early style, standard rotation mechanical water pump.
It measures 6.0 inches in diameter and 2.4 inches overall, and it bolts on with a 4 bolt pattern on a 1.75 inch bolt circle.
Specifications:
- Engine: Ford 260 small block
- Material: Billet aluminum
- Belt type: V-belt
- Grooves: 1
- Diameter: 6.0 in.
- Overall length: 2.4 in.
- Bolt pattern: 4 bolt
- Bolt circle: 1.75 in.
- Water pump: Early style, mechanical, standard rotation
- Finish: Polished
- Part number: SBFE1WP-260
Kit Includes:
- Water pump pulley
Additional Application Note: CVF lists this pulley for Ford 260 engines in 1962 to 1964 Ford passenger cars and trucks; specific models are not named.
FAQ
What engine does this water pump pulley fit?
It fits the Ford 260 V8 with a V-belt drive and early style mechanical water pump. CVF lists 1962 to 1964 Ford passenger cars and trucks.
What size is the pulley?
It is 6.0 inches in diameter with a 2.4 inch overall length.
What is the bolt pattern?
It uses a 4 bolt pattern on a 1.75 inch bolt circle.
