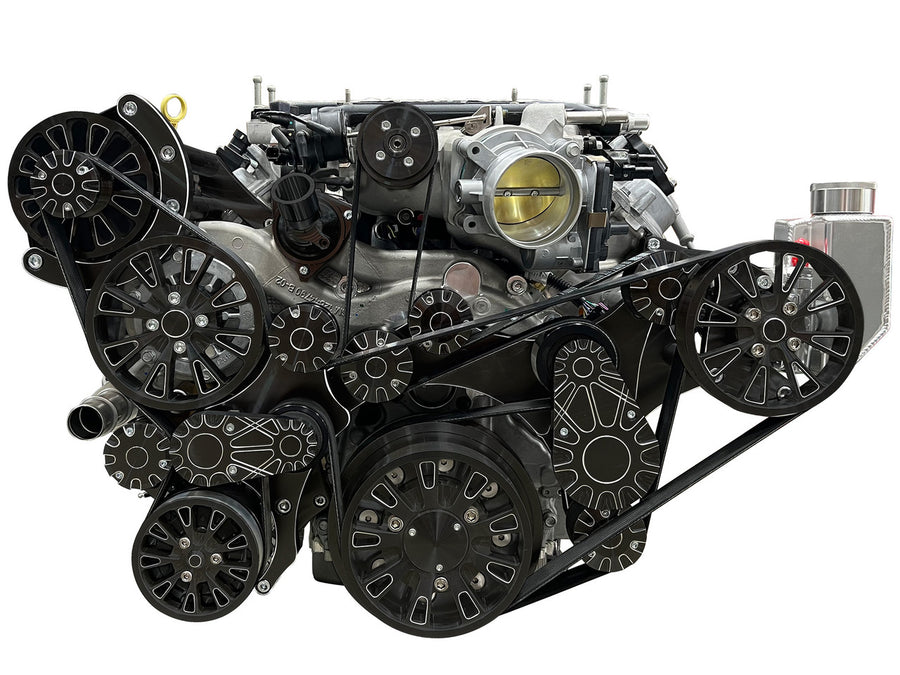

The CVF Racing Reaper supercharged serpentine system is a billet aluminum dual-belt drive for the Chevy LT4 with its OEM supercharger. A dedicated 10-rib belt drives the supercharger, while a separate 8-rib belt runs the water pump, alternator, power steering and A/C.
The system uses billet brackets, billet spacers and stainless steel hardware, is CNC machined in the USA, and carries a CVF lifetime warranty. This version is finished in Stealth Black.
Specifications:
- Engine: Chevy LT4 with OEM LT4 supercharger
- Belts: 10-rib supercharger drive plus 8-rib accessory drive
- Mounting position: mid mount
- Alternator position: mid, driver side
- A/C compressor position: mid, passenger side
- Water pump: LT4 high-flow aluminum (cast finish), reverse rotation
- Supercharger drive ratio: 3.2:1 (8 in. crank, 2.5 in. supercharger pulley)
- Alternator: 1-wire CS130, 160 amp standard (upgradable to 300 amp)
- Power steering: GM Type II pump
- A/C compressor: Sanden Peanut 7B10 style with 8-rib clutch
- Configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; alternator only
- Oil system choices: wet sump (standard oil pan) or dry sump (shallow oil pan with external reservoir)
- Pulley style choices: standard billet or GripTec enhanced billet for the blower and crankshaft pulleys (GripTec is always black)
- Hardware: stainless steel
- Finish: Stealth Black
- Power steering choices: none (non-power steering applications), GM Type II pump with remote reservoir, GM Type II pump with attached reservoir, Hydroboost pump with attached reservoir, Hydroboost pump with remote reservoir
- Part number: B-LT4S-RP
Included in Every Configuration:
- High-flow aluminum LT4 water pump (cast finish)
- 160 amp 1-wire CS130 alternator
- Premium 10-rib and 8-rib belts
- Water pump pulley
- Crank pulley
- Alternator pulley
- Spring-loaded belt tensioner with adjustable bracket
- Billet aluminum brackets
- Black anodized hub adapter for attaching the crank pulley to ATI balancers
- Billet alternator fan
- Stainless steel mounting hardware
- Billet spacers (anodized black)
- Billet thermostat housing
Included by Configuration:
- Sanden style Peanut compressor with 8-rib clutch, black A/C compressor fitting and billet compressor clutch cover (A/C configurations)
- GM Type II power steering pump, power steering pulley and black remote mount reservoir with mounting bracket (power steering configurations)
Not Included: Power steering lines from the pump to the reservoir and a PCV remote breather or catch can are not included.
Application Notes:
- Requires the OEM LT4 supercharger; not compatible with other superchargers.
- Requires an OEM wet sump engine (Cadillac CT5-V, Escalade-V, Camaro ZL1), or a dry sump engine with the matching kit configuration.
- Not compatible with LT5 engines.
- A hub adapter for a quick-change supercharger pulley is included, and a 2.3 in. supercharger pulley is available.
- Requires a remote breather, catch can or air/oil separator for the PCV system (not included).
- ATI balancer part numbers listed by CVF: 917315 for dry sump, 918856 for wet sump.
- Dry sump engines may require a throttle body adapter (Holley 717-05).
- Requires electric cooling fans.
- Compatible with Hydroboost.
- CVF recommends the remote power steering reservoir on all GM applications for A-arm clearance.
- The oil system (wet or dry sump), power steering pump type, alternator amperage, blower pulley style and crankshaft pulley style choices are selected separately when ordering.
- Optional add-ons offered by CVF (power steering line kits and attached reservoir styles) are sold separately and are not part of this kit.
Race Use Only: This part is intended for off-road and competition use only and is not legal for use on public roads in a pollution-controlled motor vehicle. Under the federal Clean Air Act, it is illegal to remove, alter, or render inoperative any emission control device on a motor vehicle used on public roads. Check federal, state, and local regulations before purchase and installation.
FAQ
Does the CVF Racing B-LT4S-RP work with aftermarket superchargers?
No. It requires the OEM LT4 supercharger and is not compatible with other superchargers.
Does it fit wet sump and dry sump LT4 engines?
Yes. The oil system is chosen when ordering: wet sump (standard oil pan) or dry sump (shallow oil pan with external reservoir). Dry sump engines may require a Holley 717-05 throttle body adapter.
Which ATI balancer does CVF list for this kit?
CVF lists ATI balancer 917315 for dry sump and 918856 for wet sump engines.
Is the Reaper LT4 system compatible with the LT5?
No. CVF states it is not compatible with LT5 engines.
What else is required for installation?
A remote breather, catch can or air/oil separator for the PCV system is required and not included, and the system requires electric cooling fans.
