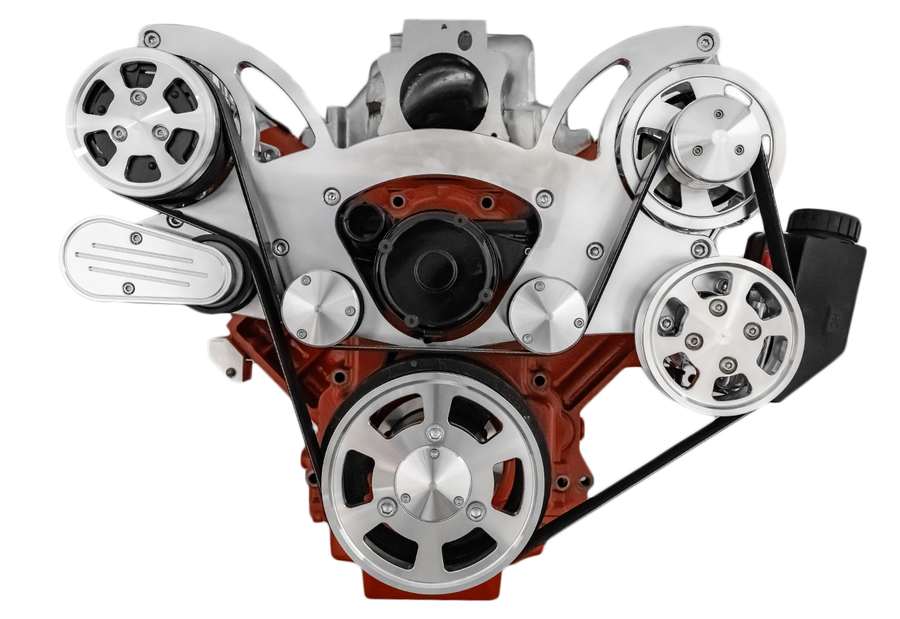

This CVF Racing Wraptor system is a complete 8-rib mid-mount front drive for Chevy LS1, LS2, LS3, LS6, and LS7 engines that pairs the accessory drive with a 35 GPM electric water pump in place of a belt-driven pump. The GM Type II power steering pump mounts low on the driver side with the alternator above it, and the Sanden peanut-style A/C compressor mounts up on the passenger side on a one-piece billet bracket. This listing is offered in polished aluminum or C3 ceramic clear coat.
Specifications:
- Engine: Chevy LS1, LS2, LS3, LS6, LS7
- Mounting: Mid-mount
- Belt: 8-rib serpentine
- Water pump: 35 GPM electric (included)
- Bracket: One-piece billet aluminum
- Crank hub adapter: For OEM balancer or optional Fluidampr SFI balancer
- Finish: Polished or C3 Ceramic Clear Coat
- Part number: LSXM-WRAPTOR-EWP
Included in Every Configuration:
- 35 GPM electric water pump
- 160 amp 1-wire CS130 alternator
- 8-rib serpentine belt
- 8-rib crankshaft pulley
- 8-rib alternator pulley
- Spring-loaded idler pulley
- One-piece billet aluminum bracket
- Hub adapter for the crankshaft pulley
- Billet alternator fan
- Mounting hardware
Included by Configuration:
- GM Type II power steering pump and 8-rib power steering pulley (power steering configurations)
- Polished remote-mount power steering reservoir with bracket (power steering configurations)
- Sanden peanut-style A/C compressor with 8-rib clutch, 90 degree compressor fitting, and billet clutch cover (A/C configurations)
Configurations: Each listing is offered in four accessory configurations: AC, Power Steering & Alternator; Power Steering & Alternator; AC & Alternator; and Alternator Only. Items marked for a configuration are supplied only when that configuration is selected.
Application Notes:
- Power steering lines from the pump to the reservoir are not included.
- Compatible with Hydroboost.
- Not compatible with 102mm intakes or the MSD Atomic 2701 intake.
- CVF recommends the remote power steering reservoir on GM applications for A-arm clearance.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is included in every configuration of this kit?
Every configuration includes the high flow aluminum water pump, 160 amp CS130 alternator, 8-rib belt, water pump, crankshaft, and alternator pulleys, the tensioner, the billet bracket, and the alternator fan. The power steering pump and A/C compressor are included only with configurations that use them.
Are the power steering lines included?
No. The lines that run from the power steering pump to the reservoir are not included.
Does the kit work with Hydroboost?
Yes. CVF lists the system as compatible with Hydroboost.
What water pump comes with this kit?
It includes a 35 GPM electric water pump instead of a belt-driven mechanical pump.
