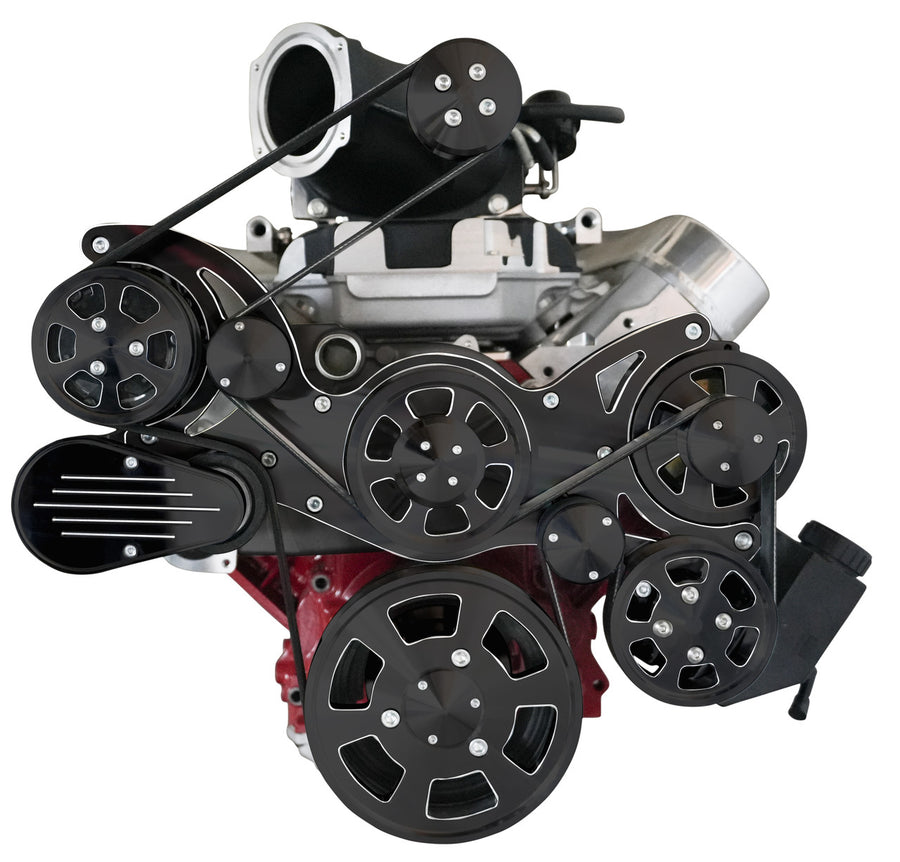

This CVF Racing Wraptor system is a complete 8-rib front accessory drive built for LS engines with Camaro or truck spacing running the Magnuson TVS2300 supercharger with LS3/truck drive (Magnuson part number 05-00-23-060-BL). The GM Type II power steering pump mounts low on the driver side with the alternator above it, and the A/C compressor mounts on the passenger side. The 8-rib belt layout gives more belt contact than a 6-rib design, and a spring-loaded tensioner holds belt tension through hard acceleration and deceleration. This version has a Black Diamond finish.
Specifications:
- Engine: Chevy LS (LS with Magnuson TVS2300 Supercharger)
- Belt: 8-rib serpentine
- Water pump: Mechanical, reverse rotation (included)
- Supercharger: Magnuson TVS2300, LS3/truck drive, part number 05-00-23-060-BL (not included)
- Spacing: Camaro or truck
- Finish: Black Diamond
- Part number: BD-LSXMG-WRAPTOR
Included in Every Configuration:
- High flow aluminum water pump
- 160 amp 1-wire CS130 alternator
- 8-rib serpentine belt
- 8-rib water pump pulley
- 8-rib crankshaft pulley
- 8-rib alternator pulley
- Spring-loaded idler or tensioner
- Billet aluminum bracket
- Hub adapter for the crankshaft pulley (OEM balancer or optional Fluidampr SFI balancer)
- Billet alternator fan
- Blower snout hub adapter
- Blower pulley with cap
Included by Configuration:
- GM Type II power steering pump and 8-rib power steering pulley (power steering configurations)
- Polished remote-mount power steering reservoir with bracket (power steering configurations)
- Sanden peanut-style (7B10) A/C compressor with 8-rib clutch, polished compressor fitting, and billet clutch cover (A/C configurations)
Configurations: Each listing is offered in four accessory configurations: AC, Power Steering & Alternator; Power Steering & Alternator; AC & Alternator; and Alternator Only. Items marked for a configuration are supplied only when that configuration is selected.
Application Notes:
- Power steering lines from the pump to the reservoir are not included.
- Some drive-by-wire applications may require Holley part number 717-15.
- CVF recommends the remote power steering reservoir on GM applications for A-arm clearance.
- Requires a 90 degree thermostat housing.
- CVF offers other blower pulley ratios by phone.
- Design patent: US D846,000 S.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
Race Use Only: This part is intended for off-road and competition use only and is not legal for use on public roads in a pollution-controlled motor vehicle. Under the federal Clean Air Act, it is illegal to remove, alter, or render inoperative any emission control device on a motor vehicle used on public roads. Check federal, state, and local regulations before purchase and installation.
FAQ
What is included in every configuration of this kit?
Every configuration includes the high flow aluminum water pump, 160 amp CS130 alternator, 8-rib belt, water pump, crankshaft, and alternator pulleys, the tensioner, the billet bracket, and the alternator fan. The power steering pump and A/C compressor are included only with configurations that use them.
Are the power steering lines included?
No. The lines that run from the power steering pump to the reservoir are not included.
Does the kit work with Hydroboost?
Yes. CVF lists the system as compatible with Hydroboost.
Is the Magnuson supercharger included?
No. The kit is the accessory drive only and requires the Magnuson TVS2300 supercharger with LS3/truck drive.
