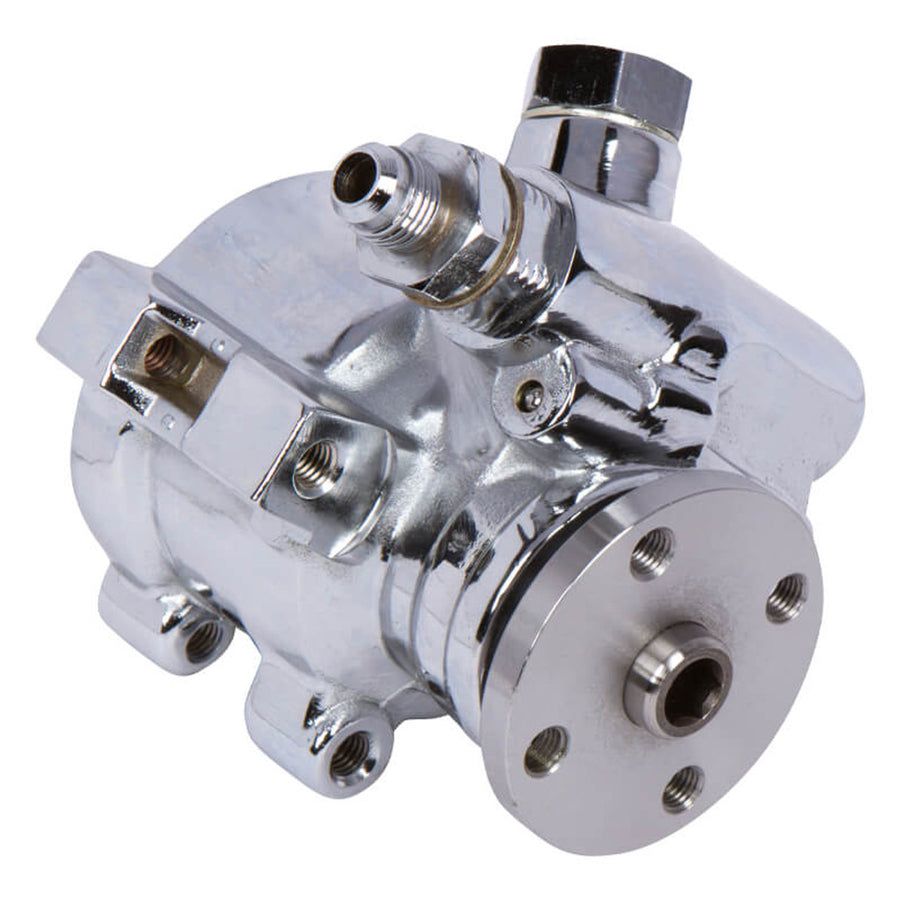

This Chrome power steering pump is built for GM Type II pump applications and is rated at 1,400 PSI and 2 GPM. It comes with a press-fit shaft and the pulley mounting hub already installed.
Specifications:
- Pump style: GM Type II
- Pressure: 1,400 PSI
- Flow: 2 GPM
- Inlet: 7/8-14 flare
- Outlet: -6 AN
- Shaft: Press fit with pulley mounting hub installed
- Finish: Chrome
- Part number: GM-TYPE2-PUMP
Application Notes:
- CVF offers a pressure reducing valve, part number SAGINAW-282-VALVE (sold separately), that lowers the pump to 800 PSI at 2 GPM.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What pressure and flow does the GM-TYPE2-PUMP produce?
It is rated at 1,400 PSI and 2 GPM.
What are the inlet and outlet fittings?
The inlet is 7/8-14 flare and the outlet is -6 AN.
Does it come with the pulley hub installed?
Yes, the press-fit shaft has the pulley mounting hub installed.
Can the pressure be lowered?
Yes, CVF sells the SAGINAW-282-VALVE pressure reducing valve, which drops the pump to 800 PSI and 2 GPM.
