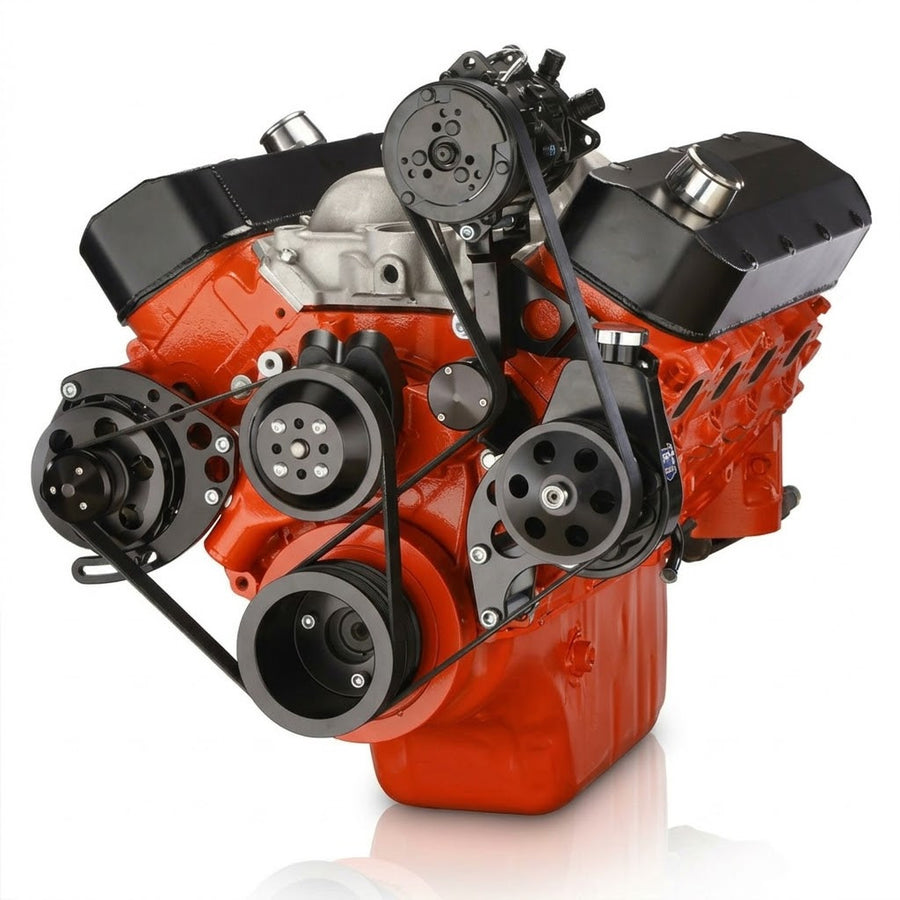

This CVF Racing Beast serpentine conversion kit sets up an 8-rib serpentine drive for air conditioning, power steering and alternator on a Big Block Chevy Gen VI 454 (7.4L) with a mechanical long water pump. A Saginaw P series power steering pump mounts low on the driver side, a Sanden 508 style compressor mounts on the driver side near the valve cover, and the alternator sits on the passenger side in a mid-mount position. CVF lists this kit for the 1996 to 2000 Gen VI 454 (7.4L). Brackets and pulleys have a Stealth Black finish.
Specifications:
- Engine: Big Block Chevy Gen VI 454 (7.4L), 1996 to 2000 per CVF
- Belt: 8-rib serpentine
- Water pump: Mechanical, standard Chevy long water pump (not included)
- Power steering: Saginaw P series pump, low driver side (pump not included)
- Air conditioning: Sanden 508 style compressor, driver side near valve cover (compressor not included)
- Alternator position: Mid mount, passenger side
- Finish: Stealth Black
- Deck Height options: Standard, Tall Deck Engine
- Power Steering Pulley options: 5/8" Keyway Shaft, 3/4" Press Fit Shaft
- Belts options: Belts Not Included, Include 8-Rib Serpentine Belt(s)
- Part number: B-454-SERPENTINE-AC-C-G6
Kit Includes:
- 1-belt water pump pulley
- 2-belt crankshaft pulley
- 1-belt alternator pulley
- 1-belt power steering pulley (keyway style)
- Passenger side alternator bracket
- Driver side power steering bracket
- Driver side AC compressor bracket
- Idler pulley
- Universal alternator fan (ALTFAN)
Not Included: AC compressor, power steering pump, alternator and water pump. Belts are included only when the belt option is selected.
Application Notes:
- Requires a thermostat housing that points toward the radiator or the passenger side.
- The included power steering pulley is keyway style and requires a Saginaw P series pump with a keyway shaft.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is included with the CVF Racing B-454-SERPENTINE-AC-C-G6?
The kit includes 1-belt water pump pulley, 2-belt crankshaft pulley, 1-belt alternator pulley, 1-belt power steering pulley (keyway style), passenger side alternator bracket, driver side power steering bracket, driver side AC compressor bracket, idler pulley and universal alternator fan (ALTFAN).
What is not included?
AC compressor, power steering pump, alternator and water pump are not included. Belts are included only when the belt option is selected.
Where does the AC compressor mount?
A Sanden 508 style compressor mounts on the driver side near the valve cover, with the power steering pump low on the driver side.
What power steering pump does the kit require?
The included keyway style pulley requires a Saginaw P series pump with a keyway shaft.
What finish is B-454-SERPENTINE-AC-C-G6?
This listing (B-454-SERPENTINE-AC-C-G6) is the Stealth Black version. CVF also lists the same kit in Polished (454-SERPENTINE-AC-C-G6).
