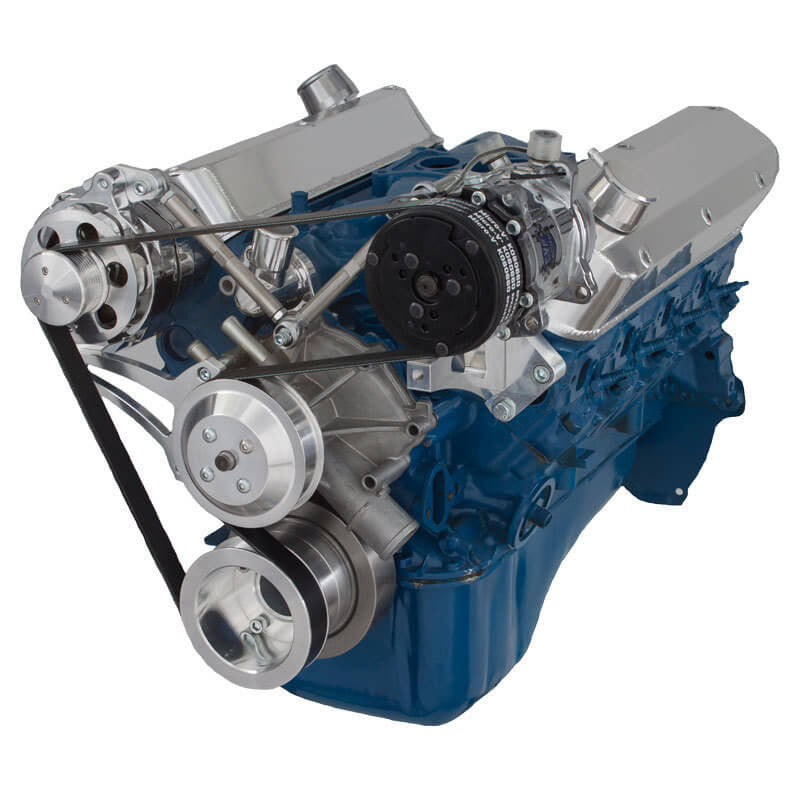

This CVF Racing BEAST serpentine conversion kit converts a Ford 5.0L or 5.8L small block to an 8-rib serpentine drive for the alternator and air conditioning compressor. It is built for 1986 to 1993 engines with the reverse rotation water pump and timing cover. The 8-rib belt layout gives more belt contact than a 6-rib design, which helps grip and reduces belt stretch and slip. The kit places the alternator high on the passenger side and the A/C compressor high on the driver side, using billet aluminum brackets and polished pulleys. Choose the engine, the damper that will be used (the damper is not included), and whether to include serpentine belts.
Specifications:
- Engine: Ford 5.0L or 5.8L, 1986 to 1993
- Water pump: 1986 to 1993 reverse rotation mechanical pump and timing cover required; will not work with the 1994 to 1995 pump
- Belt type: 8-rib serpentine
- Alternator position: High, passenger side
- A/C compressor position: High, driver side
- Compressor required: Sanden 508 style with 8-groove serpentine pulley
- Thermostat housing: 90 degree required
- Finish: Polished
- Part number: 5.0L-SERPENTINE-AC-ONLY
Kit Includes:
- Water pump pulley
- Crankshaft pulley
- Alternator pulley
- Billet aluminum alternator bracket
- Billet aluminum A/C compressor bracket
- Universal alternator fan (CVF ALTFAN)
Not Included: A/C compressor, water pump, alternator, and harmonic damper. These are sold separately.
Note: Aftermarket balancers may require an additional crank spacer.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does this serpentine kit fit?
It fits 1986 to 1993 Ford 5.0L and 5.8L small blocks that use the reverse rotation water pump and timing cover. It will not work with the 1994 to 1995 water pump.
Does the kit include the alternator or A/C compressor?
No. The kit includes the pulleys, billet alternator and A/C brackets, and an alternator fan. The compressor, alternator, water pump, and damper are sold separately.
What A/C compressor does it use?
It is designed for a Sanden 508 style compressor with an 8-groove serpentine pulley.
Why do I need to choose a damper option?
The crank pulley setup depends on the harmonic damper being used. Select the damper on the engine so the kit is configured correctly. Aftermarket balancers may need an additional crank spacer.
What belt does this kit use?
It uses an 8-rib serpentine belt. Serpentine belts can be added as an option or purchased separately.
