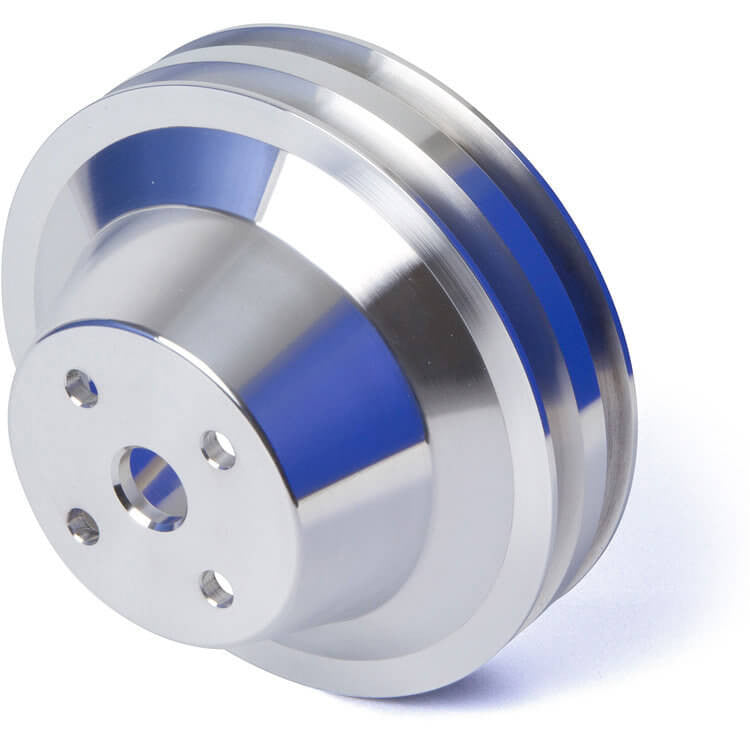

This CVF Racing billet aluminum water pump pulley is made for 1971 to 1982 Chevy Corvette small block engines that retain the original Corvette brackets and water pump. It is a two-groove V-belt pulley.
It is designed for use with the original Corvette power steering and alternator brackets.
Specifications:
- Belt type: V-belt
- Grooves: 2
- Diameter: 6.2 in
- Overall length: 3.1 in
- Bolt pattern: 4-bolt
- Bolt circle: 2.12 in
- Pilot diameter: 3/4 in
- Material: Billet aluminum
- Finish: Polished
- Part number: CORV2WP
Application Notes:
- Fits Chevy 283, 302, 305, 327, 350 and 400 CID small blocks with a Corvette water pump and the original Corvette power steering and alternator brackets.
Vehicle Applications (small block V8 with original Corvette brackets and Corvette water pump):
- 1971 Chevrolet Corvette
- 1972 Chevrolet Corvette
- 1973 Chevrolet Corvette
- 1974 Chevrolet Corvette
- 1975 Chevrolet Corvette
- 1976 Chevrolet Corvette
- 1977 Chevrolet Corvette
- 1978 Chevrolet Corvette
- 1979 Chevrolet Corvette
- 1980 Chevrolet Corvette
- 1981 Chevrolet Corvette
- 1982 Chevrolet Corvette
FAQ
Which Corvettes does CVF Racing CORV2WP fit?
CVF lists 1971 to 1982 Chevy Corvette small block engines with the original Corvette brackets and water pump.
Will CORV2WP work with aftermarket brackets?
CVF designed it for use with the original Corvette power steering and alternator brackets.
What are the dimensions of CORV2WP?
It measures 6.2 inches in diameter and 3.1 inches in overall length, with a 4-bolt pattern on a 2.12 inch bolt circle and a 3/4 inch pilot.
Which engines does CORV2WP fit?
CVF lists Chevy 283, 302, 305, 327, 350 and 400 CID small blocks with a Corvette water pump.
