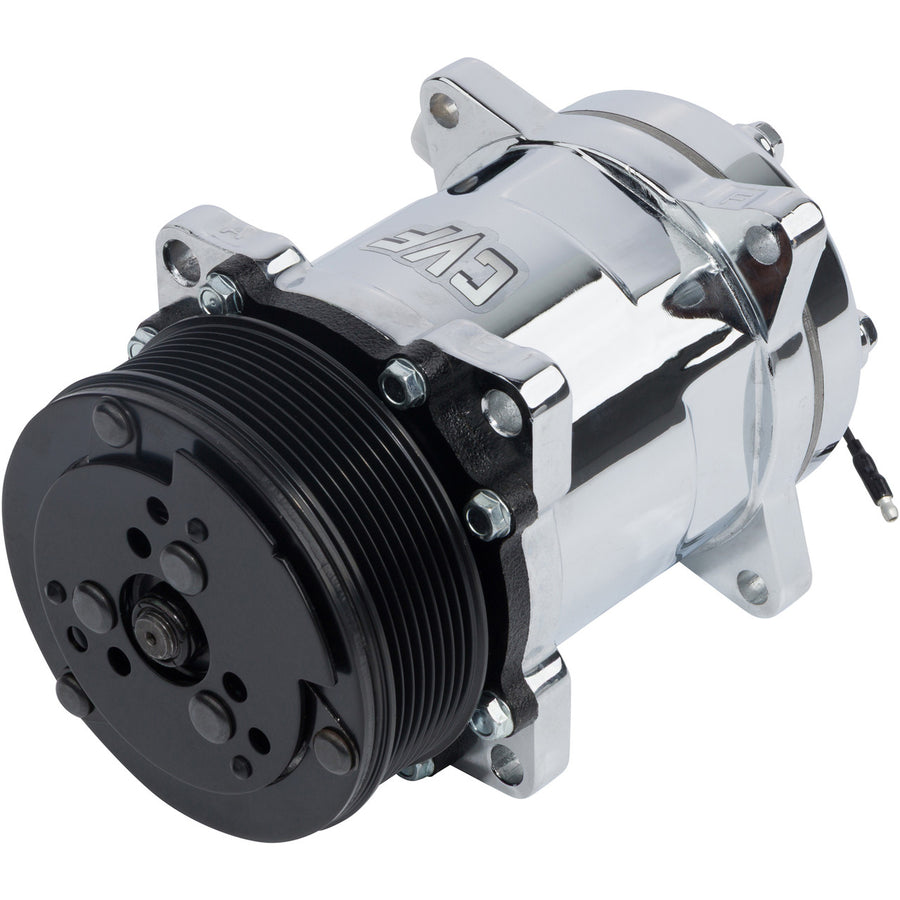

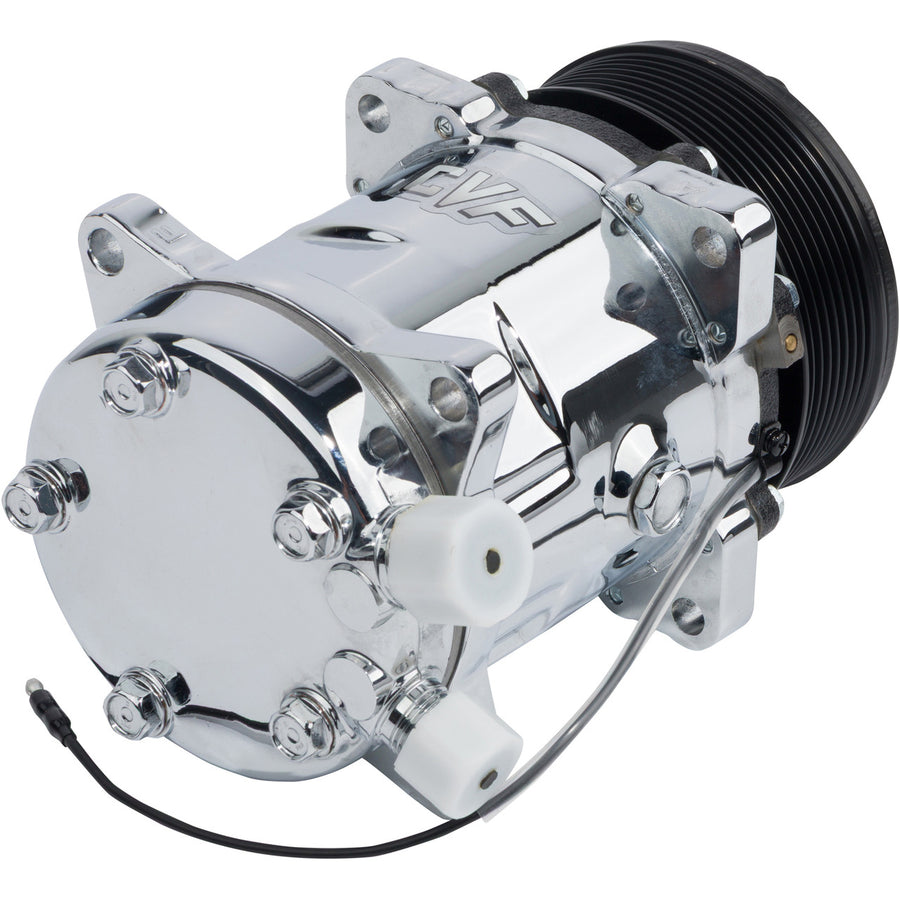

CVF Racing sells this Sanden style AC compressor with a chrome plated finish and a 8-rib serpentine pulley. It runs R134A refrigerant, displaces 138cc per revolution with 5 cylinders, and operates on 12V DC with side exit ports.
CVF notes the compressor is factory tested for efficient, quiet operation. It is an imported unit, not made in the USA, and CVF covers it with its lifetime warranty.
Specifications:
- Style: Sanden style
- Refrigerant: R134A
- Displacement: 138cc per revolution
- Cylinders: 5
- Voltage: 12V DC
- Pulley: 8-rib serpentine
- Discharge port: #8 O-ring (3/4 in.)
- Suction port: #10 O-ring (7/8 in.)
- Port orientation: Side exit
- Finish: Chrome Plated
- Origin: Imported
- Application: Universal
- Warranty: CVF lifetime warranty
- Part number: SANDEN-508-134A-C-8RIB
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What refrigerant is this CVF compressor built for?
It is built for R134A refrigerant.
What are the displacement and cylinder count?
It displaces 138cc per revolution and uses 5 cylinders.
What pulley comes on this compressor?
This part number has a 8-rib serpentine pulley.
Is this compressor made in the USA?
No. CVF states this compressor is imported, though it is still covered by the CVF lifetime warranty.
What port sizes does it use?
It has a #8 O-ring (3/4 inch) discharge port and a #10 O-ring (7/8 inch) suction port with a side exit orientation.
