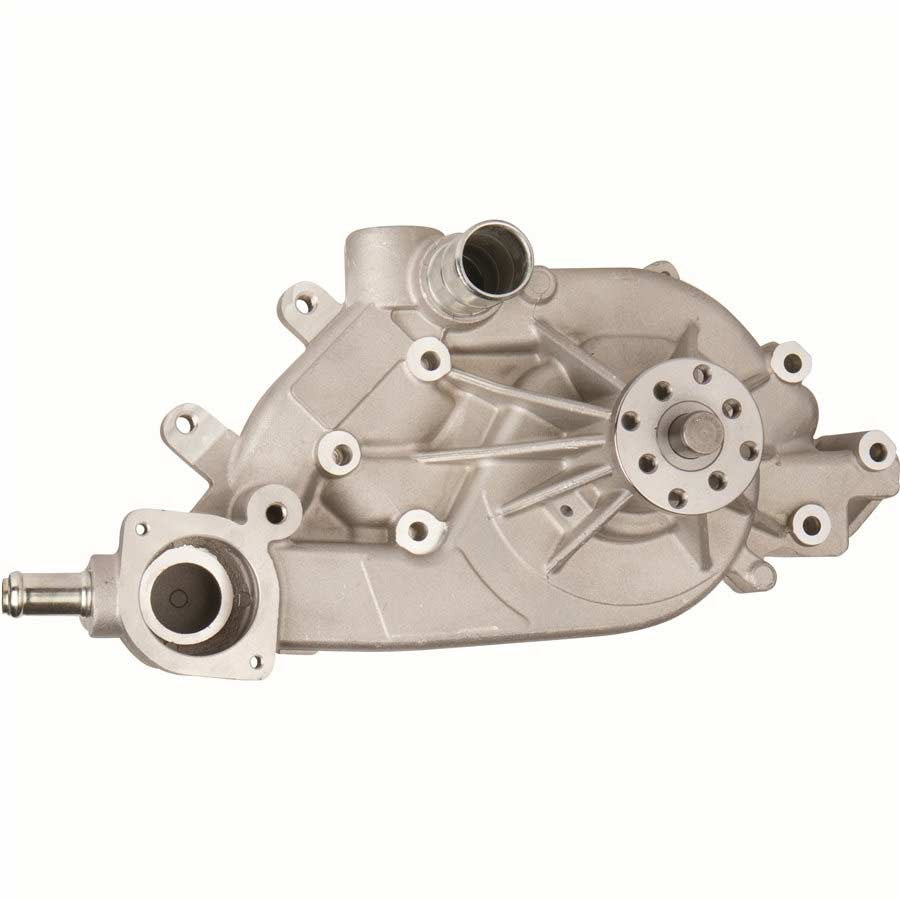

    CVF Racing High-Flow Aluminum Mechanical Water Pump, Satin Cast | Chevy LS1 V8 | LSX-WP

    Vendor: CVF Racing
    Part Number: LSX-WP
    $212.69

    In Stock

    Not sure it fits your vehicle?
    Email sales@berryperformancesales.com with your year, make, model and engine, and we'll help you check fitment before you order.
    Fast Fulfillment: In-stock orders typically ship within 1 to 2 business days.
    Free Shipping on Orders Over $99 | Excludes freight shipments
    International Shipping Available: email sales@berryperformancesales.com for a quote.
    Payment & Security

    Secure, encrypted checkout. Card details go straight to the payment processor and are never stored by us.

    • Amazon
    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Venmo
    • Visa
    Share to:
    View Full Details
    Product DetailsFAQReviewsRelated Products

    This high-flow aluminum mechanical water pump is built for Chevy LS1 V8 engines, with reverse (counterclockwise) rotation and a Satin Cast finish. It replaces the integrated, irregular factory pulley with a dedicated mounting hub so compatible CVF Racing pulleys can be bolted on.

    Specifications:

    • Application: Chevy LS1 V8
    • Rotation: Reverse (counterclockwise)
    • Hub height: 6-1/2 in.
    • Pilot shaft diameter: 3/4 in.
    • Pulley configuration: Dedicated hub for compatible CVF Racing pulleys
    • Inlet diameter: 1-1/16 in.
    • Material: Aluminum
    • Finish: Natural satin cast aluminum
    • Warranty: CVF Racing Lifetime Warranty
    • Part number: LSX-WP

    Application Notes:

    • Uses a dedicated pulley mounting hub with a 3/4 in. pilot shaft in place of the integrated factory LS1 pulley, so compatible CVF Racing pulleys can be installed.
    • The factory LS1 water pump pulley is not included.
    • Designed for compatible CVF Racing LS serpentine systems.
    • Cross-references listed by CVF: GM OEM 12559836 and 12562459, ACDelco 252-846, Gates 45005.
    • CVF lists these as application references, not confirmed direct replacements; verify hub height, pilot diameter, inlet size and accessory drive compatibility before ordering.

    Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.

    FAQ

    Which engines does the LSX-WP water pump fit?

    It is designed for Chevy LS1 V8 engines.

    What is the hub height of this water pump?

    The hub height is 6-1/2 in.

    What rotation does this pump use?

    It uses reverse (counterclockwise) rotation.

    Is this a direct replacement for the part numbers CVF lists?

    No, CVF lists those numbers as application references only and recommends verifying dimensions and accessory drive compatibility before ordering.
