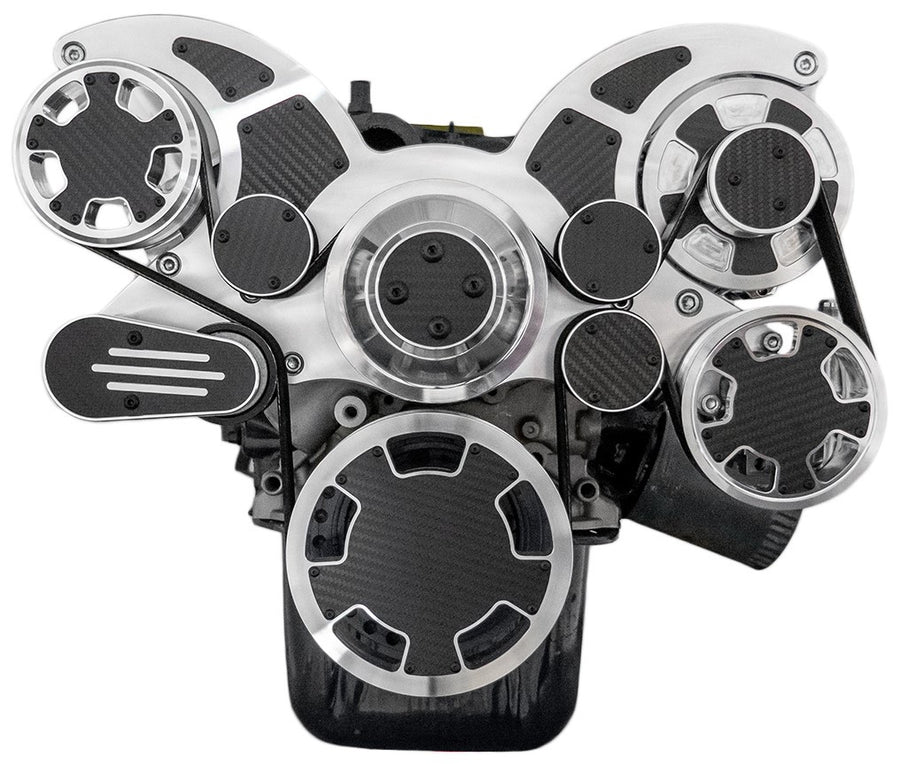

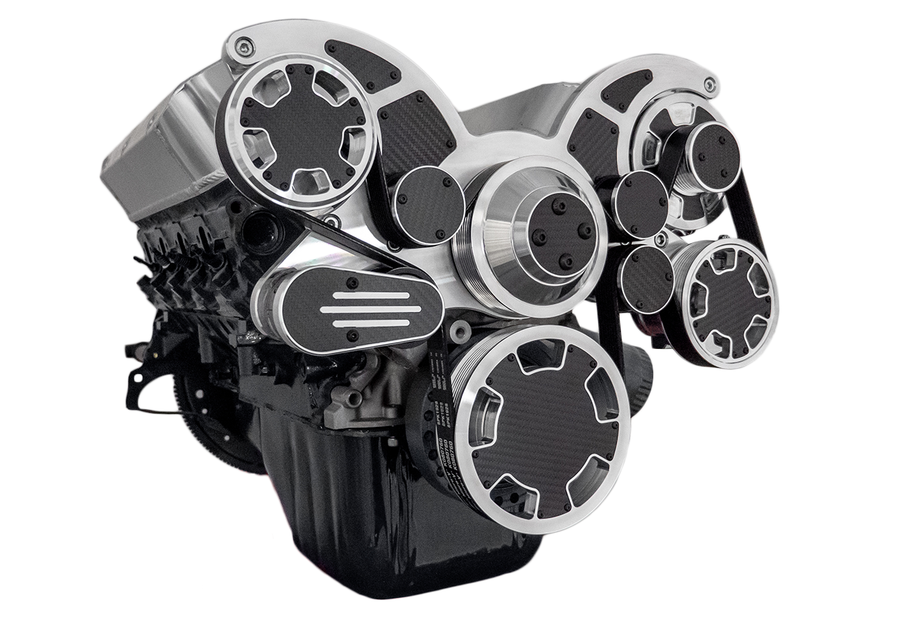

This CVF Racing Wraptor is an all-inclusive 8-rib serpentine system for Ford 289, 302 and 351W small blocks, finished in polished aluminum with carbon fiber accents. This version is set up for power steering and the alternator, with an A/C delete idler, and it includes the water pump, a 1-wire CS130 alternator and a GM Type II power steering pump.
The one piece billet bracket places the alternator on the driver's side above the power steering pump, and a spring loaded tensioner maintains belt tension under hard acceleration and deceleration. The carbon fiber color is offered in black, red, blue, green or orange.
Specifications:
- System: Wraptor all-inclusive serpentine
- Belt type: 8-rib serpentine
- Accessories: Power steering and alternator (A/C delete idler)
- Alternator position: Driver's side, above the power steering pump
- Alternator: 1-wire CS130, 160 amp
- Power steering pump: GM Type II
- Finish: Polished with carbon fiber
- Carbon fiber colors: Black, red, blue, green or orange
- Engine: Ford 289, 302 and 351W small block
- Part number: CF-302-WRAPTOR-PS
Kit Includes:
- High flow aluminum water pump
- 160 amp chrome 1-wire CS130 alternator
- Chrome plated aluminum GM Type II power steering pump
- Remote mount reservoir with bracket
- Premium 8-rib serpentine belt
- Water pump pulley and cover
- Crank pulley
- Crank pulley spacer
- Alternator pulley and cover
- Power steering pulley
- One piece billet aluminum bracket
- A/C delete idler pulley and bracket
- Universal alternator fan
Not Included: The damper and the power steering lines from the pump to the reservoir are not included.
Application Notes:
- Works with a mechanical or electric fuel pump.
- Works with a mechanical or electric fan; a mechanical fan may need a long fan spacer.
- Works with factory or aftermarket balancers.
- CVF states it also works on Clevor engines with 302 and 351W deck height, as well as Boss 302 deck height.
- Compatible with Hydro-boost.
- With the Saginaw power steering pump choice, the power steering pulley does not get a carbon fiber insert.
- Upgrading this system to A/C later requires purchasing a compressor.
- CVF accessory requirements: GM CS130 style alternator with 6 to 12 o'clock mounting and 6.6" bolt spacing, GM Type II power steering pump, and a 5.7" tall, clockwise rotation water pump with 5/8" pilot and driver's side lower hose. CVF asks buyers to call before ordering without accessories.
- Additional choices for this kit (water pump, damper, power steering and alternator) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does the CVF Racing CF-302-WRAPTOR-PS include?
It includes the water pump, a CS130 alternator, a GM Type II power steering pump with remote reservoir, the 8-rib belt, all pulleys and covers, the one piece billet bracket and an alternator fan.
What carbon fiber colors are available?
The carbon fiber accents are offered in black, red, blue, green or orange.
Is the damper included?
No. The damper and the power steering lines from pump to reservoir are not included.
Can I use a mechanical fan?
Yes. CVF says it works with a mechanical or electric fan, and a mechanical fan may need a long fan spacer.
