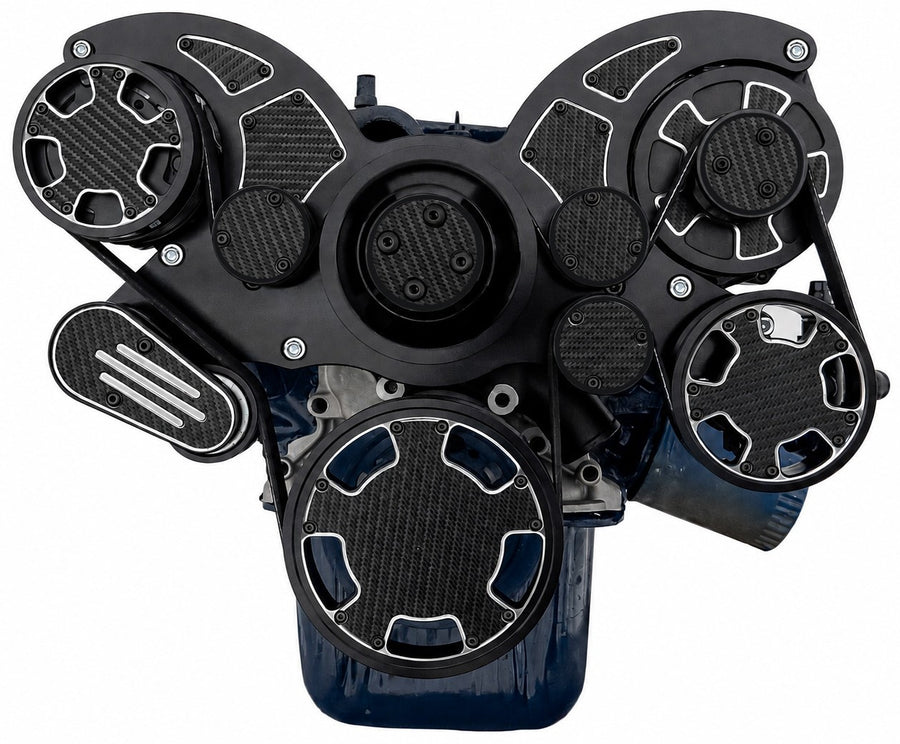

This CVF Racing Wraptor, finished in black diamond with carbon fiber inlays, is an all inclusive 8 rib serpentine system for the Ford 351 Cleveland, 351M and 400. Every configuration comes with a high flow aluminum water pump, a 160 amp 1-wire CS130 alternator, the one piece billet aluminum bracket, pulleys, tensioner and hardware; A/C and power steering configurations add a black powder coated peanut style compressor and a black powder coated GM Type II pump with a remote reservoir.
A spring loaded tensioner holds belt tension through hard acceleration and deceleration and compensates for stretch, and the alternator sits on the driver's side above the power steering pump. The carbon fiber version adds authentic carbon fiber inlays in a choice of five colors.
Specifications:
- Engine: Ford 351 Cleveland, 351M and 400
- Belt type: 8 rib serpentine
- Mounting position: Mid mount
- Water pump: High flow aluminum, standard rotation (included)
- Alternator: 1-wire CS130, driver side above the power steering pump
- A/C compressor: Black powder coated peanut style (A/C configurations)
- Power steering pump: Black powder coated GM Type II with remote reservoir (power steering configurations)
- Balancer: Factory or aftermarket 4 bolt
- Configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; alternator only
- Carbon fiber inlay colors: Black, red, blue, green or orange
- Finish: Black Diamond with Carbon Fiber Inlays
- Part number: CF-BD-351C-WRAPTOR
Included in Every Configuration:
- High flow aluminum water pump
- 160 amp black 1-wire CS130 alternator
- Premium 8 rib belt
- Water pump pulley and cover
- Crank pulley
- Crank pulley spacer
- Alternator pulley and cover
- One piece billet aluminum bracket
- Universal alternator fan
- Spring loaded tensioner with cover
- Idler pulley(s) with cover
- All mounting hardware
- Carbon fiber inlays
Included by Configuration:
- Black powder coated A/C compressor (A/C configurations)
- A/C compressor clutch cover (A/C configurations)
- Black powder coated GM Type II power steering pump (power steering configurations)
- Remote mount reservoir with bracket (power steering configurations)
- Power steering pulley (power steering configurations)
Not Included: Power steering lines from the pump to the reservoir are not included.
Application Notes:
- Works with a mechanical or electric fuel pump.
- Works with a mechanical or electric fan; CVF highly recommends an electric fan.
- Works with a factory or aftermarket 4 bolt balancer.
- Power steering lines from the pump to the reservoir are not included.
- Compatible with Hydroboost.
- When supplying your own accessories, CVF lists these requirements: a GM CS130 style alternator with 6 to 12 o'clock mounting and 6.6 inch bolt spacing, a GM Type II power steering pump, a peanut style (7B10) compressor with an 8 rib clutch, and a 5.7 inch tall clockwise rotation water pump with a 5/8 inch pilot and the lower radiator hose on the driver side.
- Covered by CVF patent US D846,000 S.
- Attached reservoir styles, power steering line kits and a billet thermostat housing are offered by CVF separately.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engines does this Wraptor fit?
It fits the Ford 351 Cleveland, 351M and 400.
Is a water pump included?
Yes. A high flow aluminum water pump is included in every configuration.
Can I run a mechanical fan?
Yes. CVF states it works with mechanical or electric fans, though an electric fan is highly recommended.
What balancer does it need?
It works with a factory or aftermarket 4 bolt balancer.
What carbon fiber colors are offered?
The carbon fiber inlays are offered in black, red, blue, green or orange.
