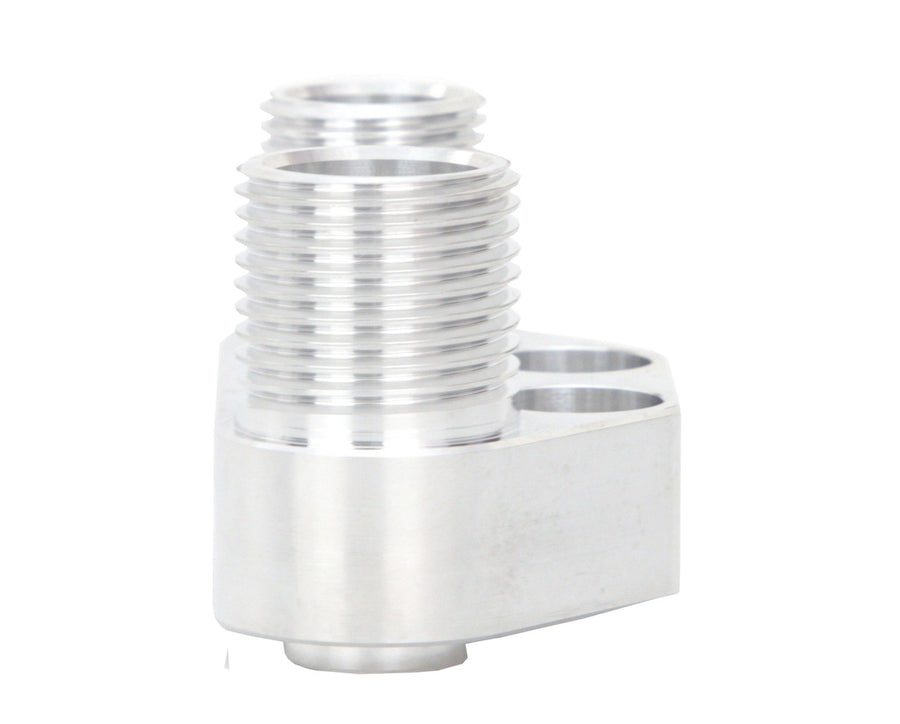

CVF Racing Straight AC Compressor Fitting Manifold, C3 Ceramic Clear Coat | Sanden 7B10 Peanut Style Compressors | 6061-T6 Aluminum | C-AIR-FITTING-ST

CVF Racing machines this straight fitting manifold to connect AC lines at the back of Sanden 7B10 Peanut style compressors with a straight exit. It is CNC machined in the USA from 6061-T6 aluminum, finished in C3 Ceramic Clear Coat, and ships with two M8 bolts for mounting.

Specifications:

• Product type: AC compressor fitting manifold, straight
• Fits: All Sanden 7B10 Peanut style compressors
• Material: 6061-T6 aluminum
• Construction: CNC machined in the USA
• Discharge port: #8 O-ring (3/4 in.)
• Suction port: #10 O-ring (7/8 in.)
• Finish: C3 Ceramic Clear Coat
• Warranty: CVF lifetime guarantee
• Part number: C-AIR-FITTING-ST

Kit Includes:

• Straight fitting manifold
• 2 M8 x 20mm mounting bolts

Application Notes:

• Requires a #8 O-ring (3/4 in.) at the discharge port and a #10 O-ring (7/8 in.) at the suction port.
• A 90-degree version of this manifold is also offered by CVF for the same compressors.

FAQ

What does the CVF C-AIR-FITTING-ST fit?

It fits all Sanden 7B10 Peanut style AC compressors.

What is included with this fitting manifold?

The kit includes the straight fitting manifold and two M8 x 20mm bolts for mounting.

What O-ring port sizes does it use?

The discharge port uses a #8 O-ring (3/4 inch) and the suction port uses a #10 O-ring (7/8 inch).

Where is it made and from what material?

CVF CNC machines this manifold in the USA from 6061-T6 aluminum.

What finish is this part number?

C-AIR-FITTING-ST is the C3 Ceramic Clear Coat version of the straight manifold.
