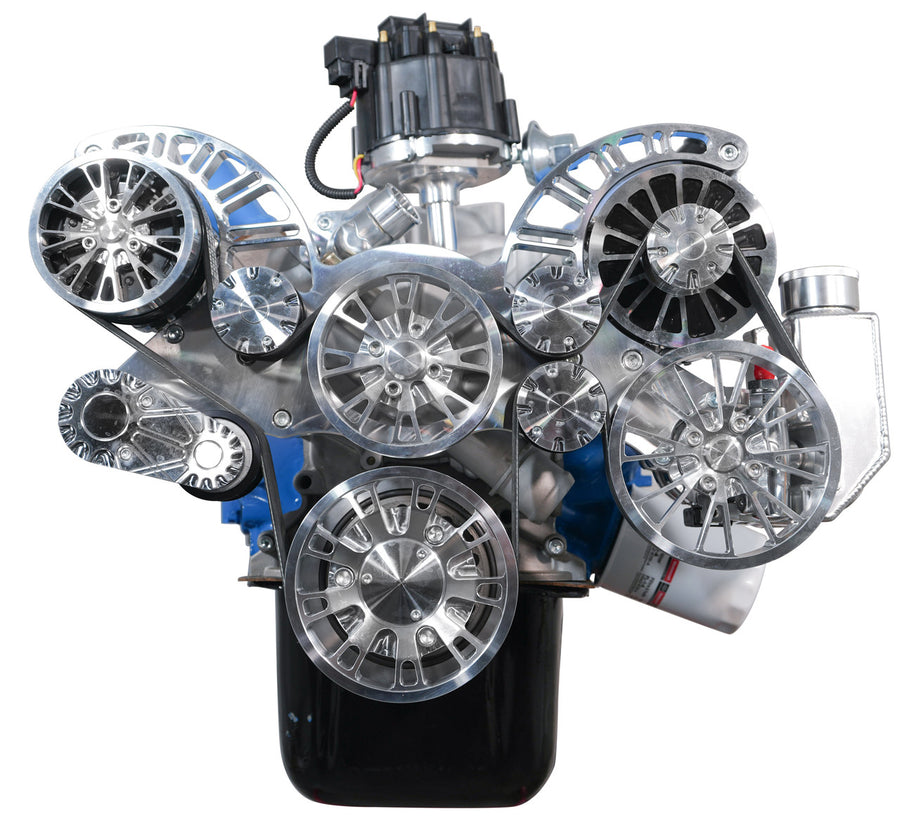

The CVF Racing Reaper is an all-inclusive 8-rib serpentine system for standard rotation (pre-1986 style) Ford small blocks. It pairs a one piece billet aluminum bracket with spoked billet pulleys, stainless steel hardware and billet spacers, and it comes with the water pump and alternator, plus the power steering pump and A/C compressor in configurations that use them.
The system is offered in four configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; or alternator only. It is CNC machined in the USA, and CVF backs the Reaper with a lifetime warranty.
Specifications:
- System: Reaper all-inclusive serpentine
- Belt type: 8-rib serpentine
- Mounting position: Mid mount
- Configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; alternator only
- Alternator: 1-wire CS130, 160 amp standard
- Power steering pump: GM Type II
- A/C compressor: Sanden style peanut with 8-rib clutch
- Water pump rotation: Standard
- Finish: C3 Ceramic Clear Coat
- Engine: Ford 302 and 351W small block
- Design patents: D1,090,233, D1,090,234, D1,090,235
- CNC machined in USA
- Part number: C-302-RP
Included in Every Configuration:
- Small block Ford water pump, short, late or early style per selection
- 1-wire CS130 alternator (160 amp standard)
- Premium 8-rib belt
- 8-rib water pump pulley
- 8-rib crank pulley
- 8-rib alternator pulley
- One piece billet aluminum bracket
- Billet alternator fan
Included by Configuration:
- GM Type II power steering pump (power steering configurations)
- Polished remote mount reservoir with mounting bracket (power steering configurations)
- 8-rib power steering pulley (power steering configurations)
- Sanden style peanut A/C compressor with 8-rib clutch (A/C configurations)
- Polished A/C compressor fitting (A/C configurations)
- Billet compressor clutch cover (A/C configurations)
- Spring loaded belt tensioner with adjustable bracket
- Black anodized hub adapter for mounting the crank pulley to an OEM or aftermarket balancer
- Stainless steel mounting hardware
- Billet spacers (anodized clear)
Not Included: The damper and the power steering lines from the pump to the reservoir are not included.
Application Notes:
- Requires electric cooling fans.
- Compatible with Hydro-boost.
- Additional choices for this kit (water pump, damper, alternator and power steering) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 302 and 351W small block engines and does not name specific vehicles.
FAQ
What comes with the CVF Racing C-302-RP Reaper system?
Every configuration includes the water pump, a CS130 alternator, the 8-rib belt, water pump, crank and alternator pulleys, the one piece billet bracket and a billet alternator fan. Power steering and A/C parts are added in the configurations that use them.
What configurations are available?
The Reaper is offered for A/C, power steering and alternator; power steering and alternator; A/C and alternator; or alternator only.
Is the damper included?
No. The damper is not included, and the damper type is chosen when ordering.
Does it work with a mechanical fan?
No. CVF states the Reaper requires electric cooling fans.
Is it compatible with Hydro-boost?
Yes. CVF lists the Reaper as compatible with Hydro-boost, and the power steering lines from pump to reservoir are not included.
