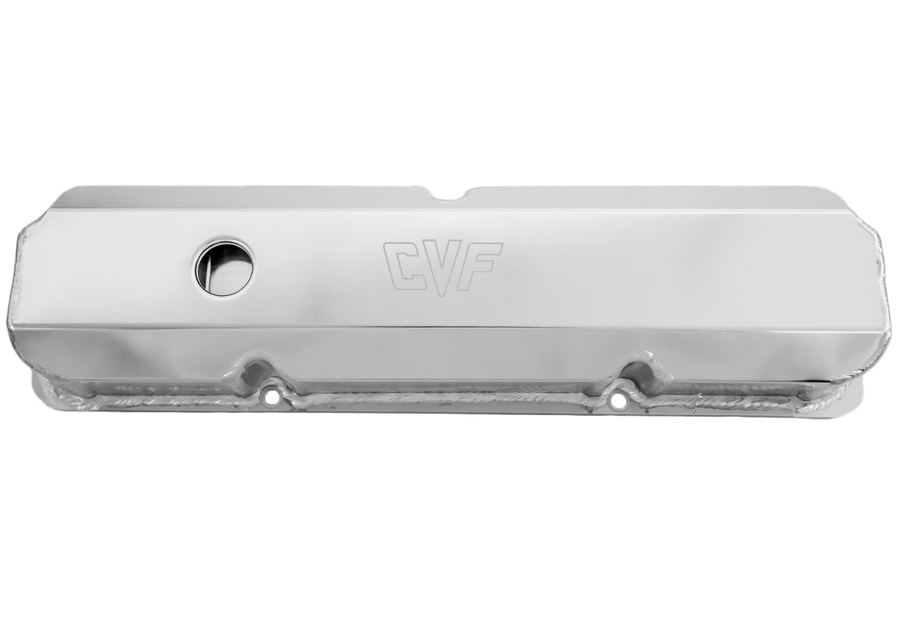

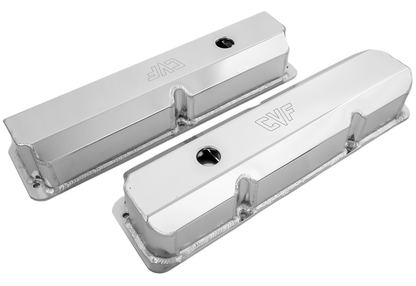

These CVF Racing tall valve covers are fabricated from 6061-T6 aluminum and hand TIG welded for Ford FE 390, 427 and 428 engines. They are sold as a pair with a brushed aluminum finish.
CVF states they clear most popular rocker arm combinations. Both covers have a breather hole to relieve crankcase pressure, and CVF sells matching push-in breathers with or without a PCV valve. Fasteners come with the covers, while gaskets and breather grommets are purchased separately.
Specifications:
- Engine: Ford FE 390, 427 and 428
- Style: Tall fabricated
- Construction: Hand TIG welded
- Material: 6061-T6 aluminum
- Finish: Brushed aluminum
- Breather holes: Yes, both covers
- Hardware included: Yes
- Gaskets included: No
- Breather grommets included: No
- Exterior height: 3.54 in.
- Interior height: 3.44 in.
- Baffle height: 2.75 in.
- Baffle distance from front: 4.14 in.
- Quantity: Pair
- Part number: FE-VC-FAB
Kit Includes:
- Two fabricated aluminum valve covers (pair)
- Mounting fasteners
Not Included: Valve cover gaskets and breather grommets are not included. CVF recommends Summit part number SUM-G3429 grommets. Breathers are sold separately.
FAQ
What engines do these valve covers fit?
They are made for Ford FE 390, 427 and 428 engines and are sold as a pair.
Are gaskets included?
No. Gaskets and breather grommets are not included, though the mounting fasteners are. CVF recommends Summit SUM-G3429 grommets.
How tall are they?
The exterior height is 3.54 in. and the interior height is 3.44 in., with a 2.75 in. baffle set 4.14 in. from the front.
Do they have breather provisions?
Yes. Each cover has a breather hole, and CVF offers billet push-in breathers with or without a PCV valve.
What other finishes are offered?
CVF also sells these covers as B-FE-VC-FAB in Stealth Black Cerakote.
