The CVF Racing Wraptor is an all-inclusive 8-rib serpentine system for standard rotation Ford 289, 302 and 351W small blocks. It is built on a one piece billet aluminum bracket that places the alternator on the driver's side above the power steering pump, and it supplies the water pump and a 1-wire CS130 alternator, plus a GM Type II power steering pump and peanut style A/C compressor in the configurations that use them.

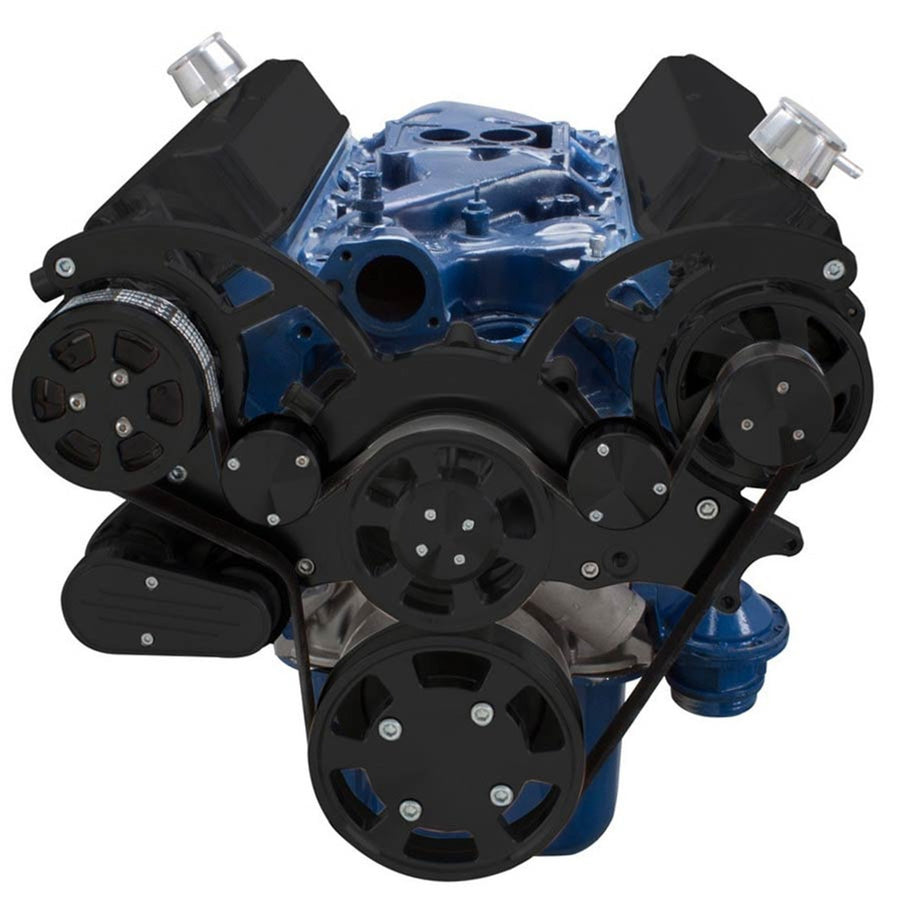

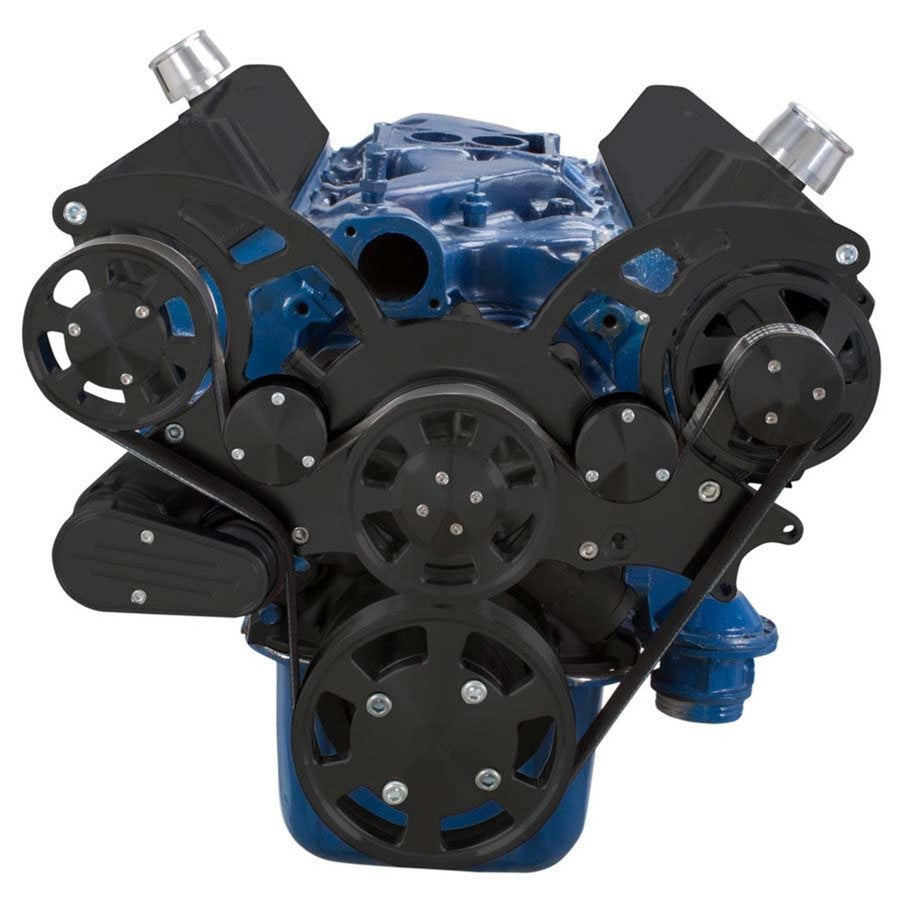

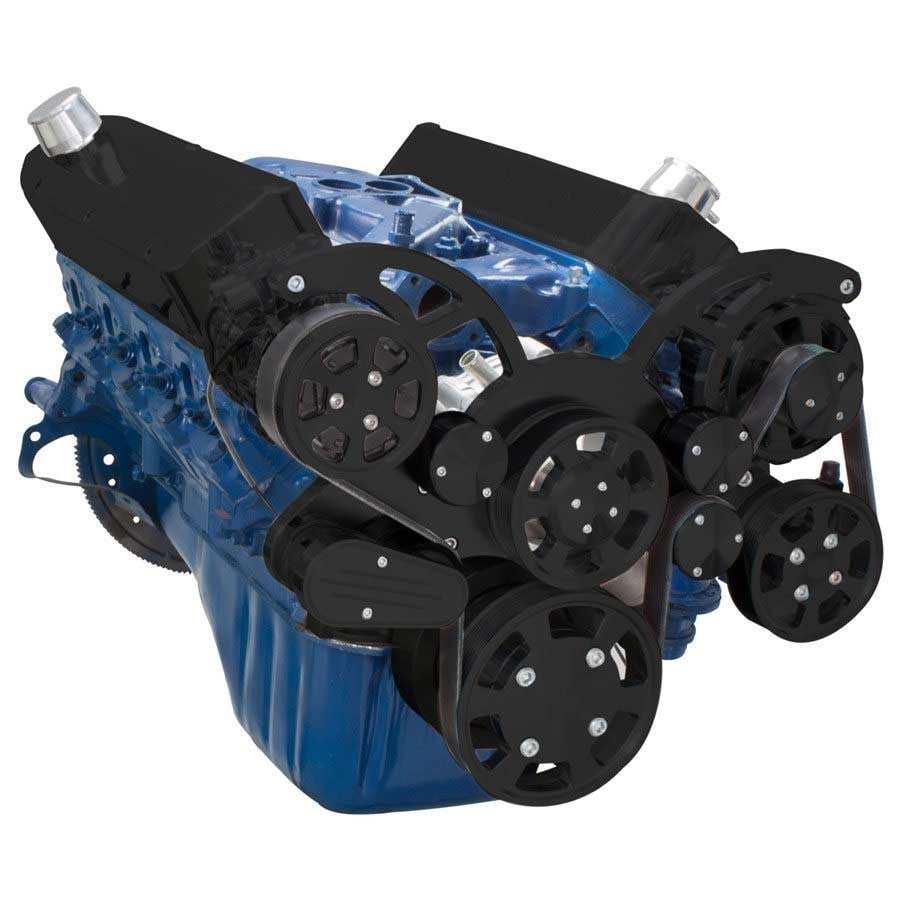

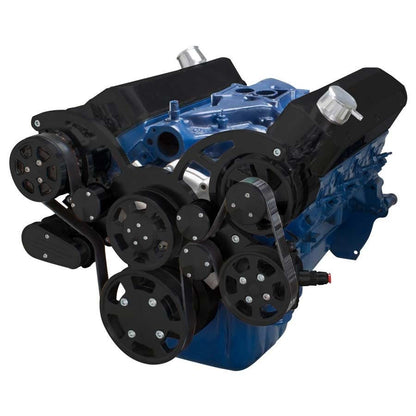

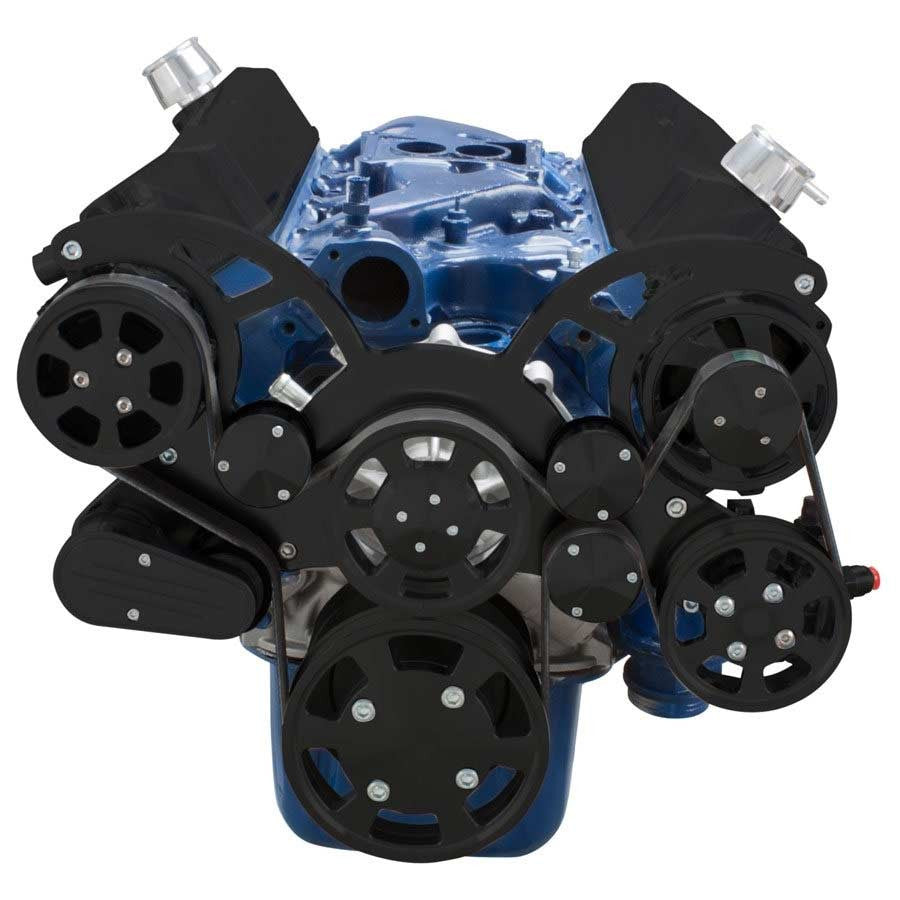

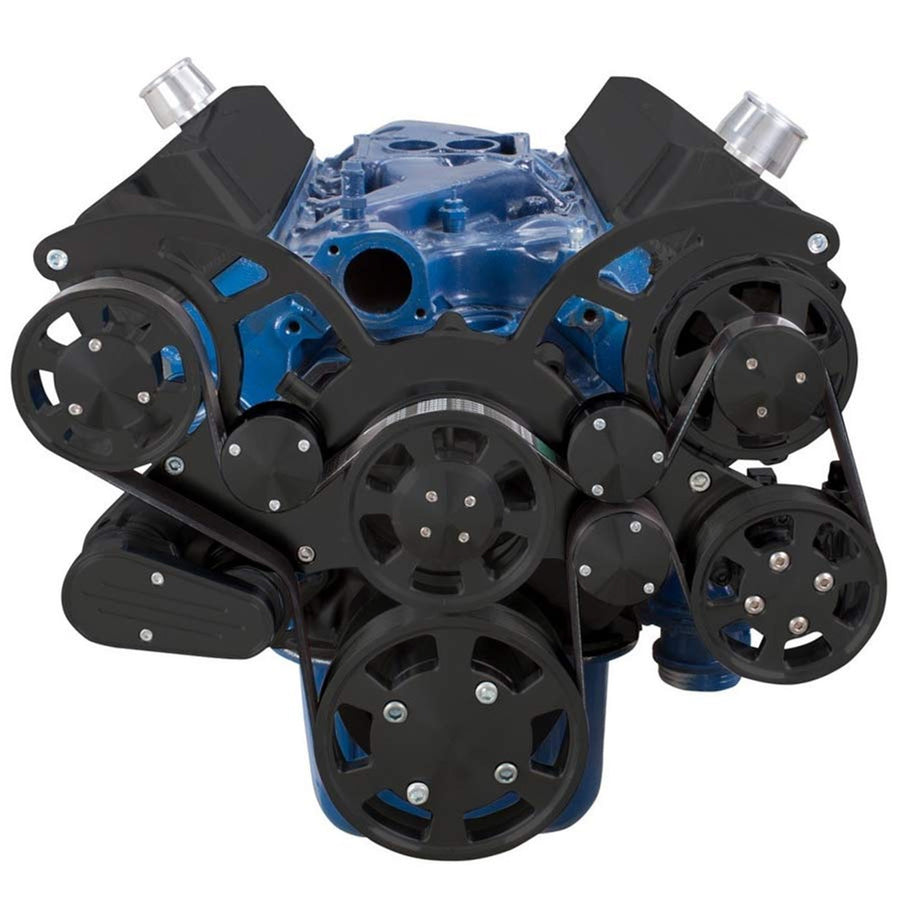

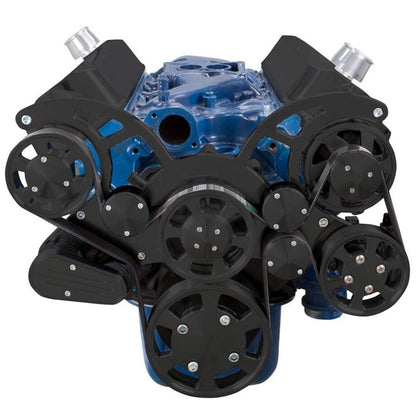

A spring loaded tensioner holds belt tension under hard acceleration and deceleration and takes up belt stretch. CVF states its 8-rib pulleys grip better, stretch less and resist slipping compared with a 6-rib layout. The Wraptor is offered in four configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; or alternator only.
Specifications:
- System: Wraptor all-inclusive serpentine
- Belt type: 8-rib serpentine
- Mounting position: Mid mount, alternator on driver's side above the power steering pump
- Configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; alternator only
- Alternator: 1-wire CS130, 160 amp
- Power steering pump: GM Type II
- A/C compressor: Peanut style (7B10) with 8-rib clutch
- Water pump rotation: Standard
- Finish: Stealth Black
- Engine: Ford 289, 302 and 351W small block
- Design patent: US D846,000 S
- Part number: B-302-WRAPTOR
Included in Every Configuration:
- High flow aluminum water pump, black
- 160 amp black powder coated 1-wire CS130 alternator
- Premium 8-rib belt
- Water pump pulley and cover
- Crank pulley
- Crank pulley spacer
- Alternator pulley and cover
- One piece billet aluminum bracket
- Universal alternator fan
- Spring loaded tensioner with cover
- Idler pulley or pulleys with covers
- Mounting hardware
Included by Configuration:
- Black powder coated A/C compressor (A/C configurations)
- A/C compressor clutch cover (A/C configurations)
- Black powder coated aluminum GM Type II power steering pump (power steering configurations)
- Remote mount reservoir with bracket (power steering configurations)
- Power steering pulley (power steering configurations)
Not Included: The damper and the power steering lines from the pump to the reservoir are not included.
Application Notes:
- Works with a mechanical or electric fuel pump.
- Works with a mechanical or electric fan; CVF highly recommends an electric fan.
- Works with factory or aftermarket balancers.
- CVF states it also works on Clevor engines with 302 and 351W deck height, as well as Boss 302 deck height.
- Compatible with Hydro-boost.
- The water pump pulley depends on the water pump selected: the windowed pulley is for the short water pump, while early and late pumps use a solid bowl style pulley.
- CVF accessory requirements: GM CS130 style alternator with 6 to 12 o'clock mounting and 6.6" bolt spacing, GM Type II power steering pump, and peanut style (7B10) compressor with 8-rib clutch.
- CVF offers a mechanical fan spacer separately.
- Additional choices for this kit (water pump, damper, alternator and power steering) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What comes with the CVF Racing B-302-WRAPTOR Wraptor system?
Every configuration includes the water pump, a 160 amp CS130 alternator, the water pump, crank and alternator pulleys, the one piece billet bracket and the alternator fan. Power steering and A/C components are added in the configurations that use them.
Where does the Wraptor put the alternator?
The alternator sits on the driver's side above the power steering pump.
Can I run a mechanical fan?
Yes. CVF says it works with a mechanical or electric fan, though an electric fan is highly recommended.
Is the damper included?
No. The damper is not included, and the damper type is chosen when ordering.
Does it work with Hydro-boost?
Yes. CVF states the Wraptor will work with Hydro-boost. Power steering lines from pump to reservoir are not included.
