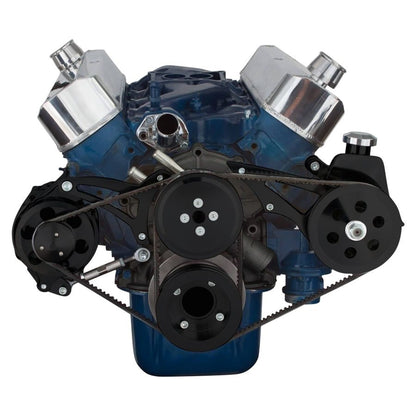

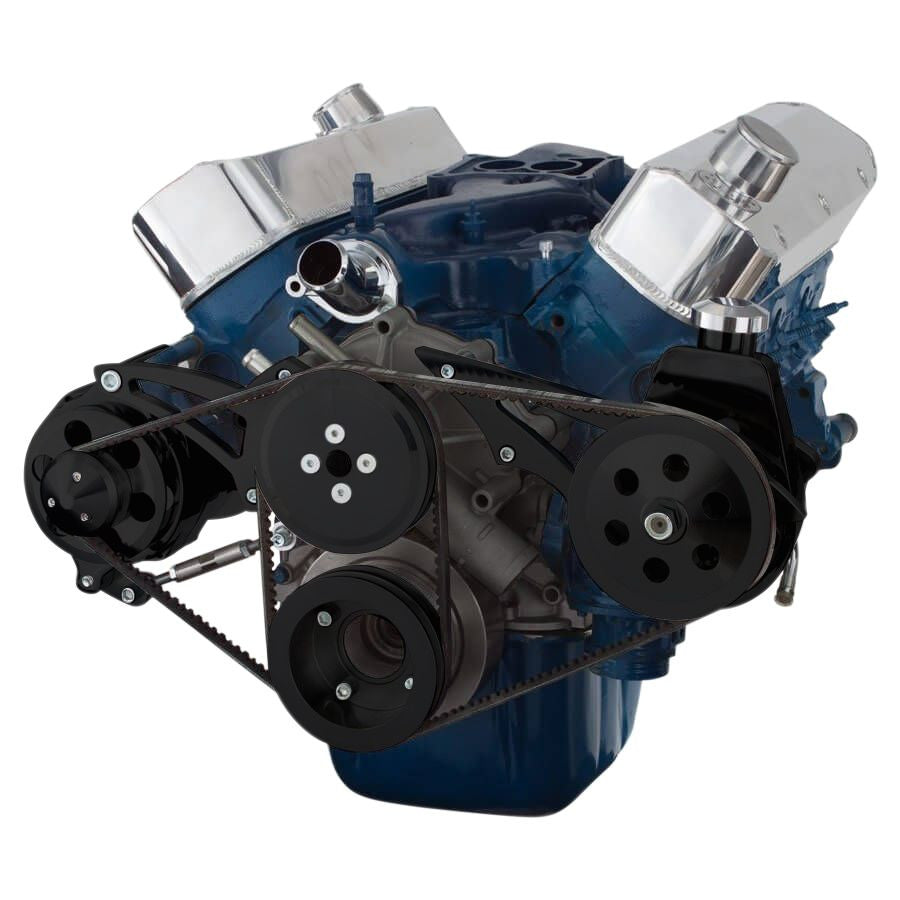

This CVF Racing V-belt system supplies the pulleys, brackets and bolts for an alternator and power steering pump on a Ford 289, 302 or 351W small block with a 4.5" tall shorty water pump. The alternator mounts mid height on the passenger side.
The power steering pulley is a keyway style for Saginaw pumps; CVF asks buyers with press fit pumps to call. The system is offered for 289 and 302 or 351W engines and for 3 bolt or 4 bolt factory and aftermarket dampers.
Specifications:
- Belt type: V-belt
- Accessories: Alternator and power steering
- Water pump: Shorty, 4.5" tall, standard rotation (not included)
- Power steering pump: Keyway style Saginaw (not included)
- Alternator position: Mid mount, passenger side
- Pulleys: 2 groove water pump, 2 groove crank, 1 groove alternator
- Engine options: 289/302 or 351W
- Damper options: 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket
- Finish: Stealth Black
- Part number: B-302-SHORTY-PS-SYSTEM
Kit Includes:
- 2 groove water pump pulley
- 2 groove crank pulley
- 1 groove alternator pulley
- 302/351W alternator bracket
- 302/351W power steering bracket
- Keyway style power steering pulley
- ALTFAN universal alternator fan
- Mounting bolts
Not Included: The water pump, power steering pump, alternator and balancer are not included.
Application Notes:
- For press fit power steering pumps, contact CVF Racing before ordering.
- CVF offers a short high flow aluminum water pump, a Saginaw pump and an alternator separately.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
FAQ
What water pump does the CVF Racing B-302-SHORTY-PS-SYSTEM use?
It is designed for a 4.5" tall shorty water pump, which is sold separately.
Which power steering pump fits?
The included pulley is keyway style for Saginaw pumps. CVF asks buyers with press fit pumps to call first.
What is included?
It includes 2 groove water pump and crank pulleys, a 1 groove alternator pulley, alternator and power steering brackets, a keyway power steering pulley, an ALTFAN fan and mounting bolts.
Which engines and dampers are supported?
It is offered for 289 and 302 or 351W engines with 3 bolt or 4 bolt factory and aftermarket dampers.
