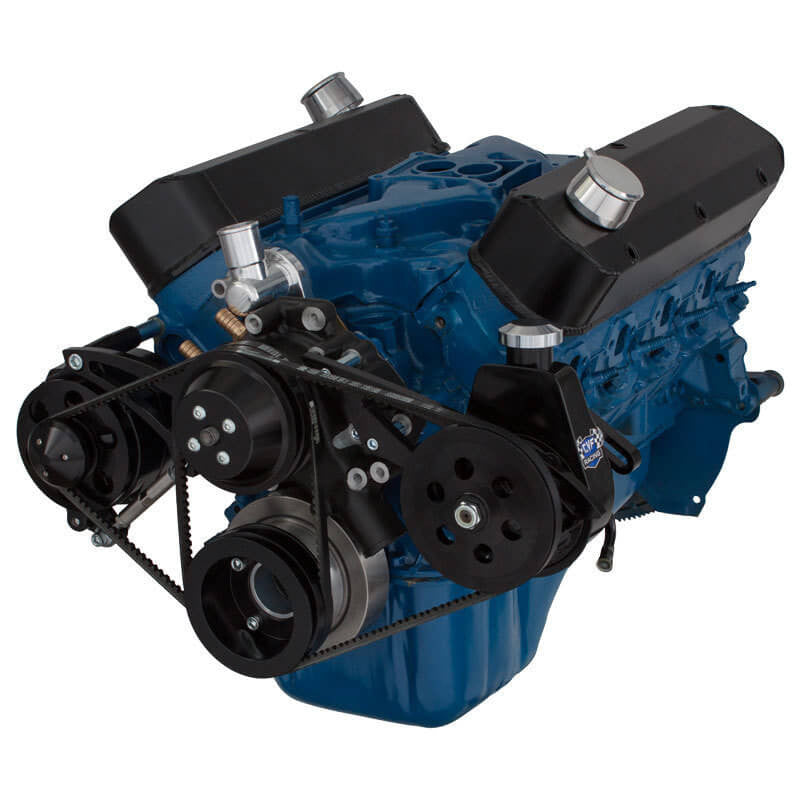

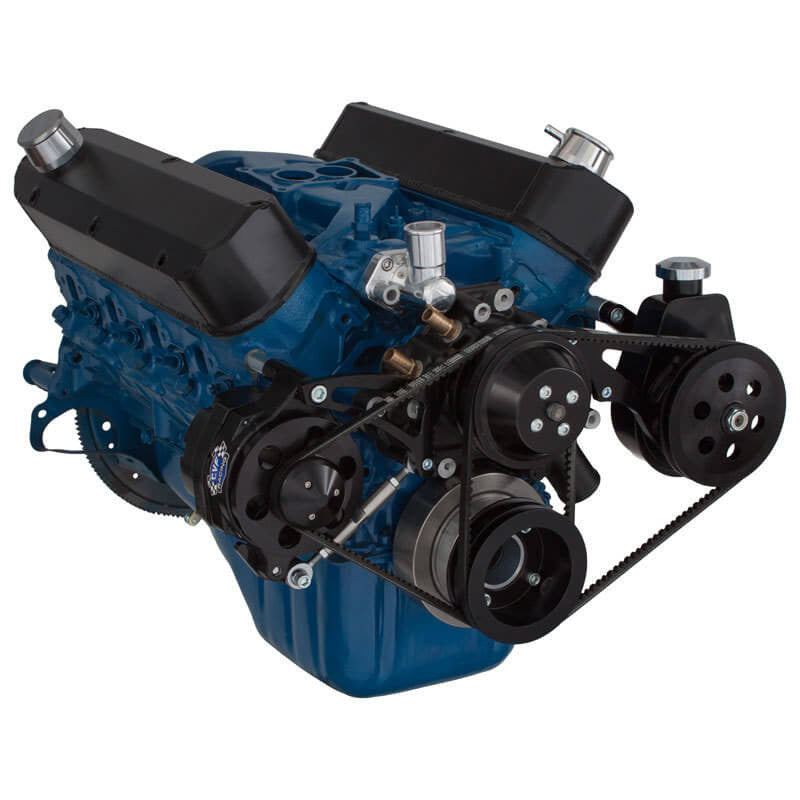

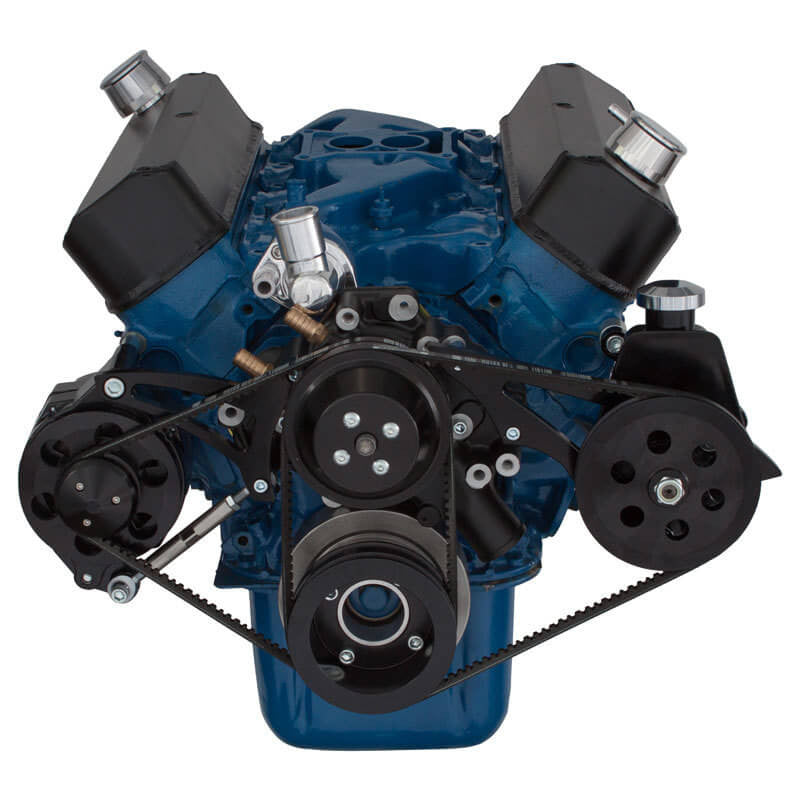

This CVF Racing V-belt system supplies the pulleys, brackets and bolts for an alternator and power steering pump on a Ford 289, 302 or 351W small block with a standard rotation water pump. The alternator mounts mid height on the passenger side.
CVF designs its power steering pulley to work with Ford pumps as well as keyway Saginaw pumps, with a press fit version for the Ford pump and a keyway version for the Saginaw pump.
Specifications:
- Belt type: V-belt
- Accessories: Alternator and power steering
- Alternator position: Mid mount, passenger side
- Water pump: Mechanical, standard rotation
- Pulleys: 2 groove water pump, 2 groove crank, 1 groove alternator
- Power steering pulley: Press fit (Ford pump) or keyway (Saginaw pump)
- Finish: Stealth Black (bright dip black anodized)
- Engine: Ford 289, 302 and 351W small block
- Part number: B-302-PS-SYSTEM
Kit Includes:
- 2 groove water pump pulley
- 2 groove crank pulley
- 1 groove alternator pulley
- 302/351W alternator bracket
- 302/351W power steering bracket
- Power steering pulley
- ALTFAN universal alternator fan
- Mounting bolts
Not Included: The alternator, power steering pump, water pump and damper are not included.
Application Notes:
- CVF offers a water pump, power steering pump, alternator and billet thermostat housing separately.
- Additional choices for this kit (engine, damper, water pump, power steering pump and pulley ratio) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does the CVF Racing B-302-PS-SYSTEM include?
It includes 2 groove water pump and crank pulleys, a 1 groove alternator pulley, alternator and power steering brackets, a power steering pulley, an ALTFAN fan and the mounting bolts.
Which power steering pumps does it work with?
CVF builds the power steering pulley to suit Ford pumps or keyway Saginaw pumps, and the pump type is chosen when ordering.
What is not included?
The alternator, power steering pump, water pump and damper are purchased separately.
Is a pulley ratio choice available?
Yes. CVF offers an underdrive ratio or a high flow ratio.
