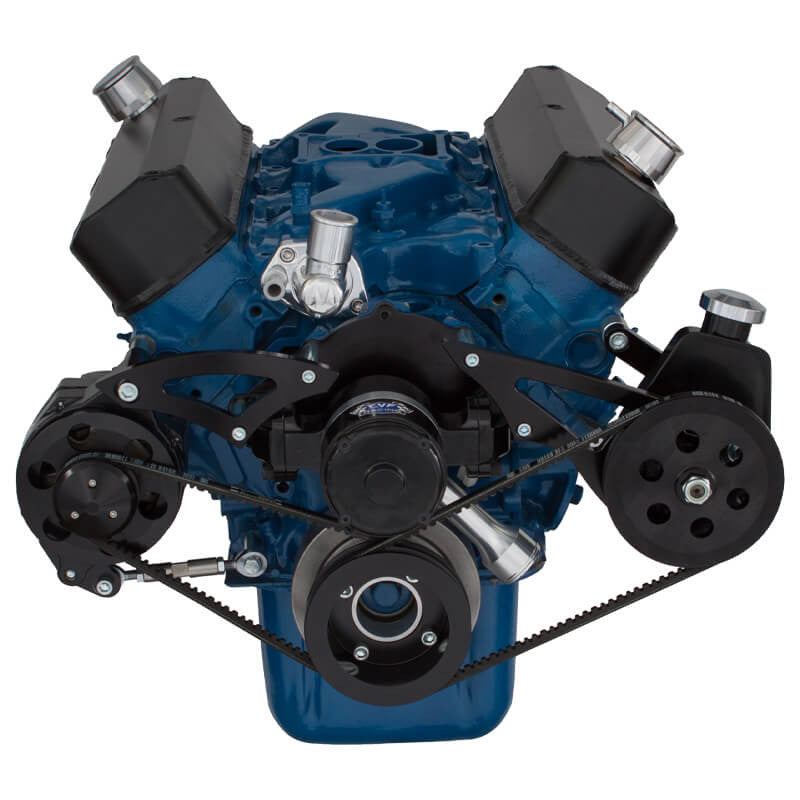

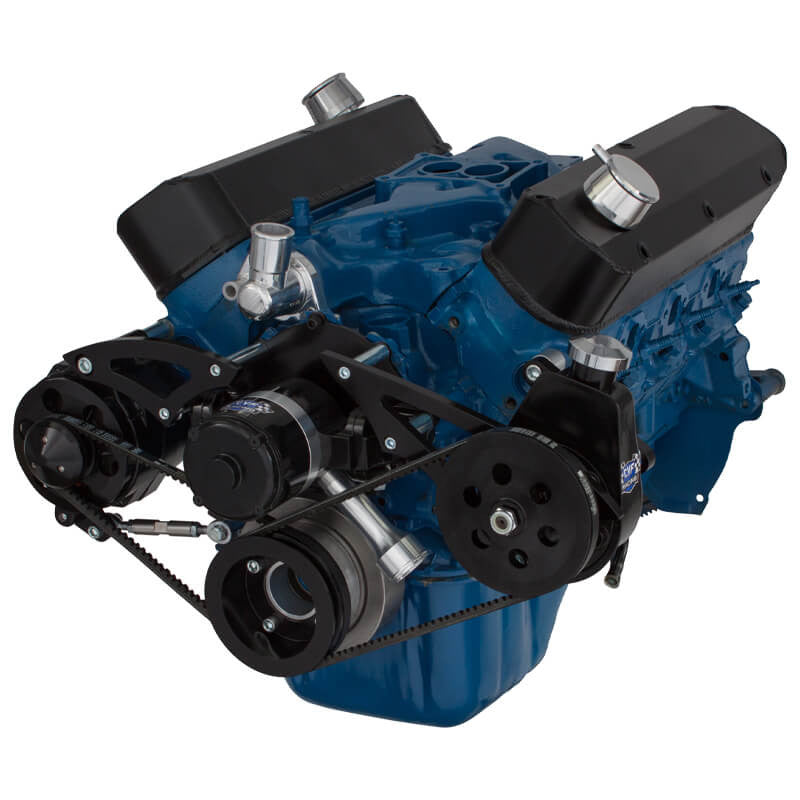

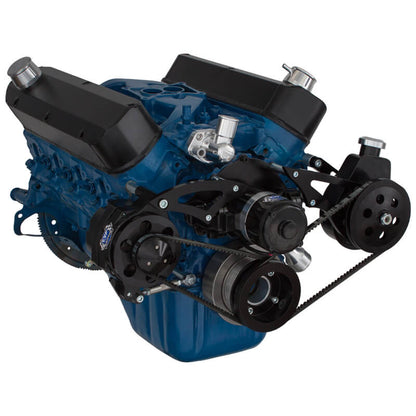

This CVF Racing V-belt system drives the alternator and power steering pump on a Ford 289, 302 or 351W small block that uses an electric water pump. It includes the crank, alternator and power steering pulleys along with both brackets.
The system is offered for 289 and 302 or 351W engines, for 3 bolt or 4 bolt factory and aftermarket dampers, and with a 5/8" keyway or 3/4" press fit power steering pulley.
Specifications:
- Belt type: V-belt
- Accessories: Alternator and power steering
- Water pump type: Electric (not included)
- Alternator position: Mid mount, passenger side
- Pulleys: 2 groove crank, 1 groove alternator
- Power steering pulley options: 5/8" keyway shaft or 3/4" press fit shaft
- Engine options: 289/302 or 351W
- Damper options: 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket
- Finish: Stealth Black
- Part number: B-302-PS-SYSTEM-EWP
Kit Includes:
- 2 groove crank pulley
- 1 groove alternator pulley
- 302/351W alternator bracket
- 302/351W power steering bracket
- Power steering pulley
- ALTFAN universal alternator fan
- Mounting bolts
Not Included: The power steering pump, water pump, alternator and damper are not included.
Application Notes:
- CVF offers an electric water pump, Saginaw power steering pump, alternator and billet thermostat housing separately.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is the CVF Racing B-302-PS-SYSTEM-EWP for?
It is a V-belt alternator and power steering drive for Ford 289, 302 and 351W small blocks that run an electric water pump.
What power steering pulley options are there?
The pulley is offered with a 5/8" keyway shaft bore or a 3/4" press fit shaft bore.
What is included?
The kit includes a 2 groove crank pulley, a 1 groove alternator pulley, alternator and power steering brackets, the power steering pulley, an ALTFAN fan and mounting bolts.
Are the pumps or alternator included?
No. The power steering pump, electric water pump, alternator and damper are sold separately.
