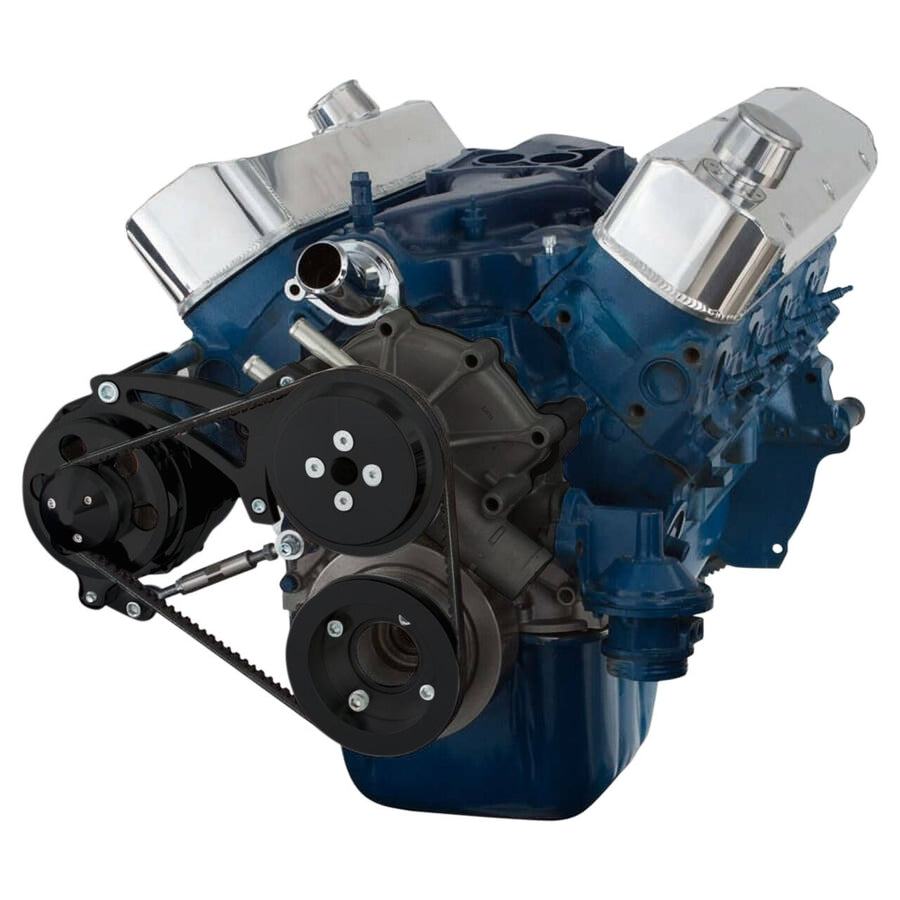

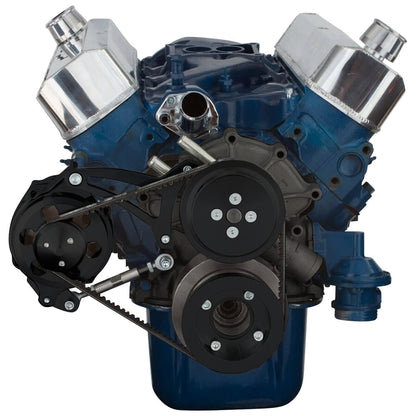

This CVF Racing V-belt system provides the pulleys, bracket and bolts for an alternator only Ford 289, 302 or 351W small block fitted with a shorty water pump that stands 4.5" tall. The alternator mounts mid height on the passenger side.
The system is offered for 289 and 302 or 351W engines and for 3 bolt or 4 bolt factory and aftermarket dampers.
Specifications:
- Belt type: V-belt
- Accessories: Alternator only
- Water pump: Shorty, 4.5" tall, standard rotation (not included)
- Alternator position: Mid mount, passenger side
- Pulleys: 1 groove water pump, crank and alternator
- Engine options: 289/302 or 351W
- Damper options: 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket
- Finish: Stealth Black
- Part number: B-302-SHORTY-ALT-SYSTEM
Kit Includes:
- 1 groove water pump pulley
- 1 groove crank pulley
- 1 groove alternator pulley
- 302/351W alternator bracket
- ALTFAN universal alternator fan
- Mounting bolts
Not Included: The alternator, balancer and water pump are not included.
Application Notes:
- CVF offers an as-cast or black short high flow aluminum water pump and an alternator separately.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
FAQ
What water pump is the CVF Racing B-302-SHORTY-ALT-SYSTEM built for?
It is built for a shorty water pump that is 4.5" tall.
What is included?
The system includes 1 groove water pump, crank and alternator pulleys, a 302/351W alternator bracket, an ALTFAN fan and mounting bolts.
Which engines and dampers are covered?
It is offered for 289 and 302 or 351W engines with 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket dampers.
Are the alternator and water pump included?
No. The alternator, balancer and water pump are sold separately.
