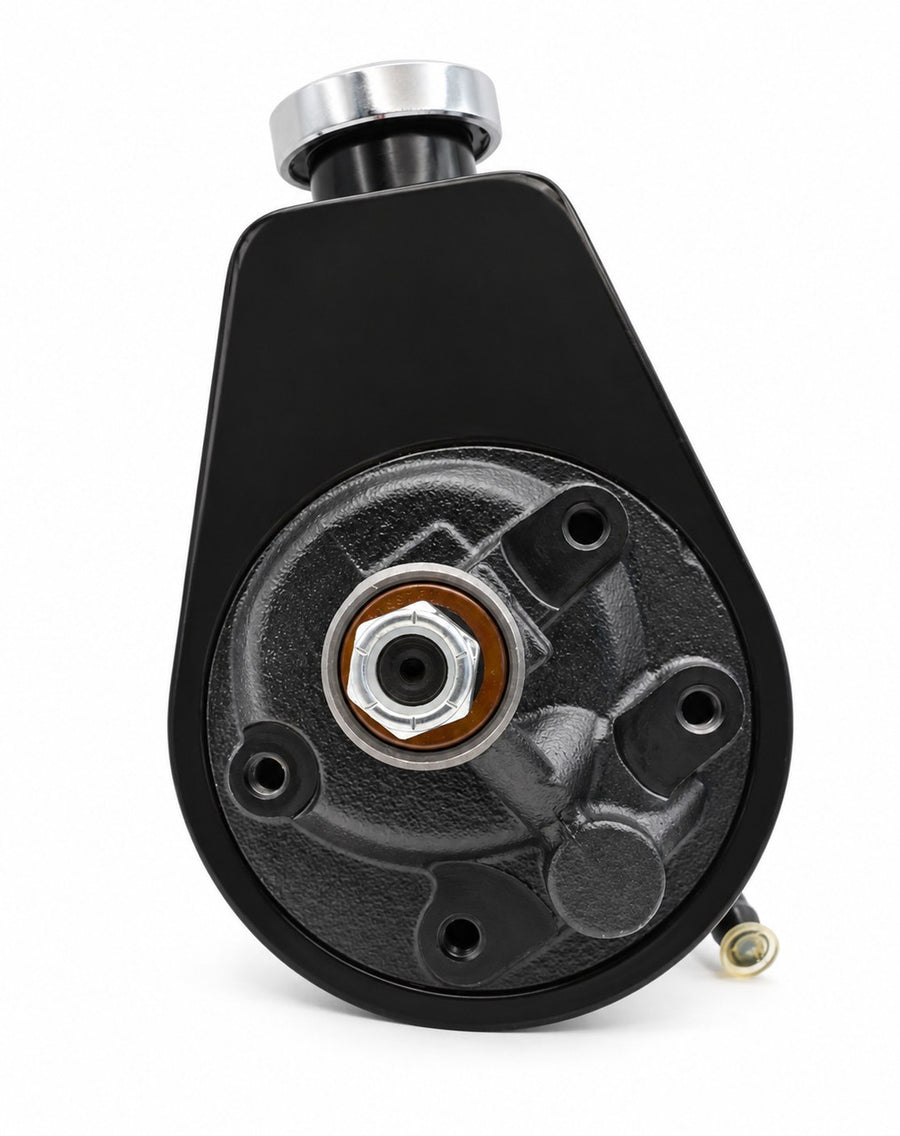

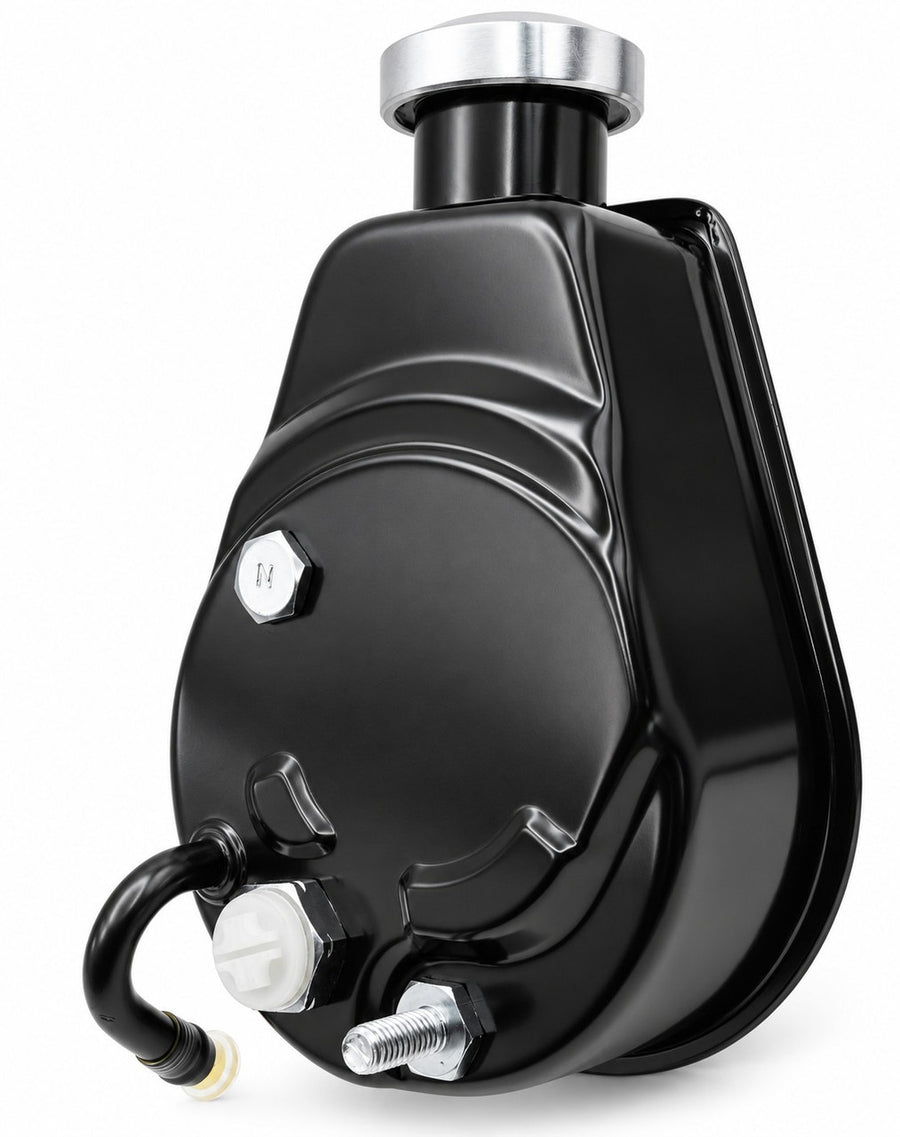

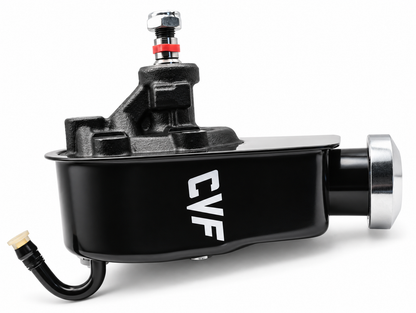

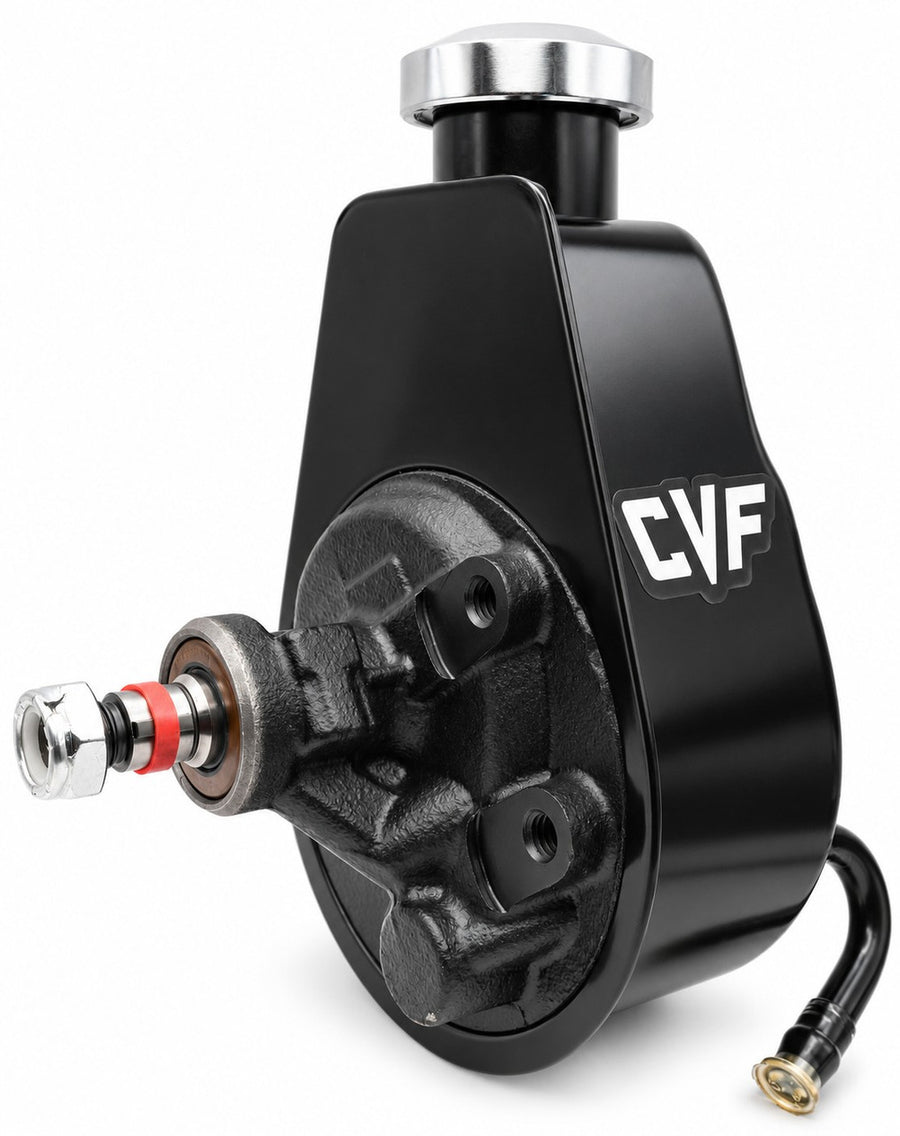

This CVF Racing Saginaw style power steering pump has a 5/8 in. keyway shaft and a black finish. It is factory set to 1,200 PSI for conventional power steering systems on classic cars, muscle cars, hot rods and custom builds.
CVF tests the pump in the USA and lists it as compatible with all CVF Racing Saginaw power steering brackets. The keyway shaft makes pulley installation and removal simpler than a press fit design.
Specifications:
- Pump type: Saginaw power steering pump
- Shaft: 5/8 in. keyway
- Operating pressure: 1,200 PSI (factory set)
- High pressure outlet: 5/8-18 inverted flare
- Low pressure return: 3/8 in. hose barb
- Finish: Black
- Tested in USA
- Part number: B-SAGINAW-PUMP-KEY
Kit Includes:
- One Saginaw power steering pump
Application Notes:
- Compatible with all CVF Racing Saginaw power steering brackets.
- For Mustang II rack and pinion steering, CVF recommends a pressure reduction kit to bring pump pressure from 1,200 PSI down to about 800 PSI. Too much pressure can make steering overly sensitive, especially at highway speed.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What pressure is the CVF B-SAGINAW-PUMP-KEY pump set to?
It is factory set to 1,200 PSI.
What are the line connections?
The high pressure outlet is a 5/8-18 inverted flare and the low pressure return is a 3/8 in. hose barb.
Will it work with a Mustang II rack and pinion?
Yes, but CVF recommends adding a pressure reduction kit to lower pressure to about 800 PSI, since 1,200 PSI can make Mustang II steering overly sensitive.
Which brackets does it fit?
CVF lists it as compatible with all CVF Racing Saginaw power steering brackets.
What shaft does it have?
It has a 5/8 in. keyway shaft, which uses a keyed pulley rather than a press fit pulley.
