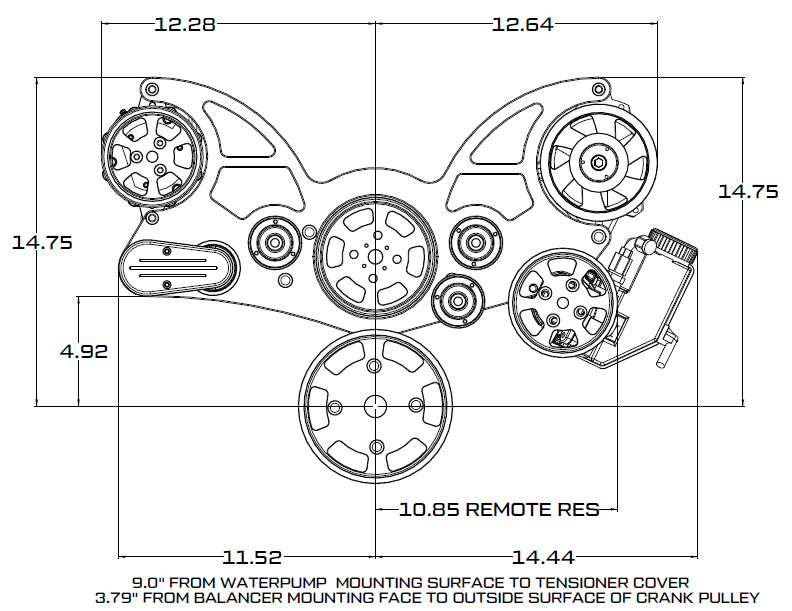

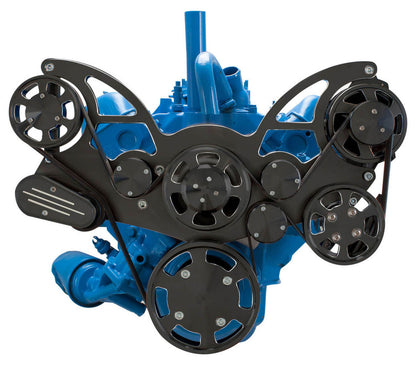

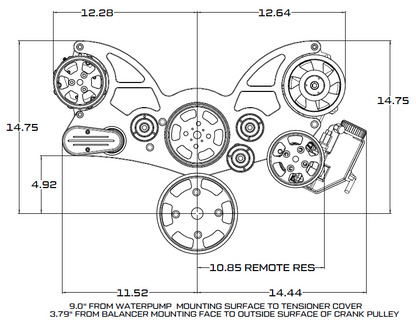

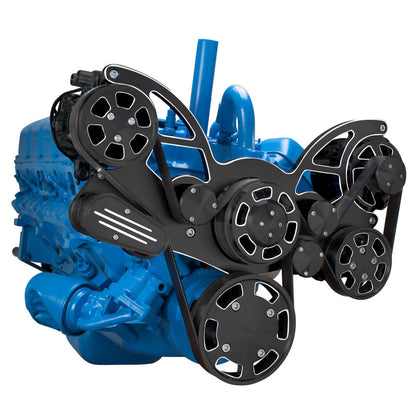

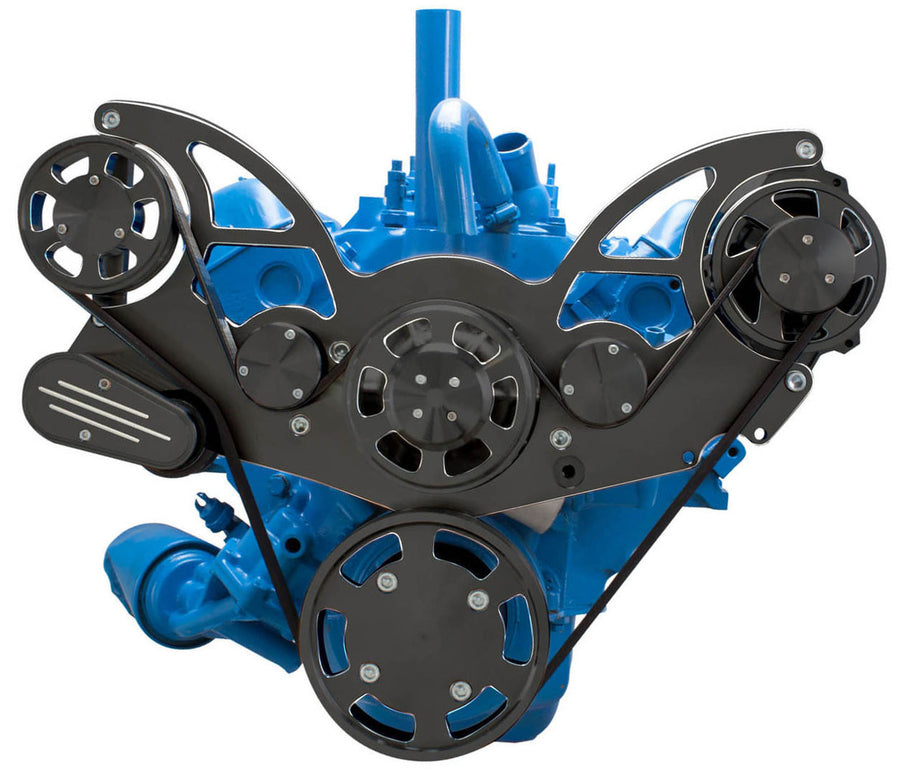

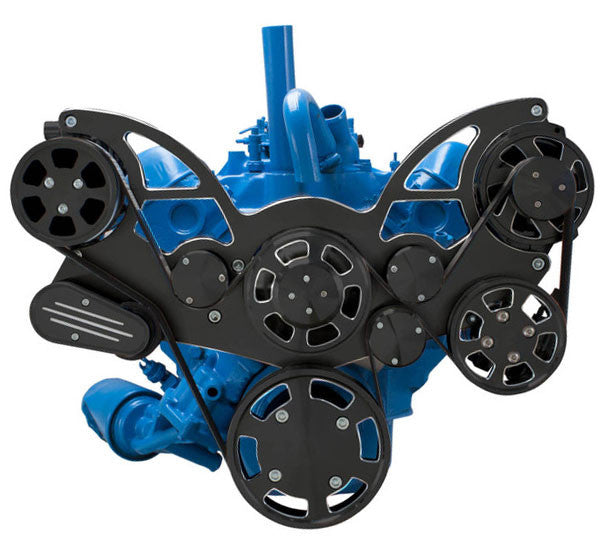

The CVF Racing Wraptor all-inclusive system replaces the V-belt drive on an AMC or Jeep 304, 360 or 401 V8 with a single 8-rib serpentine belt. A one-piece billet aluminum bracket carries a 1-wire CS130 alternator on the driver's side above a GM Type II power steering pump, and the full configuration adds a peanut style A/C compressor.
CVF specifies 8-rib pulleys for more belt grip and less slip than a 6-rib layout, and a spring-loaded tensioner keeps the belt tight under hard acceleration and deceleration while taking up stretch. The water pump is not part of this kit; CVF recommends an Edelbrock 8831 or 8832 pump. The kit is compatible with hydroboost.
This version has a Black Diamond finish and is offered in four accessory configurations.
Specifications:
- Engine: AMC and Jeep 304, 360 and 401 V8
- Mounting: Mid mount; alternator on the driver's side above the power steering pump
- Belt: 8-rib serpentine
- Water pump rotation: Standard (water pump not included)
- Alternator: 1-wire CS130, 160 amp standard; 300 amp available as an order selection
- Power steering: GM Type II pump; hydroboost compatible
- A/C compressor: Peanut style (7B10)
- Bracket: One-piece billet aluminum
- Balancer requirement: 1970 and later 4-bolt balancer
- Configurations: AC, Power Steering & Alternator; Power Steering and Alternator; AC and Alternator; Alternator Only
- Finish: Black Diamond
- Part number: BD-401-WRAPTOR
Included in Every Configuration:
- 1-wire CS130 alternator, black (amperage per order selection)
- Premium 8-rib serpentine belt
- Water pump pulley and cover
- Crank pulley
- Crank pulley spacer
- Alternator pulley and cover
- One-piece billet aluminum bracket
- Universal alternator fan
- Idler pulley(s) with covers
- Spring-loaded tensioner
Included by Configuration:
- Peanut style A/C compressor, plated, with compressor clutch cover (configurations with A/C)
- GM Type II power steering pump, powder coated aluminum, with reservoir and mounting bracket (configurations with power steering, per the power steering selection)
- Power steering pulley (configurations with power steering)
Not Included: The water pump and the power steering lines from the pump to the reservoir are not included. Attached reservoir styles and CVF power steering line kits are sold separately.
Application Notes:
- Requires a 1970 or later 4-bolt balancer.
- Works with either a mechanical or an electric cooling fan.
- When supplying your own accessories, CVF lists these requirements: a GM CS130 style alternator with 6 to 12 o'clock mounting and 6.6 inch bolt spacing, a GM Type II power steering pump, and a peanut style (7B10) compressor with an 8-rib clutch.
- Additional choices for this kit (water pump, alternator and power steering) are selected separately when ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engines does this AMC Wraptor system fit?
CVF builds it for AMC and Jeep 304, 360 and 401 V8 engines, and it requires a 1970 or later 4-bolt balancer.
Is a water pump included?
No. The water pump is not included. CVF recommends an Edelbrock 8831 or 8832 water pump, and the order asks which pump height (1968 to 1972 at 4.44 inches or 1973 to 1993 at 4.81 inches) is being used.
Does this kit work with hydroboost?
Yes. CVF lists the kit as compatible with hydroboost, and hydroboost units with remote or attached reservoirs are among the power steering choices.
Are power steering lines included?
No. The lines between the power steering pump and the reservoir are not included. CVF power steering line kits are sold separately.
What comes with every configuration?
Every configuration includes the CS130 alternator with pulley, cover and fan, 8-rib belt, water pump pulley and cover, crank pulley and spacer, one-piece billet bracket, idler pulleys and spring-loaded tensioner.
