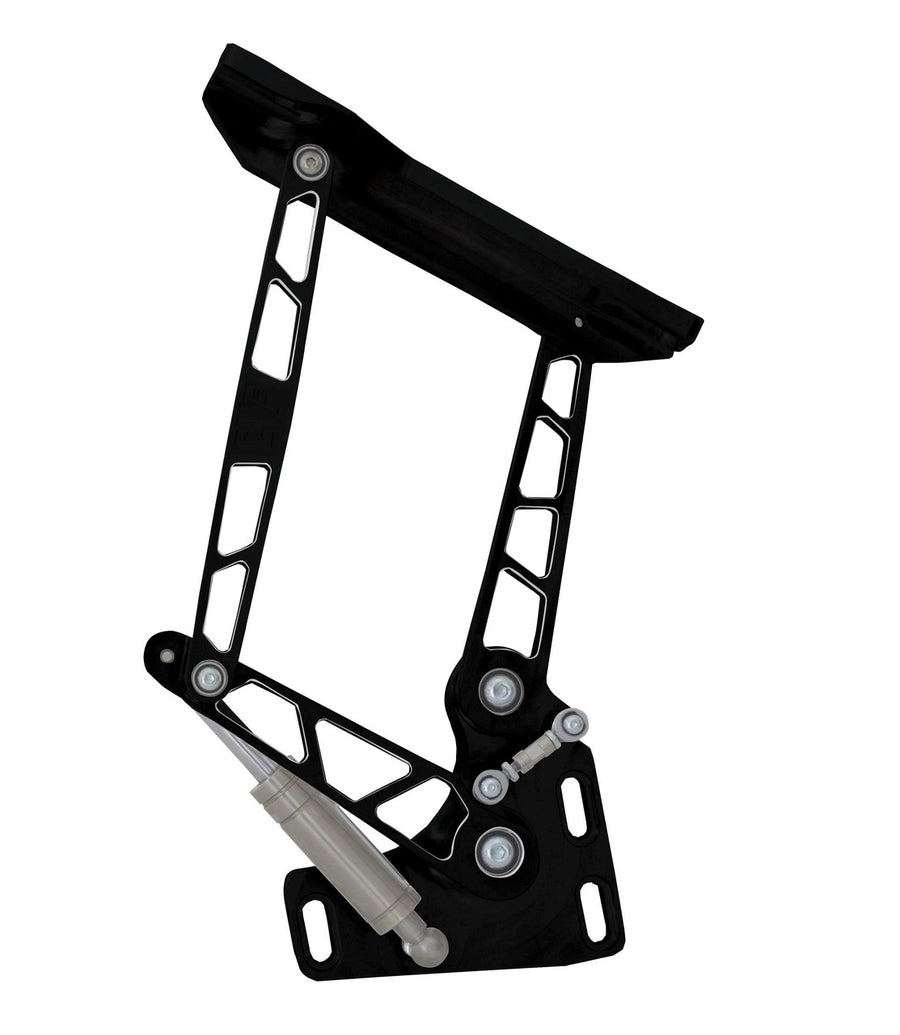

CVF Racing billet hood hinges replace the factory hood hinges on 1967 to 1972 Chevrolet C10 trucks. Each hinge body and arm is CNC machined from 6061-T6 billet aluminum, and a gas strut and sealed bearings are built into the assembly. CVF's patented 6-axis adjustment (U.S. Patent No. 11,002,047) is part of the hinge itself, so hood gaps can be set while the hood stays bolted in place.
This listing is the Black Diamond finish. The hinges are sold as a pair and offered in Steel Hood and Fiberglass Hood versions, and CVF backs them with a limited lifetime warranty.
Specifications:
- Type: Adjustable billet hood hinges, sold as a pair
- Material: 6061-T6 billet aluminum bodies and arms, CNC machined
- Adjustment: 6-axis, built into the hinge (U.S. Patent No. 11,002,047)
- Hood support: Gas struts
- Pivots: Sealed bearings
- Finish: Black Diamond
- Hood type options: Steel Hood or Fiberglass Hood
- Warranty: CVF limited lifetime warranty
- Part number: BD-HOOD-HINGE-KIT-72CK-SS
Application Notes:
- Select the Steel Hood or Fiberglass Hood option to match the hood on the vehicle.
- CVF offers billet tail light bezels for 1967 to 1972 C10 and billet side marker light bezels as optional add-ons with these hinges; they are sold separately and are not included.
Vehicle Applications:
- 1967 Chevrolet C10
- 1968 Chevrolet C10
- 1969 Chevrolet C10
- 1970 Chevrolet C10
- 1971 Chevrolet C10
- 1972 Chevrolet C10
Additional Application Note: CVF also describes these hinges as compatible with 1967 to 1972 Chevy C/K trucks and with the GMC versions of the C10 (including the GMC Custom, Super Custom, Sierra and Sierra Grande trims).
FAQ
What vehicles does CVF Racing BD-HOOD-HINGE-KIT-72CK-SS fit?
CVF lists BD-HOOD-HINGE-KIT-72CK-SS for 1967 to 1972 Chevrolet C10 trucks. The vehicle applications section lists each model year individually.
Do I need to choose a steel or fiberglass hood version of BD-HOOD-HINGE-KIT-72CK-SS?
Yes. The hinges are offered in a Steel Hood version and a Fiberglass Hood version, so choose the one that matches the hood installed on the vehicle.
How do the CVF Racing BD-HOOD-HINGE-KIT-72CK-SS hood hinges adjust?
The 6-axis adjustment is built into each hinge (U.S. Patent No. 11,002,047), which allows hood gaps to be set without removing the hood.
What finishes are available for the BD-HOOD-HINGE-KIT-72CK-SS hood hinges?
BD-HOOD-HINGE-KIT-72CK-SS is offered in the Black Diamond finish. CVF also makes this hinge in Stealth Black and a polished or C3 Ceramic Clear Coat version, sold as separate listings.
