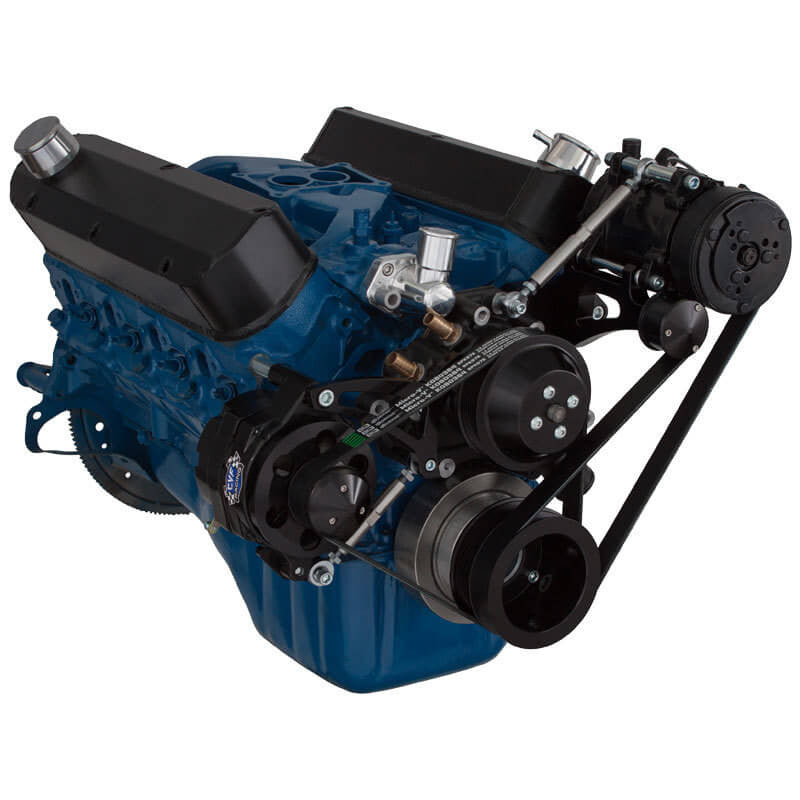

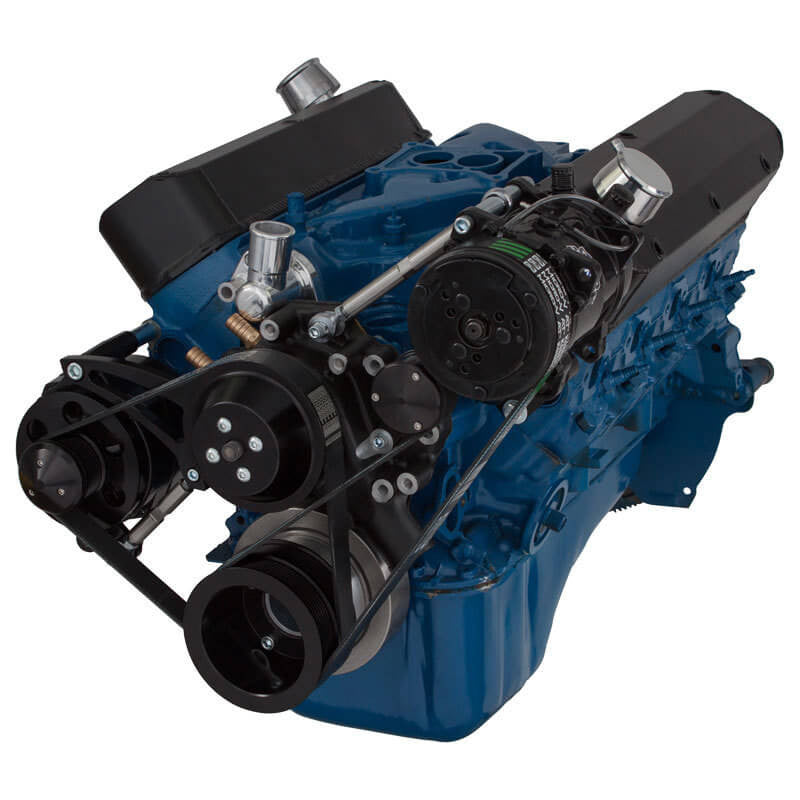

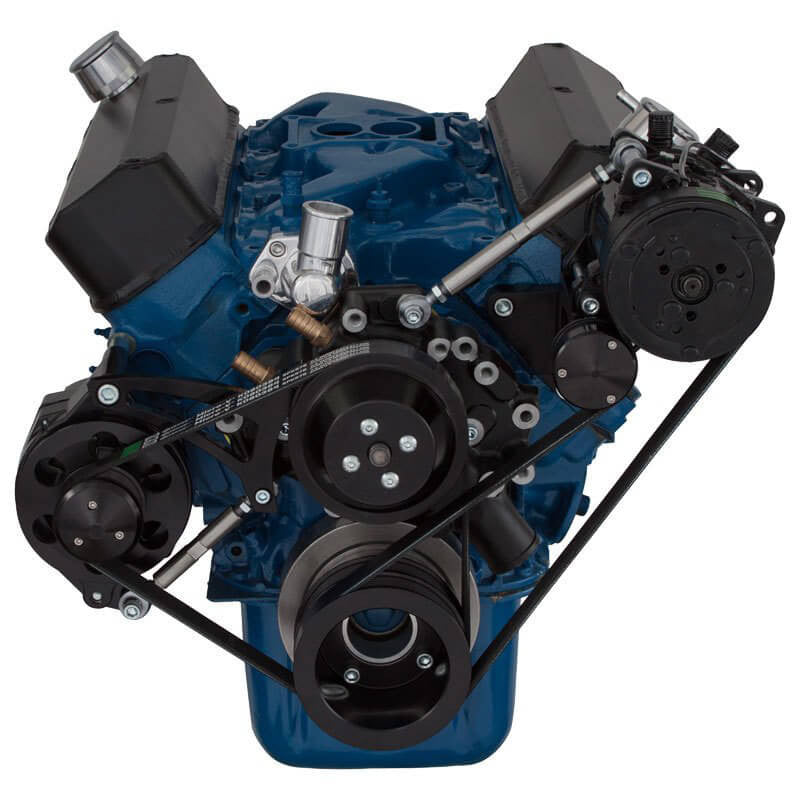

This CVF Racing BEAST kit converts the A/C compressor and alternator on a Ford 289, 302 or 351W small block to an 8-rib serpentine belt. It is designed around the original style clockwise rotation water pump, so the existing pump style can be kept.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. The alternator mounts mid height on the passenger side and the Sanden 508 style compressor mounts high on the driver's side.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: A/C and alternator (no power steering)
- Alternator position: Mid mount, passenger side
- A/C compressor position: High, driver's side
- Compressor: Sanden 508 style with 8-groove serpentine pulley
- Water pump: Mechanical, standard (clockwise) rotation
- Brackets: Billet aluminum
- Finish: Stealth Black (bright dip black anodized)
- Engine: Ford 289, 302 and 351W small block
- Part number: B-302-SERPENTINE-ACO
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Idler pulley
- Billet aluminum alternator bracket
- Billet aluminum A/C compressor bracket
- ALTFAN universal alternator fan
Not Included: The Sanden compressor, water pump, alternator and damper are not included.
Application Notes:
- Belts are a separate ordering choice.
- CVF offers a water pump, compressor, alternator and billet thermostat housing separately.
- Additional choices for this kit (engine, water pump, damper and belts) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is included in the CVF Racing B-302-SERPENTINE-ACO?
It includes water pump, crank, alternator and idler pulleys, billet aluminum alternator and A/C brackets, and an ALTFAN universal alternator fan.
Does this kit drive power steering?
No. This version is for the A/C compressor and alternator only.
What compressor is it built for?
It is built for a Sanden 508 style compressor with an 8-groove serpentine pulley.
Can I keep my clockwise rotation water pump?
Yes. The kit is designed around the standard clockwise rotation water pump.
