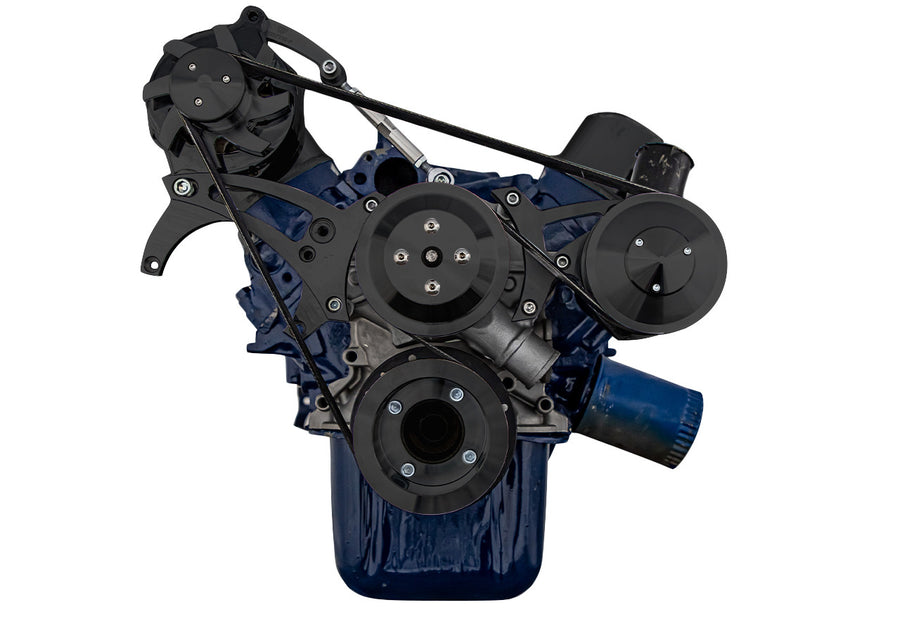

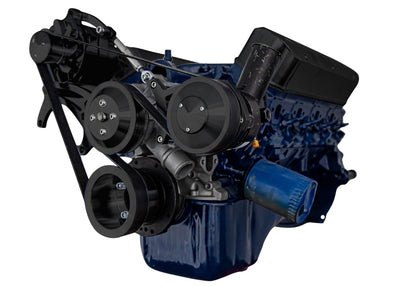

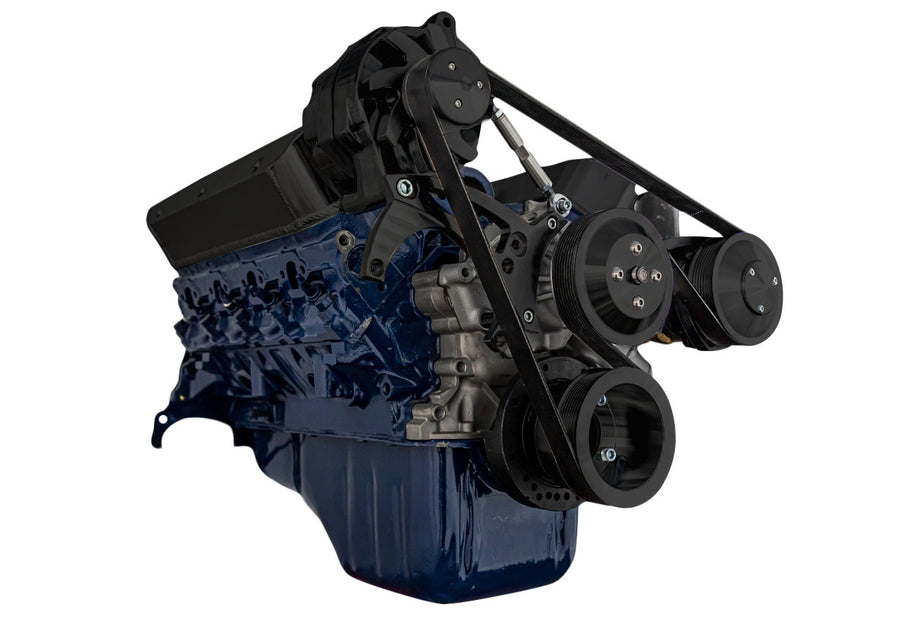

This CVF Racing BEAST kit converts a Ford 5.8L to an 8-rib serpentine drive for the alternator and power steering pump. It works with a reverse rotation water pump, and the alternator mounts high on the passenger side.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. Ford Mustang (1978 to 1995) and Saginaw keyway or press fit power steering pumps are offered.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: Alternator and power steering
- Alternator position: High, passenger side
- Power steering pump options: 1978 to 1995 Ford Mustang pump, Saginaw keyway or Saginaw press fit (not included)
- Water pump: Mechanical, reverse rotation (not included)
- Damper options: 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket
- Belt options: Without belts, or with premium 8-rib belts
- Finish: Stealth Black
- Engine: Ford 5.8L
- Part number: B-5.8L-SERPENTINE-PS-BP
Kit Includes:
- Water pump pulley
- Crank pulley
- Alternator pulley
- Power steering pulley
- Idler pulley
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- ALTFAN universal alternator fan
Not Included: The power steering pump, water pump, alternator and damper are not included.
Application Notes:
- CVF offers an alternator separately.
Additional Application Note: CVF lists this kit for the Ford 5.8L with a reverse rotation water pump and does not name specific vehicles. The 1978 to 1995 Ford Mustang reference applies to the power steering pump, not to vehicle fitment.
FAQ
What engine is the CVF Racing B-5.8L-SERPENTINE-PS-BP for?
It is for the Ford 5.8L with a reverse rotation water pump.
Which power steering pumps can it use?
It is offered for a 1978 to 1995 Ford Mustang power steering pump, a Saginaw keyway pump or a Saginaw press fit pump, chosen when ordering.
What is included?
It includes water pump, crank, alternator, power steering and idler pulleys, the alternator and power steering brackets, and an ALTFAN universal alternator fan.
Does it include A/C parts?
No. This version is for the alternator and power steering only.
