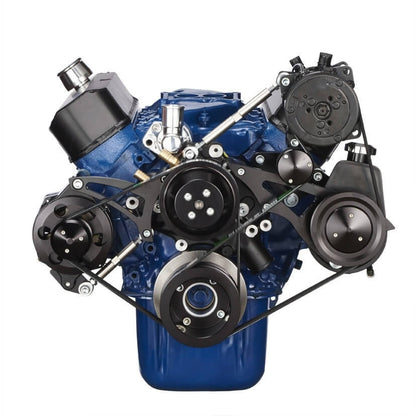

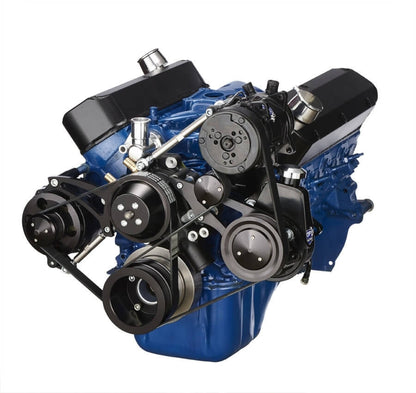

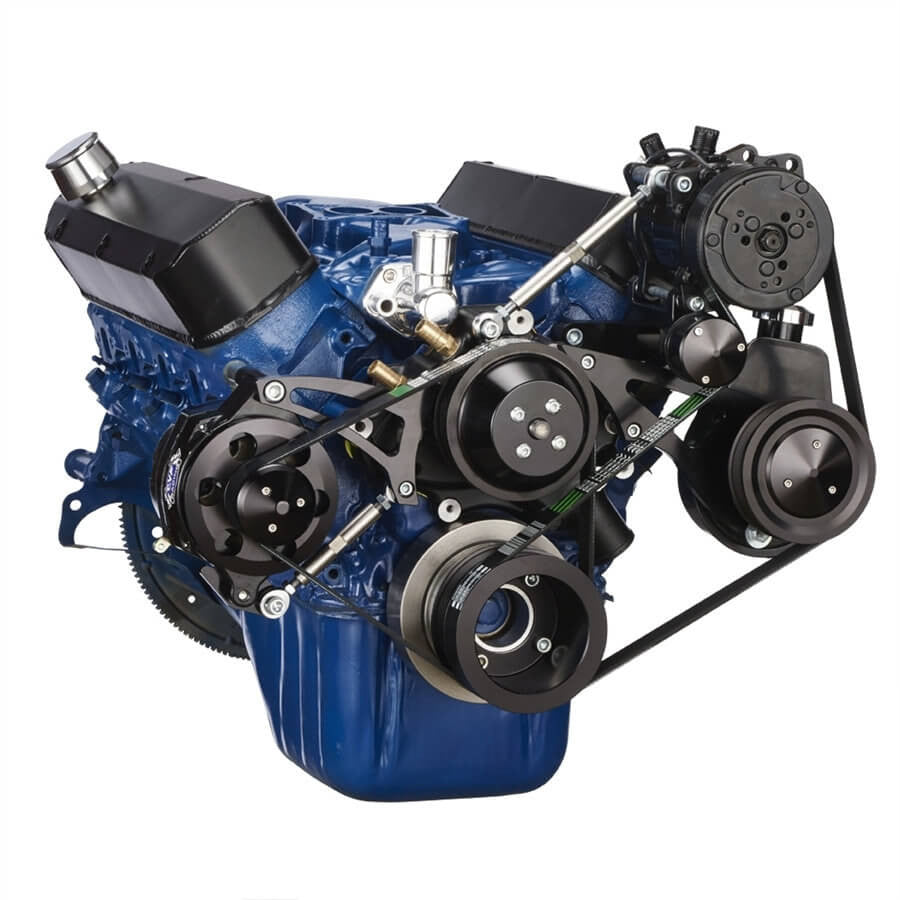

This CVF Racing BEAST kit converts a Ford 289, 302 or 351W small block to an 8-rib serpentine drive for the A/C compressor, alternator and power steering pump. It keeps the standard clockwise rotation water pump and is set up for the original style Ford power steering pump.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. The alternator mounts mid height on the passenger side and the Sanden 508 style compressor mounts high on the driver's side.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: A/C, alternator and power steering
- Alternator position: Mid mount, passenger side
- A/C compressor position: High, driver's side
- Compressor required: Sanden 508 style with 8-groove serpentine pulley
- Water pump: Mechanical, standard (clockwise) rotation
- Brackets: Billet aluminum
- Finish: Stealth Black (bright dip black anodized)
- Engine: Ford 289, 302 and 351W small block
- Part number: B-302-SERPENTINE-AC
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Power steering pulley (1 belt)
- Idler pulley
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- Billet aluminum A/C compressor bracket
- ALTFAN universal alternator fan
Not Included: The power steering pump, A/C compressor, water pump, alternator and damper are not included.
Application Notes:
- CVF calls for a Ford power steering pump with the steel reservoir, not the later plastic reservoir pump.
- Requires a Sanden 508 style compressor with an 8-groove serpentine pulley.
- Belts are a separate ordering choice.
- CVF offers a water pump, compressor, power steering pump, alternator and billet thermostat housing separately.
- Additional choices for this kit (engine, damper, water pump, power steering pump and belts) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does the CVF Racing B-302-SERPENTINE-AC include?
It includes water pump, crank, alternator, power steering and idler pulleys, billet aluminum alternator, power steering and A/C brackets, and an ALTFAN universal alternator fan.
Do I need a reverse rotation water pump?
No. This kit is designed to keep the standard clockwise rotation water pump.
Which A/C compressor does it require?
It requires a Sanden 508 style compressor with an 8-groove serpentine pulley.
Are the pumps, compressor or alternator included?
No. The power steering pump, compressor, water pump, alternator and damper are all sold separately.
