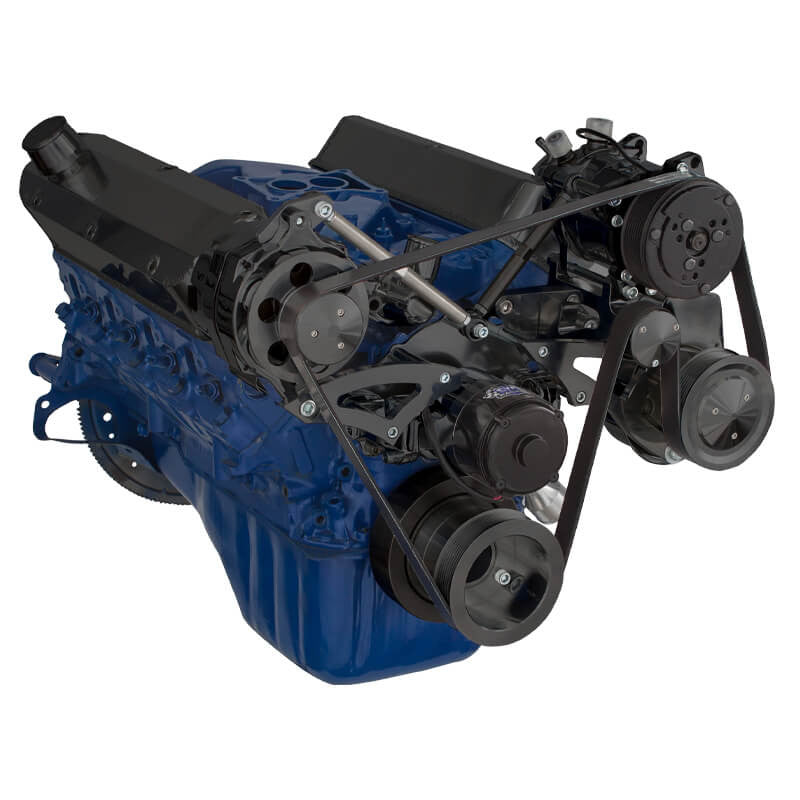

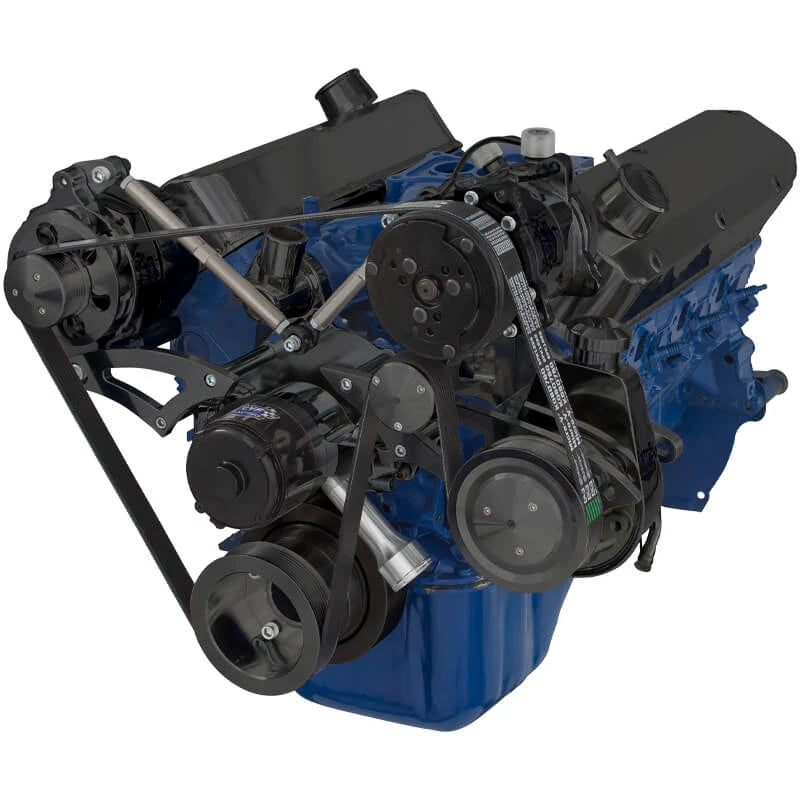

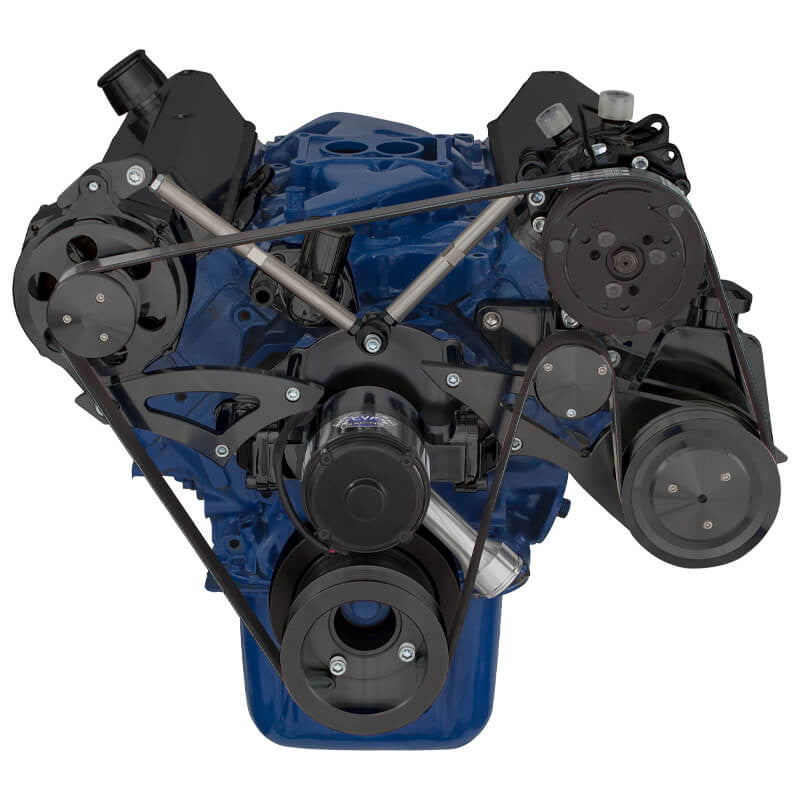

This CVF Racing BEAST kit puts the A/C compressor, alternator and power steering pump on an 8-rib serpentine belt for a Ford 289, 302 or 351W small block that uses an electric water pump. It is built for a Saginaw P series power steering pump and a Sanden 508 style compressor.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. The alternator mounts mid height on the passenger side and the compressor mounts high on the driver's side.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: A/C, alternator and power steering
- Water pump type: Electric (not included)
- Power steering pump required: Saginaw P series
- Compressor required: Sanden 508 style with 8-groove serpentine pulley
- Alternator position: Mid mount, passenger side
- A/C compressor position: High, driver's side
- Brackets: Billet aluminum
- Finish: Stealth Black
- Engine: Ford 289, 302 and 351W small block
- Part number: B-302-SERPENTINE-AC-EWP
Kit Includes:
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Power steering pulley (1 belt)
- Idler pulley
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- Billet aluminum A/C compressor bracket
- ALTFAN universal alternator fan
Not Included: The power steering pump, A/C compressor, water pump, alternator and damper are not included.
Application Notes:
- Requires a Saginaw P series power steering pump.
- Requires a Sanden 508 style compressor with an 8-groove serpentine pulley.
- Belts are a separate ordering choice.
- CVF offers an electric water pump, compressor, Saginaw pump, alternator and billet thermostat housing separately.
- Additional choices for this kit (damper, engine, power steering pump and belts) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Who is the CVF Racing B-302-SERPENTINE-AC-EWP for?
It is for Ford 289, 302 and 351W small blocks that run an electric water pump and need A/C, alternator and power steering on a serpentine belt.
Which power steering pump does it use?
It uses a Saginaw P series pump, with keyway or press fit shaft chosen when ordering.
What is in the kit?
The kit includes crank, alternator, power steering and idler pulleys, billet alternator, power steering and A/C brackets, and an ALTFAN fan.
Is the water pump included?
No. The electric water pump, compressor, power steering pump, alternator and damper are sold separately.
