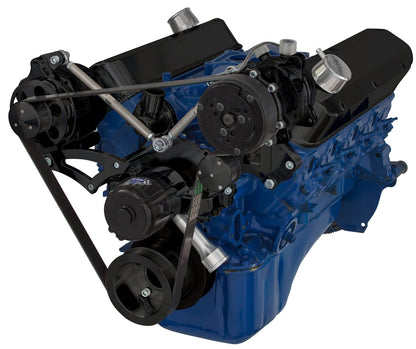

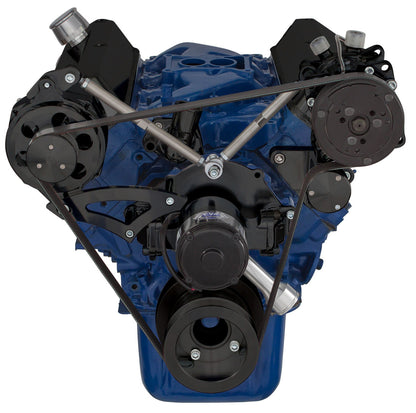

This CVF Racing BEAST kit runs the A/C compressor and alternator on an 8-rib serpentine belt for a Ford 289, 302 or 351W small block with an electric water pump. It is set up for a Sanden 508 style compressor.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. The kit is offered for 289 and 302 or 351W engines, for 3 bolt or 4 bolt factory and aftermarket dampers, and with or without belts.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: A/C and alternator
- Water pump type: Electric (not included)
- Compressor required: Sanden 508 style with 8-groove serpentine pulley
- Alternator position: Mid mount, passenger side
- A/C compressor position: High, driver's side
- Engine options: 289/302 or 351W
- Damper options: 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket
- Belt options: Without belts, or with premium 8-rib belts
- Finish: Stealth Black
- Part number: B-302-SERPENTINE-ACO-EWP
Kit Includes:
- Crank pulley (1 belt)
- Alternator pulley (1 belt)
- Idler pulley
- Billet aluminum alternator bracket
- Billet aluminum A/C compressor bracket
- ALTFAN universal alternator fan
Not Included: The A/C compressor, water pump, alternator and damper are not included.
Application Notes:
- Requires a Sanden 508 style compressor with an 8-groove serpentine pulley.
- CVF offers an electric water pump, compressor, alternator and billet thermostat housing separately.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is the CVF Racing B-302-SERPENTINE-ACO-EWP for?
It converts the A/C compressor and alternator to an 8-rib serpentine belt on a Ford 289, 302 or 351W small block running an electric water pump.
What is included?
The kit includes crank, alternator and idler pulleys, billet alternator and A/C brackets, and an ALTFAN universal alternator fan.
Can I order it with belts?
Yes. It is offered with premium 8-rib belts or without belts.
Which compressor does it need?
It needs a Sanden 508 style compressor with an 8-groove serpentine pulley.
