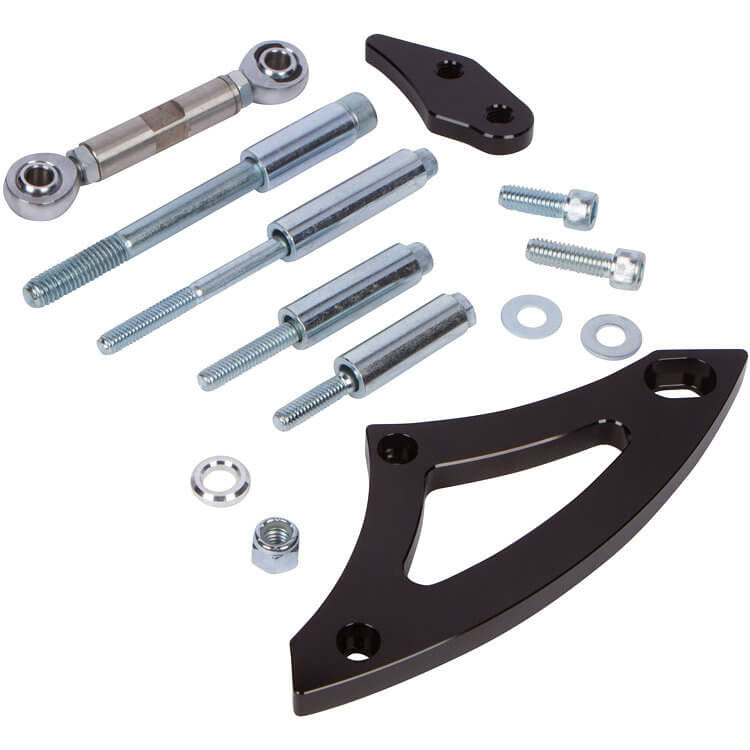

This CVF Racing bracket mounts the alternator mid height on a Ford 289 or 302 small block that runs an electric water pump. It is meant for V-belt drives and works with OEM or CVF Racing pulleys.
To match the CVF engine photo, CVF pairs it with crank pulley SBFS1CR for 4 bolt dampers or SBFE1CR-S for 3 bolt dampers, plus alternator pulley SBF1ALT.
Specifications:
- Product type: Alternator bracket
- Alternator position: Mid mount, passenger side
- Water pump type: Electric
- Belt type: V-belt
- Pulleys: OEM or CVF Racing
- Finish: Stealth Black
- Engine: Ford 289 and 302 small block
- Part number: B-302-ALTBRKT-EWP
Kit Includes:
- One alternator bracket
Not Included: Pulleys, alternator and electric water pump are sold separately.
Application Notes:
- Matching CVF pulleys: SBFS1CR (4 bolt) or SBFE1CR-S (3 bolt) crank pulley and SBF1ALT alternator pulley.
Additional Application Note: CVF lists this for 289 and 302 engines in 1964 to 1969 Ford passenger cars and 1964 to 1976 Ford trucks. CVF does not name specific models, so confirm the water pump style and accessory layout before ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is the CVF Racing B-302-ALTBRKT-EWP designed for?
It mounts an alternator on a Ford 289 or 302 small block that uses an electric water pump with a V-belt drive.
Which pulleys complete the setup?
CVF pairs it with SBFS1CR for 4 bolt dampers or SBFE1CR-S for 3 bolt dampers, plus the SBF1ALT alternator pulley.
Is the alternator or water pump included?
No. This listing is the bracket only.
Can I use factory pulleys?
Yes. CVF states it is designed for OEM or CVF Racing pulleys.
