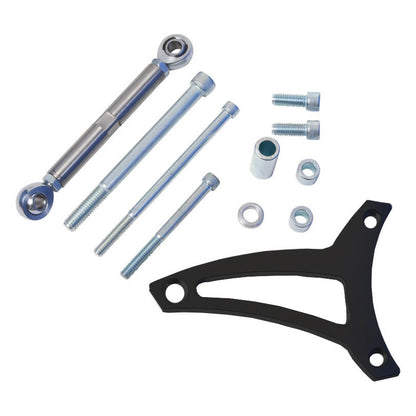

This CVF Racing mid-mount alternator bracket is made for Ford small blocks running a high flow Meziere 300 series electric water pump. It fits the Meziere WP311 and WP312 series only and does not fit lower flow Meziere pumps.
The bracket is offered for 289 and 302 or 351W engines and works with OEM or CVF Racing pulleys. For a V-belt drive CVF pairs it with crank pulley SBFS1CR for 4 bolt dampers or SBFE1CR-S for 3 bolt dampers, plus alternator pulley SBF1ALT.
Specifications:
- Product type: Alternator bracket
- Alternator position: Mid mount, passenger side
- Water pump: Meziere 55 GPM electric, 300 series
- Compatible Meziere pumps: WP311C, WP311S, WP311B, WP311R, WP311U, WP312C, WP312S, WP312B, WP312R, WP312U
- Belt type: V-belt
- Engine options: 289/302 or 351W
- Finish: Stealth Black
- Part number: B-302-ALTBRKT-EWP-55
Kit Includes:
- One alternator bracket
Not Included: The Meziere water pump, pulleys and alternator are not included.
Application Notes:
- Does not fit lower flow Meziere water pumps or models other than those listed.
- Matching CVF V-belt pulleys: SBFS1CR (4 bolt) or SBFE1CR-S (3 bolt) crank pulley and SBF1ALT alternator pulley.
- CVF offers a billet thermostat housing separately.
Additional Application Note: CVF lists this for 289 and 302 engines in 1964 to 1969 Ford passenger cars and 1964 to 1976 Ford trucks. CVF does not name specific models, so confirm the water pump style and accessory layout before ordering. The bracket is also offered in a 351W version.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which water pumps does the CVF Racing B-302-ALTBRKT-EWP-55 fit?
It fits Meziere WP311 and WP312 series 55 GPM electric water pumps, including the C, S, B, R and U versions of each.
Will it fit other Meziere pumps?
No. CVF states it does not fit lower flow Meziere pumps or any model not on its list.
Is it available for the 351W?
Yes. The bracket is offered for 289 and 302 engines or for the 351W.
Which pulleys complete a V-belt setup?
CVF pairs it with SBFS1CR or SBFE1CR-S crank pulleys and the SBF1ALT alternator pulley.
