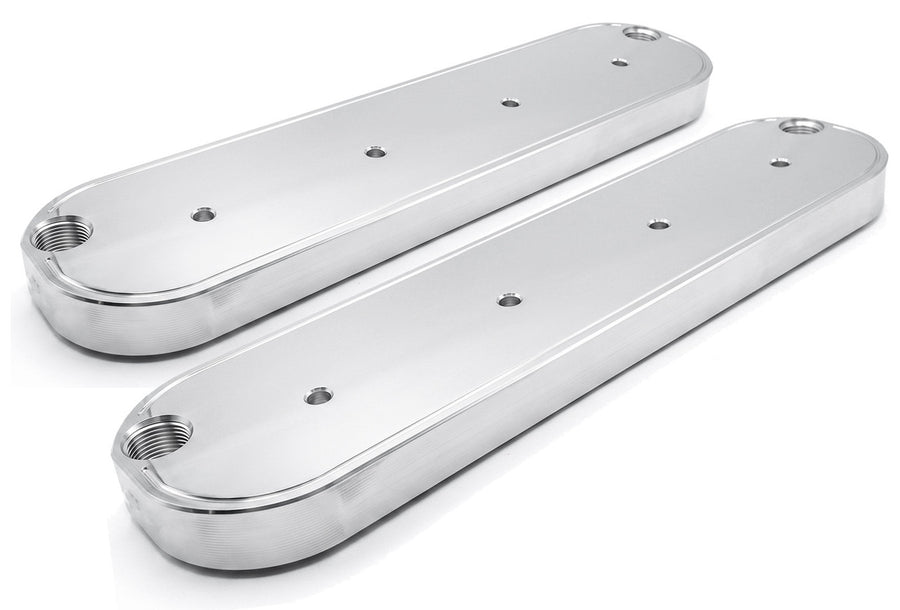

These extra short valve covers are CNC machined in the USA from solid 6061-T6 aluminum to fit all Gen III and Gen IV Chevrolet LS engines with the factory LS valve cover bolt pattern. The internal oil baffling is machined in place as part of the cover, so there are no baffle screws to loosen over time.
Each kit includes molded valve cover gaskets and stainless steel self-sealing socket head cap screws with captive Viton O-rings, so separate bolt grommets or washers are not needed. Each cover has dual -12 ORB ports with adapter fittings for crankcase ventilation, breathers or catch cans. The finish and the -10AN or -12AN fitting size are selected when ordering.
Specifications:
- Application: Gen III and Gen IV Chevrolet LS
- Material: Solid 6061-T6 billet aluminum, CNC machined
- Height: Extra short
- Baffling: Dual baffle design, machined in place
- Ports: Dual -12 ORB on each cover
- Fitting options: -10AN or -12AN to -12 ORB
- Finish options: Polished, Stealth Black, C3 Ceramic Clear Coat
- Origin: Made in the USA
- Warranty: CVF Racing Lifetime Warranty
- Part number: LSX-VC
Kit Includes:
- Pair of billet LS valve covers
- Valve cover gaskets
- Stainless steel self-sealing mounting hardware with captive Viton O-rings
- Choice of -10AN or -12AN to -12 ORB fittings
Application Notes:
- The adapter fittings are required on these covers because of their extra short height.
- Gen IV engines with factory coil-on-cover ignition require a CVF Racing LS coil relocation bracket, sold separately.
- CVF universal LS coil brackets in Polished, Stealth Black or C3 Ceramic Clear Coat are offered as optional add-ons, sold separately.
FAQ
Which engines do the LSX-VC billet valve covers fit?
They fit all Gen III and Gen IV Chevrolet LS engines with the factory LS valve cover bolt pattern.
Are gaskets included?
Yes, molded valve cover gaskets and stainless self-sealing mounting hardware are included.
Do I need a coil bracket?
Gen IV engines with factory coil-on-cover ignition require a CVF Racing LS coil relocation bracket, which is sold separately.
What breather fitting sizes are available?
Each kit includes your choice of -10AN or -12AN to -12 ORB fittings, which are required because of the extra short design.
What finishes are offered?
The covers are offered in Polished, Stealth Black and C3 Ceramic Clear Coat.
