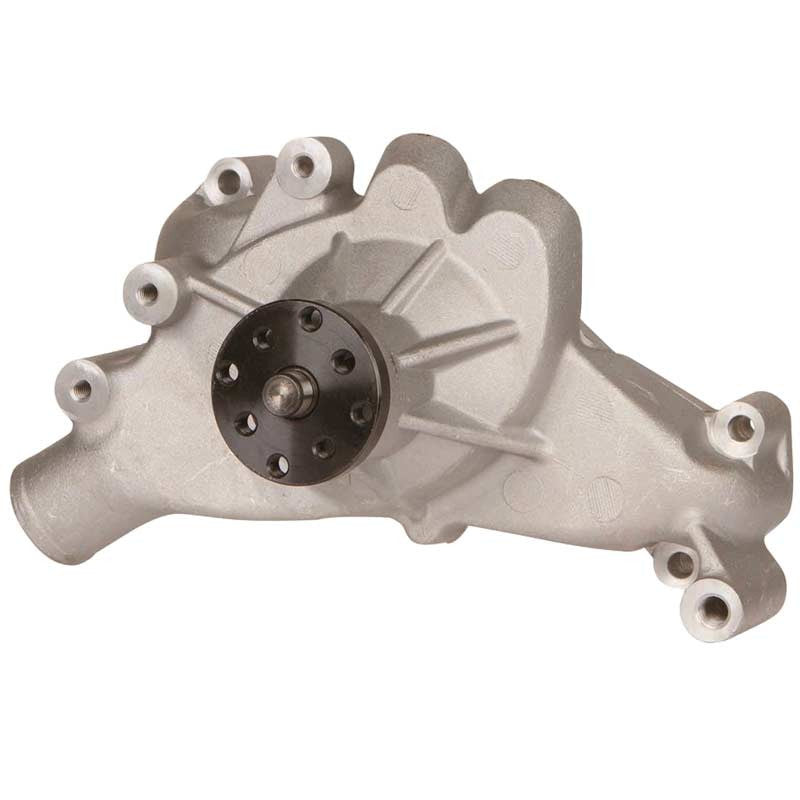

This high-flow aluminum mechanical water pump is built for Chevy Big Block 396, 427 and 454 V8 engines in a long-style configuration, with standard (clockwise) rotation and a Satin Cast finish. It works with properly configured factory-style accessory brackets and compatible CVF Racing serpentine systems.
Specifications:
- Application: Chevy Big Block 396, 427 and 454 V8
- Style: Long
- Rotation: Standard (clockwise)
- Hub height: 7-1/4 in.
- Pilot shaft diameter: 5/8 in.
- Inlet diameter: 1-3/4 in.
- Material: Aluminum
- Finish: Natural satin cast aluminum
- Warranty: CVF Racing Lifetime Warranty
- Part number: BBCL-WP
Application Notes:
- Designed for use with properly configured factory-style alternator and power steering brackets and compatible CVF Racing serpentine systems.
- CVF notes that comparable aftermarket long pumps have a published hub height of about 7-5/16 in., compared with 7-1/4 in. for this pump.
- Cross-references listed by CVF: PRW 1445401 and 1445411, Edelbrock Victor Series 88510, 8861 and 88513.
- CVF lists these as application references, not confirmed direct replacements; verify hub height, pilot diameter, inlet size and accessory drive compatibility before ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engines does the BBCL-WP water pump fit?
It is designed for Chevy Big Block 396, 427 and 454 V8 engines.
What is the hub height of this water pump?
The hub height is 7-1/4 in.
What rotation does this pump use?
It uses standard (clockwise) rotation.
Is this a direct replacement for the part numbers CVF lists?
No, CVF lists those numbers as application references only and recommends verifying dimensions and accessory drive compatibility before ordering.
