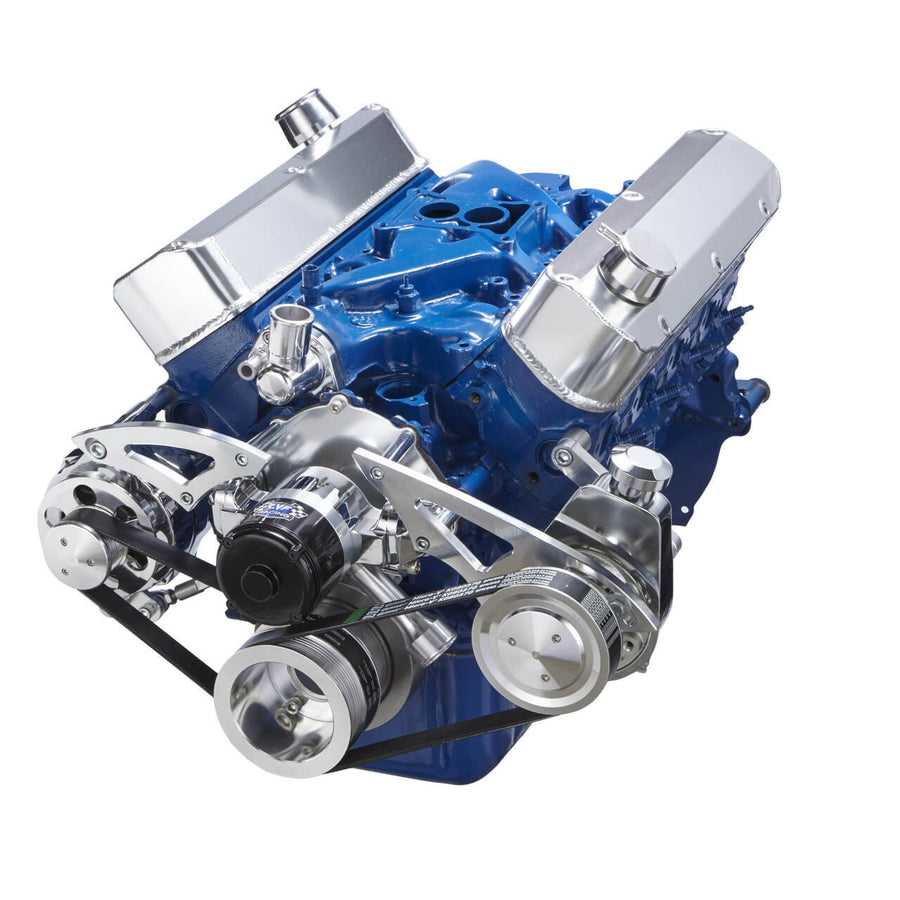

This CVF Racing BEAST kit puts the alternator and a Saginaw power steering pump on an 8-rib serpentine belt for a Ford 289, 302 or 351W small block that runs a high flow Meziere 55 GPM electric water pump. It is designed for Meziere WP311 and WP312 series pumps only and requires a pre-1994 timing cover.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. The kit is offered for 289 and 302 or 351W engines, for 3 bolt or 4 bolt factory and aftermarket dampers, and with or without belts.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: Alternator and power steering
- Water pump: Meziere 55 GPM electric (not included)
- Compatible Meziere pumps: WP311C, WP311S, WP311B, WP311R, WP311U, WP312C, WP312S, WP312B, WP312R, WP312U
- Power steering pump: Saginaw (not included)
- Timing cover: Pre-1994 required
- Engine options: 289/302 or 351W
- Damper options: 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket
- Belt options: Without belts, or with premium 8-rib belts
- Finish: Polished
- Part number: 302-SERPENTINE-PS-EWP-55
Kit Includes:
- Crank pulley (1 belt)
- Alternator pulley (1 belt)
- Power steering pulley
- Billet aluminum alternator bracket
- Billet power steering bracket
- ALTFAN universal alternator fan
Not Included: The Meziere water pump, power steering pump, alternator and damper are not included.
Application Notes:
- Requires a pre-1994 timing cover.
- Does not fit lower flow Meziere pumps or models other than those listed.
- CVF offers a Saginaw pump and alternator separately.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which water pumps does the CVF Racing 302-SERPENTINE-PS-EWP-55 fit?
It fits Meziere WP311 and WP312 series 55 GPM electric water pumps in the C, S, B, R and U versions.
Does it include power steering parts?
Yes. It includes a power steering pulley and a billet power steering bracket, while the Saginaw pump itself is sold separately.
Are there timing cover requirements?
Yes. CVF states the kit requires a pre-1994 timing cover.
Can I order it with belts?
Yes. It is offered with premium 8-rib belts or without belts.
