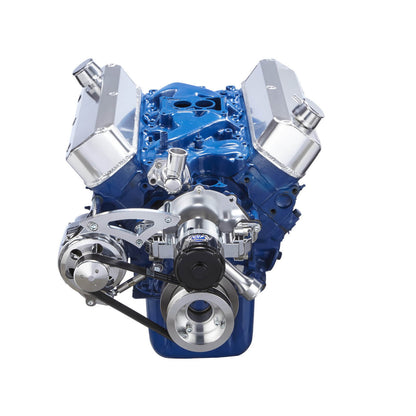

This CVF Racing BEAST kit is an alternator only 8-rib serpentine conversion for a Ford 289, 302 or 351W small block running a high flow Meziere 55 GPM electric water pump. It is designed to fit Meziere WP311 and WP312 series pumps only.
CVF states its BEAST 8-rib pulley design grips better, stretches the belt less and resists slipping compared with a 6-rib layout. The kit is offered for 289 and 302 or 351W engines, for 3 bolt or 4 bolt factory and aftermarket dampers, and with or without belts.
Specifications:
- Belt type: 8-rib serpentine
- Accessories: Alternator only
- Water pump: Meziere 55 GPM electric (not included)
- Compatible Meziere pumps: WP311C, WP311S, WP311B, WP311R, WP311U, WP312C, WP312S, WP312B, WP312R, WP312U
- Alternator position: Mid mount, passenger side
- Engine options: 289/302 or 351W
- Damper options: 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket
- Belt options: Without belts, or with premium 8-rib belts
- Finish: Polished
- Part number: 302-SERPENTINE-ALT-EWP-55
Kit Includes:
- Crank pulley (1 belt)
- Alternator pulley (1 belt)
- Billet aluminum alternator bracket
- ALTFAN universal alternator fan
Not Included: The Meziere water pump, alternator and damper are not included.
Application Notes:
- Does not fit lower flow Meziere pumps or models other than those listed.
- CVF offers an alternator separately.
- Additional choices for this kit (damper, engine and belts) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which water pumps does the CVF Racing 302-SERPENTINE-ALT-EWP-55 fit?
It fits Meziere WP311 and WP312 series 55 GPM electric water pumps in the C, S, B, R and U versions.
Will it fit a lower flow Meziere pump?
No. CVF states it does not fit lower flow Meziere pumps or unlisted models.
What is included?
The kit includes a crank pulley, an alternator pulley, a billet aluminum alternator bracket and an ALTFAN universal alternator fan.
Does it drive power steering or A/C?
No. This is an alternator only kit.
