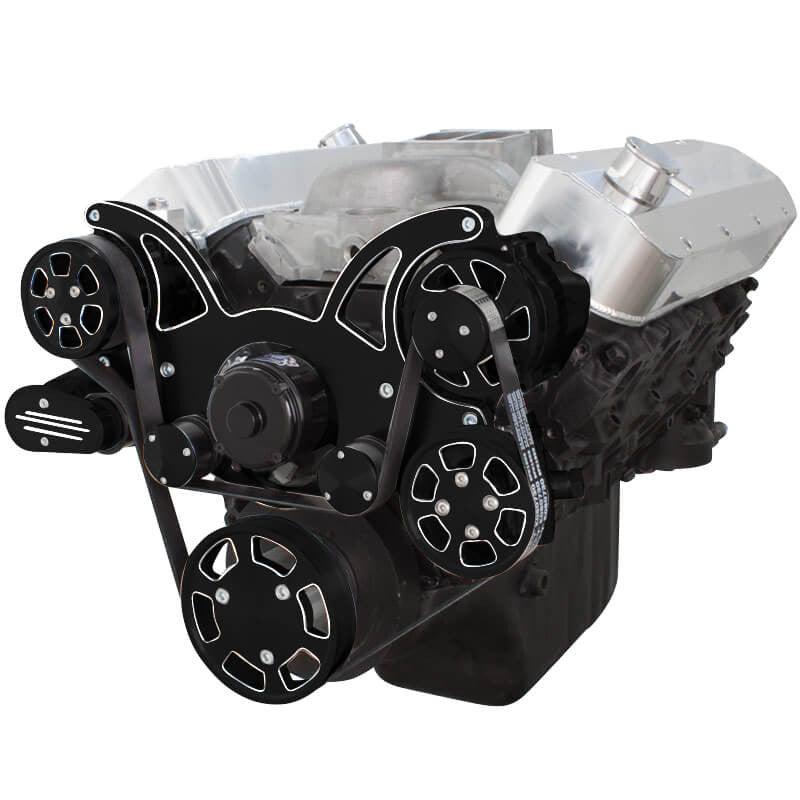

The CVF Racing Wraptor is an all-inclusive 8-rib serpentine system for the Big Block Chevy 396/427/454 with an electric water pump. It ships with the water pump, a 160 amp CS130 alternator, the belt, pulleys, a one-piece billet aluminum bracket and a spring-loaded tensioner, and adds a GM Type II power steering pump and Peanut style AC compressor in the configurations that use them. The alternator rides on the driver side above the power steering pump. This listing has a Black Diamond finish.
Specifications:
- Engine: Big Block Chevy 396, 427 and 454
- System: All-inclusive Wraptor 8-rib serpentine, mid-mount
- Water pump: Electric, 35 GPM (included)
- Alternator: 160 amp 1-wire CS130 (300 amp option offered)
- Power steering pump: GM Type II (power steering configurations)
- AC compressor: Peanut style (AC configurations)
- Tensioner: Spring loaded
- Finish: Black Diamond
- Configurations: AC, power steering and alternator; power steering and alternator; AC and alternator; alternator only
- Part number: BD-454-WRAPTOR-EWP
Included in Every Configuration:
- 35 GPM electric water pump
- 160 amp 1-wire CS130 alternator
- 8-rib serpentine belt
- Crankshaft pulley
- Crankshaft pulley spacer
- Alternator pulley and cover
- One-piece billet aluminum bracket
- Universal alternator fan
- Spring-loaded belt tensioner
- Mounting hardware
Included by Configuration:
- AC compressor and compressor clutch cover (AC configurations)
- GM Type II power steering pump, power steering pulley, and remote mount reservoir with bracket (power steering configurations)
Application Notes:
- Places the alternator on the driver side above the power steering pump.
- Works with a mechanical or electric fuel pump.
- Works with standard or tall deck engines.
- Power steering lines from the pump to the reservoir are not included.
- Compatible with Hydroboost.
- CVF lists compatibility with Big Block 396, 402, 427, 454, 502, 572 and 632 engines.
- If ordering without accessories, CVF requires: Alternator: GM CS130 style with 6 to 12 o'clock mounting and 6.6" bolt spacing; Power steering pump: GM Type II; AC compressor: Peanut style (7B10) with 8-rib clutch.
- Choices for alternator amperage and power steering pump style are selected separately when ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is included in every configuration of the CVF Racing BD-454-WRAPTOR-EWP?
Every configuration includes 35 GPM electric water pump, 160 amp 1-wire CS130 alternator, 8-rib serpentine belt, crankshaft pulley, crankshaft pulley spacer, alternator pulley and cover, one-piece billet aluminum bracket, universal alternator fan, spring-loaded belt tensioner and mounting hardware.
Are the power steering lines included?
No. The power steering lines from the pump to the reservoir are not included.
Will the Wraptor fit a tall deck big block?
Yes. CVF states it works with either standard or tall deck engines.
Does it need an electric fan?
Check fan clearance with CVF before ordering.
What finish is BD-454-WRAPTOR-EWP?
This listing (BD-454-WRAPTOR-EWP) is the Black Diamond version. CVF also lists the same system in Polished or C3 Ceramic Clear Coat (454-WRAPTOR-EWP), Stealth Black (B-454-WRAPTOR-EWP), Polished or C3 Ceramic Clear Coat with Carbon Fiber Inserts (CF-454-WRAPTOR-EWP), Stealth Black with Carbon Fiber Inserts (CF-B-454-WRAPTOR-EWP) and Black Diamond with Carbon Fiber Inserts (CF-BD-454-WRAPTOR-EWP).
