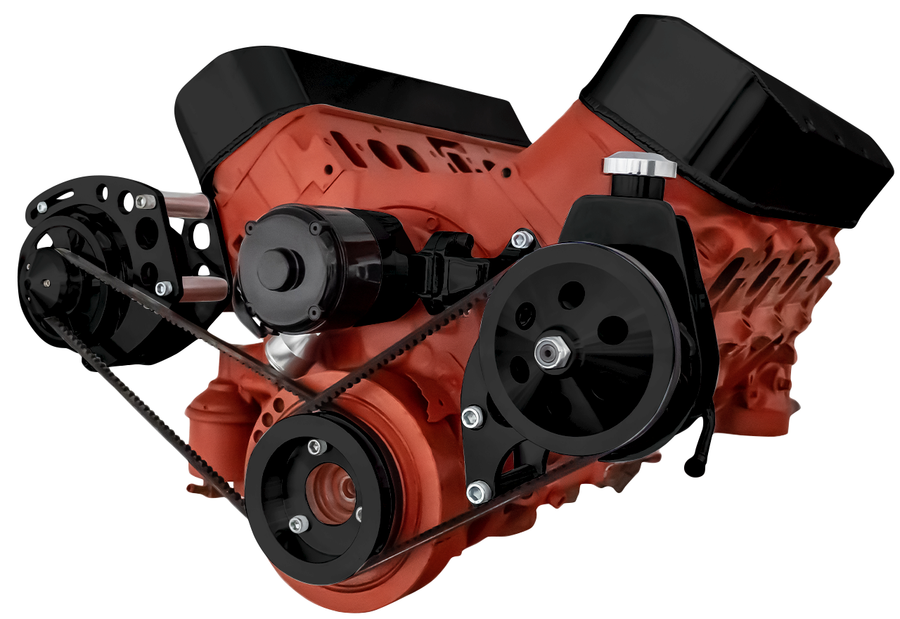

This CVF Racing V-belt system adds power steering and an alternator to a Big Block Chevy 396/427/454 that runs an electric water pump. A Saginaw P series power steering pump mounts low on the driver side and the alternator sits mid-height on the passenger side. Pulley spacing matches short water pump pulleys. The brackets and pulleys have a Stealth Black finish.
Specifications:
- Engine: Big Block Chevy 396, 427 and 454 CID
- Drive: V-belt
- Water pump: Electric (not included)
- Pulley spacing: Short water pump
- Power steering: Saginaw P series pump, low driver side (pump not included)
- Alternator position: Mid mount, passenger side
- Finish: Stealth Black
- Part number: B-454-PS-SYSTEM-C-EWP-S
Kit Includes:
- Crankshaft pulley, 2 groove
- Alternator pulley, 1 groove
- Passenger side alternator bracket
- Driver side power steering bracket
- Power steering pulley (keyway style)
- Universal alternator fan (ALTFAN)
- Mounting hardware
Not Included: Belts, power steering pump, alternator and water pump.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Is the CVF Racing B-454-PS-SYSTEM-C-EWP-S for an electric water pump?
Yes. It is built for big block Chevy engines with an electric water pump and uses short water pump pulley spacing.
Which power steering pump does it use?
The system mounts a Saginaw P series power steering pump low on the driver side and includes a keyway style power steering pulley.
What is not included?
Belts, the power steering pump, the alternator and the water pump are not included.
Is there a version with the other pulley spacing?
Yes. CVF offers the same system with long water pump pulley spacing as 454-PS-SYSTEM-C-EWP-L.
What finish is B-454-PS-SYSTEM-C-EWP-S?
This listing (B-454-PS-SYSTEM-C-EWP-S) is the Stealth Black version. CVF also lists the same system in Polished (454-PS-SYSTEM-C-EWP-S).
