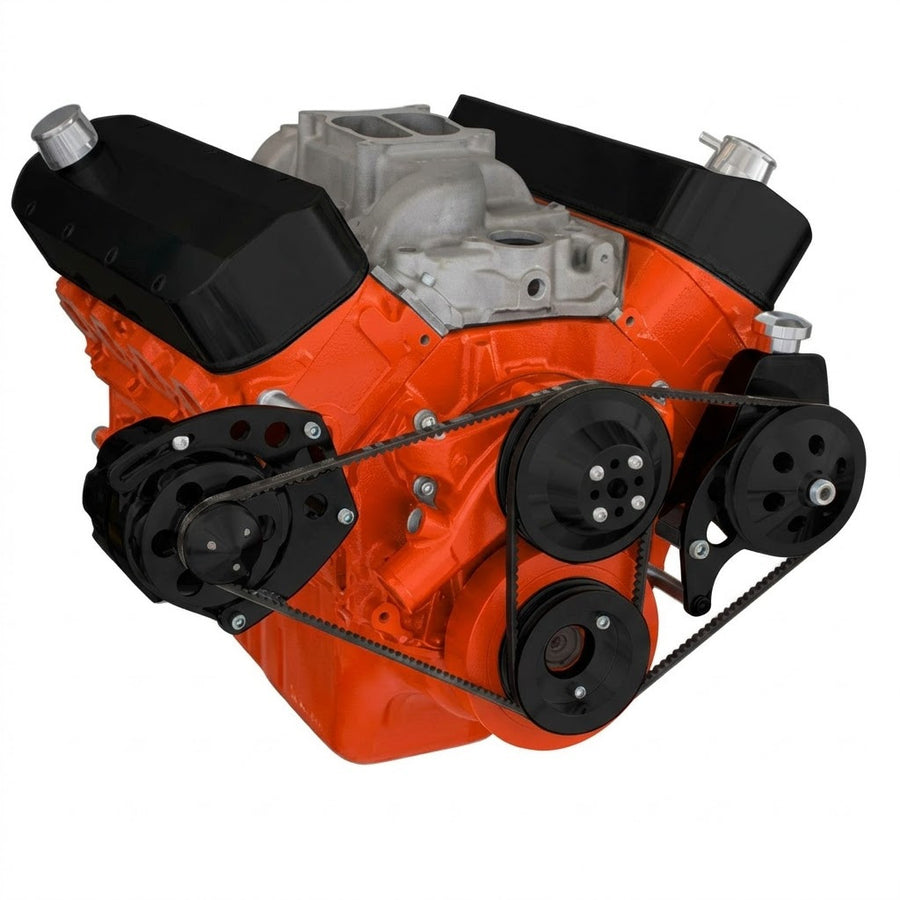

This CVF Racing V-belt system supplies the pulleys and brackets for power steering and an alternator on a Big Block Chevy 396/427/454 with a mechanical short water pump. The Saginaw P series power steering pump mounts low on the driver side and the alternator mounts on the passenger side cylinder head. Everything has a Stealth Black finish.
Specifications:
- Engine: Big Block Chevy 396, 427 and 454 CID
- Drive: V-belt
- Water pump: Mechanical, standard Chevy short water pump (not included)
- Power steering: Saginaw P series pump, low driver side (pump not included)
- Alternator position: Passenger side cylinder head
- Finish: Stealth Black
- Part number: B-454-PS-SYSTEM-C-SWP
Kit Includes:
- Water pump pulley, 2 groove
- Crankshaft pulley, 2 groove
- Alternator pulley, 1 groove
- Passenger side alternator bracket
- Driver side power steering bracket
- Power steering pulley (keyway style)
- Universal alternator fan (ALTFAN)
- Mounting hardware
Not Included: Belts, power steering pump, alternator and water pump.
Application Notes:
- 1970 and newer vehicles may require the 454-ALTBRKT-RELO alternator relocation bracket, sold separately.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is included with the CVF Racing B-454-PS-SYSTEM-C-SWP?
It includes 2-groove water pump and crankshaft pulleys, a 1-groove alternator pulley, a passenger side alternator bracket, a driver side power steering bracket, a keyway style power steering pulley, a universal alternator fan and all hardware.
Which water pump does it fit?
It is designed for the standard Chevy mechanical short water pump on a 396, 427 or 454 big block.
What parts must be purchased separately?
Belts, the power steering pump, the alternator and the water pump are not included.
Will a 1970 or newer vehicle need the relocation bracket?
CVF notes that 1970 and newer vehicles may require the 454-ALTBRKT-RELO bracket, sold separately.
What finish is B-454-PS-SYSTEM-C-SWP?
This listing (B-454-PS-SYSTEM-C-SWP) is the Stealth Black version. CVF also lists the same system in Polished (454-PS-SYSTEM-C-SWP).
